Description

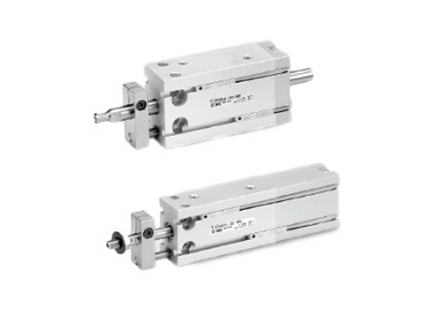

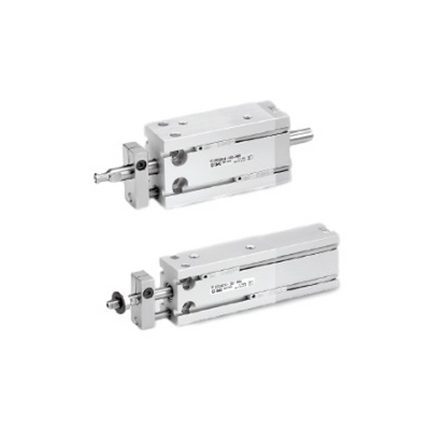

SMC ZCDUKC20-30D — ZCUK Series, Free mounting cylinder for vacuum. This code specifies 20mm bore, 30mm stroke, without auto switch.
Specification — ZCDUKC20-30D
| Bore |
20mm |
| Port thread |
M5X0.8,Rc1/8 |
| Stroke |
30mm |
| Auto switch |
Without auto switch |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Cushion |
Rubber bumper both ends |
| Min. operating pressure |
0.11 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Lubrication |
Non-lube |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Weight |
300 g |
Specification values above are for model code ZCDUKC20-30D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC ZCUK series
- Space-saving cylinder that can be directly installed on both sides of the cylinder
- With auto switch (CDU series: CDU, CDUW, CDUK, CDUKW, CDU-A, ZCDUK)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
