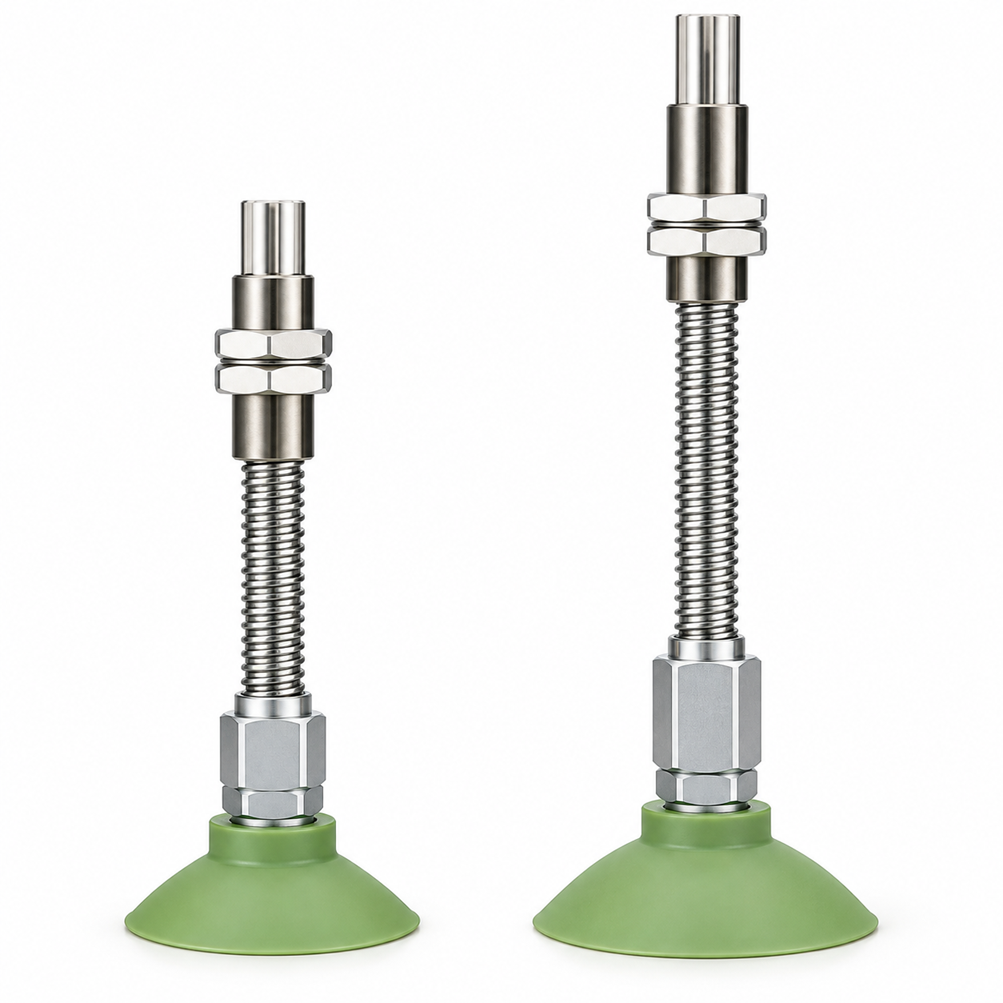

SMC ZP3M-T50RFSJB50-MF — ZP3M series vacuum pad, ø50 bowl type with an anti-slip surface, mounted on a 50 mm buffer. The bowl shape suits curved and domed surfaces that a flat pad cannot seal against.
Specification — ZP3M-T50RFSJB50-MF
| Series |
ZP3M (vacuum pad, anti-slip type) |
| Pad diameter |
ø50 mm |
| Pad form |
Bowl |
| Surface |
Anti-slip |
| Buffer |
Fitted, 50 mm stroke |
| Product weight |
236 g |
Bowl shape and anti-slip surface
A flat pad only works on a flat face. The bowl form seats against curved and domed work — bottles, pressed panels, castings — where a flat pad would leak at the edge. The anti-slip surface then stops the part rotating or sliding under acceleration, which is what usually goes wrong when a curved part is lifted quickly.
What the buffer does
The buffer is a sprung shaft behind the pad. The head can descend past the contact point without driving the pad into the work, and the 50 mm stroke covers height variation across a stack or between parts without re-teaching the position.
Typical use
Handling bottles, containers, pressed panels and castings — anywhere the gripping surface is not flat.
Ordering
Order by the full code ZP3M-T50RFSJB50-MF. Pad diameter, form, surface, mounting thread and buffer stroke are all in the code — buffer strokes of 10, 30 and 50 mm are available. Replacement pads are ordered separately from the buffer assembly. The ZP3E bellows type covers uneven-height flat work.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
