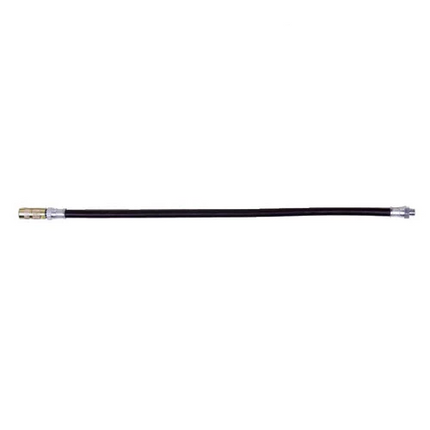

UMETA High pressure hose 2 SN 340/GL

  • VendorUmeta

Description

UMETA  High pressure hose 2 SN 340/GL

Ø 11 mm according to DIN 1283

This fabric hose out of synthetic rubber with double steel wire braid is also available without nozzle or already assembled with a UMETA nozzle, in the length of 300 mm or 500 mm.

Standard with connection thread M 10 x 1 or G 1/8.
1/8-NPT upon request.

Please be aware of smallest allowable bending radius.
ATTENTION: NEVER FOLD!



inner Ø mm: 4.8 mm
outer Ø mm: 12.5 mm
burst pressure: 1,650 bar / 23,925 PSI
testing pressure: 800 bar / 11,600 PSI
operating pressure max.: 415 bar / 6,000 PSI
temperature range: -40°C - +100°C
allowed bending radius max.: 90 mm
inner layer: polyethylene
reinforcement: double steel wire bread
outer layer: synthetic rubber
Product form

UMETA  High pressure hose 2 SN 340/GL Ø 11 mm according to DIN 1283 This fabric hose out of synthetic... Read more

SKU: 236-0058

$12.19 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    UMETA  High pressure hose 2 SN 340/GL

    Ø 11 mm according to DIN 1283

    This fabric hose out of synthetic rubber with double steel wire braid is also available without nozzle or already assembled with a UMETA nozzle, in the length of 300 mm or 500 mm.

    Standard with connection thread M 10 x 1 or G 1/8.
    1/8-NPT upon request.

    Please be aware of smallest allowable bending radius.
    ATTENTION: NEVER FOLD!



    inner Ø mm: 4.8 mm
    outer Ø mm: 12.5 mm
    burst pressure: 1,650 bar / 23,925 PSI
    testing pressure: 800 bar / 11,600 PSI
    operating pressure max.: 415 bar / 6,000 PSI
    temperature range: -40°C - +100°C
    allowed bending radius max.: 90 mm
    inner layer: polyethylene
    reinforcement: double steel wire bread
    outer layer: synthetic rubber
