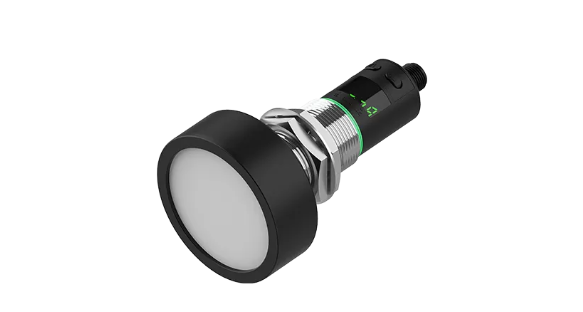

Autonics Ultrasonic Sensor, UTRCM30-8MDB-D-IL2

Description

Sensing distance 600 to 8000 mm
Blind zone 0 to 590 mm
Foreground suppression 600 to 1800 mm
Max. setting zone 8000 mm
Transducer frequency 80 kHz
Switching frequency ≥ 3 Hz
Response time ≤ 300 ms
Hysteresis 100mm
Standard sensing target 500 × 500 mm
Resolution ≥ 0.180 mm
Power voltage 12 - 30 VDCspecialstring (ripple P-P: ≤ 10 %)
Current consumption ≤ 80 mA (no load)
Digital output Push-pull
Analog output [voltage output] DC 0 - 10 V, [current output] DC 4 - 20 mA
Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection
Insulation resistance ≥ 50 MΩ (500 VDCspecialstring megger)
Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min
Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours
Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation)
Protection structure IP66, IP67 (IEC standard)
Connection Connector models
Connector type M12 5-pin plug connector
Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass
Unit weight (packaged weight) ≈210g(≈330g)
Product form

Sensing distance 600 to 8000 mm Blind zone 0 to 590 mm Foreground suppression 600 to 1800 mm Max. setting... Read more

SKU: UTRCM30-8MDB-D-IL2

$565.15 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    Sensing distance 600 to 8000 mm
    Blind zone 0 to 590 mm
    Foreground suppression 600 to 1800 mm
    Max. setting zone 8000 mm
    Transducer frequency 80 kHz
    Switching frequency ≥ 3 Hz
    Response time ≤ 300 ms
    Hysteresis 100mm
    Standard sensing target 500 × 500 mm
    Resolution ≥ 0.180 mm
    Power voltage 12 - 30 VDCspecialstring (ripple P-P: ≤ 10 %)
    Current consumption ≤ 80 mA (no load)
    Digital output Push-pull
    Analog output [voltage output] DC 0 - 10 V, [current output] DC 4 - 20 mA
    Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection
    Insulation resistance ≥ 50 MΩ (500 VDCspecialstring megger)
    Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min
    Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours
    Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
    Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation)
    Protection structure IP66, IP67 (IEC standard)
    Connection Connector models
    Connector type M12 5-pin plug connector
    Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass
    Unit weight (packaged weight) ≈210g(≈330g)
