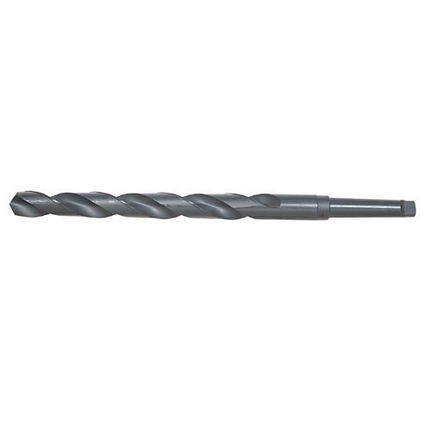

YG-1 Morse Taper Shank Drills HSS Long Taper Shank Drill, L=350mm

Description

YG-1  MORSE TAPER SHANK DRILLS HSS long Taper Shank Drill, L=350mm

 Feature

  • Surface treatment : Steam Tempered(Black Oxide Finish)Application : Drilling deep holes in steels, cast steels alloyed and non-alloyed, grey cast iron, malleable cast iron, graphite.



Brand/EDP No. OD SDr L1 L2
MORSE TAPER SHANK DRILLS  D1202140 14 27 225 350
MORSE TAPER SHANK DRILLS  D1202145 14.5 27 225 350
MORSE TAPER SHANK DRILLS  D1202150 15 27 225 350
MORSE TAPER SHANK DRILLS  D1202155 15.5 27 225 350
MORSE TAPER SHANK DRILLS  D1202160 16 27 225 350
MORSE TAPER SHANK DRILLS  D1202165 16.5 27 225 350
MORSE TAPER SHANK DRILLS  D1202170 17 27 225 350
MORSE TAPER SHANK DRILLS  D1202175 17.5 27 225 350
MORSE TAPER SHANK DRILLS  D1202180 18 27 225 350
MORSE TAPER SHANK DRILLS  D1202185 18.5 27 225 350
MORSE TAPER SHANK DRILLS  D1202190 19 27 225 350
MORSE TAPER SHANK DRILLS  D1202195 19.5 27 225 350
MORSE TAPER SHANK DRILLS  D1202200 20 27 225 350
MORSE TAPER SHANK DRILLS  D1202205 20.5 27 225 350
MORSE TAPER SHANK DRILLS  D1202210 21 27 225 350
MORSE TAPER SHANK DRILLS  D1202215 21.5 27 225 350
MORSE TAPER SHANK DRILLS  D1202220 22 27 225 350
MORSE TAPER SHANK DRILLS  D1202230 23 27 225 350
MORSE TAPER SHANK DRILLS  D1202235 23.5 27 200 350
MORSE TAPER SHANK DRILLS  D1202240 24 27 200 350
MORSE TAPER SHANK DRILLS  D1202245 24.5 27 200 350
MORSE TAPER SHANK DRILLS  D1202250 25 27 200 350
MORSE TAPER SHANK DRILLS  D1202255 25.5 27 200 350
MORSE TAPER SHANK DRILLS  D1202260 26 27 200 350
MORSE TAPER SHANK DRILLS  D1202270 27 27 200 350
MORSE TAPER SHANK DRILLS  D1202280 28 27 200 350
MORSE TAPER SHANK DRILLS  D1202285 28.5 27 200 350
MORSE TAPER SHANK DRILLS  D1202290 29 27 200 350
MORSE TAPER SHANK DRILLS  D1202295 29.5 27 200 350
MORSE TAPER SHANK DRILLS  D1202300 30 27 200 350
MORSE TAPER SHANK DRILLS  D1202305 30.5 27 200 350
MORSE TAPER SHANK DRILLS  D1202310 31 27 200 350
MORSE TAPER SHANK DRILLS  D1202315 31.5 27 200 350
MORSE TAPER SHANK DRILLS  D1202320 32 27 200 350







Product form

YG-1  MORSE TAPER SHANK DRILLS HSS long Taper Shank Drill, L=350mm  Feature Surface treatment : Steam Tempered(Black Oxide Finish)Application :... Read more

SKU: 300-7590

$50.80 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      YG-1  MORSE TAPER SHANK DRILLS HSS long Taper Shank Drill, L=350mm

       Feature

      • Surface treatment : Steam Tempered(Black Oxide Finish)Application : Drilling deep holes in steels, cast steels alloyed and non-alloyed, grey cast iron, malleable cast iron, graphite.



      Brand/EDP No. OD SDr L1 L2
      MORSE TAPER SHANK DRILLS  D1202140 14 27 225 350
      MORSE TAPER SHANK DRILLS  D1202145 14.5 27 225 350
      MORSE TAPER SHANK DRILLS  D1202150 15 27 225 350
      MORSE TAPER SHANK DRILLS  D1202155 15.5 27 225 350
      MORSE TAPER SHANK DRILLS  D1202160 16 27 225 350
      MORSE TAPER SHANK DRILLS  D1202165 16.5 27 225 350
      MORSE TAPER SHANK DRILLS  D1202170 17 27 225 350
      MORSE TAPER SHANK DRILLS  D1202175 17.5 27 225 350
      MORSE TAPER SHANK DRILLS  D1202180 18 27 225 350
      MORSE TAPER SHANK DRILLS  D1202185 18.5 27 225 350
      MORSE TAPER SHANK DRILLS  D1202190 19 27 225 350
      MORSE TAPER SHANK DRILLS  D1202195 19.5 27 225 350
      MORSE TAPER SHANK DRILLS  D1202200 20 27 225 350
      MORSE TAPER SHANK DRILLS  D1202205 20.5 27 225 350
      MORSE TAPER SHANK DRILLS  D1202210 21 27 225 350
      MORSE TAPER SHANK DRILLS  D1202215 21.5 27 225 350
      MORSE TAPER SHANK DRILLS  D1202220 22 27 225 350
      MORSE TAPER SHANK DRILLS  D1202230 23 27 225 350
      MORSE TAPER SHANK DRILLS  D1202235 23.5 27 200 350
      MORSE TAPER SHANK DRILLS  D1202240 24 27 200 350
      MORSE TAPER SHANK DRILLS  D1202245 24.5 27 200 350
      MORSE TAPER SHANK DRILLS  D1202250 25 27 200 350
      MORSE TAPER SHANK DRILLS  D1202255 25.5 27 200 350
      MORSE TAPER SHANK DRILLS  D1202260 26 27 200 350
      MORSE TAPER SHANK DRILLS  D1202270 27 27 200 350
      MORSE TAPER SHANK DRILLS  D1202280 28 27 200 350
      MORSE TAPER SHANK DRILLS  D1202285 28.5 27 200 350
      MORSE TAPER SHANK DRILLS  D1202290 29 27 200 350
      MORSE TAPER SHANK DRILLS  D1202295 29.5 27 200 350
      MORSE TAPER SHANK DRILLS  D1202300 30 27 200 350
      MORSE TAPER SHANK DRILLS  D1202305 30.5 27 200 350
      MORSE TAPER SHANK DRILLS  D1202310 31 27 200 350
      MORSE TAPER SHANK DRILLS  D1202315 31.5 27 200 350
      MORSE TAPER SHANK DRILLS  D1202320 32 27 200 350
