3.peaks Daiya-Type Pliers (DS-115/DS-150)

Description

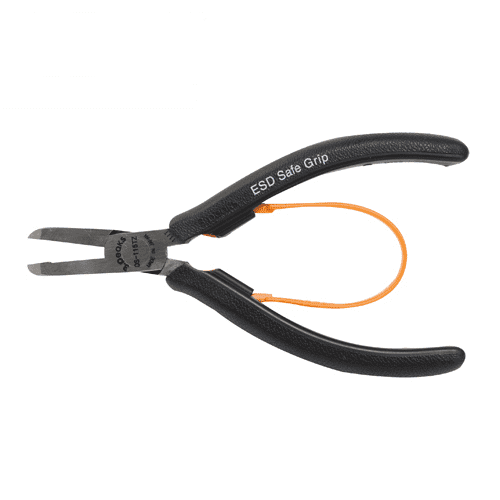

[3PEAKS] Daiya-Type Pliers (DS-115/DS-150)

Small design with minimum 115 mm weight 65 g. Corresponds to precision screws and truss screws, narrow spaces.

  In order to hold the truss screw firmly, we changed the vertical groove structure of the conventional product "Diamond Screw Thread Pliers (DS-150Z)".
  It is a three-point supported gripper which can accommodate various shapes and sizes.
◦ In the induction hardening, the tip was hardened
◦ Elastic elastomer resin grip which is familiar to hand
◦ Easy continuous spring plastic spring (* DS - 115 TZ only)
ESD compliant electrostatic countermeasure grip adopted (surface resistance value 1 × 10 6 Ω to 10 9 Ω / sq.) (* DS - 115 TZ only)

material S58C
Hardness (HRC) 50 to 58 (gripper)
Product Code. Part number Nominal size grip weight
（mm）  Material Spring （g）
217-0862 DS-115TZ 115 ●  □  65
217-1232 DS-150TZ 150 ●  - 125

※ grip: ● = elastomer □ = plastic spring

Product form

Small design with minimum 115 mm weight 65 g. Corresponds to precision screws and truss screws, narrow spaces.  In order... Read more

SKU: 217-0862

$37.96 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    [3PEAKS] Daiya-Type Pliers (DS-115/DS-150)

    Small design with minimum 115 mm weight 65 g. Corresponds to precision screws and truss screws, narrow spaces.

      In order to hold the truss screw firmly, we changed the vertical groove structure of the conventional product "Diamond Screw Thread Pliers (DS-150Z)".
      It is a three-point supported gripper which can accommodate various shapes and sizes.
    ◦ In the induction hardening, the tip was hardened
    ◦ Elastic elastomer resin grip which is familiar to hand
    ◦ Easy continuous spring plastic spring (* DS - 115 TZ only)
    ESD compliant electrostatic countermeasure grip adopted (surface resistance value 1 × 10 6 Ω to 10 9 Ω / sq.) (* DS - 115 TZ only)

    material S58C
    Hardness (HRC) 50 to 58 (gripper)
    Product Code. Part number Nominal size grip weight
    （mm）  Material Spring （g）
    217-0862 DS-115TZ 115 ●  □  65
    217-1232 DS-150TZ 150 ●  - 125

    ※ grip: ● = elastomer □ = plastic spring
