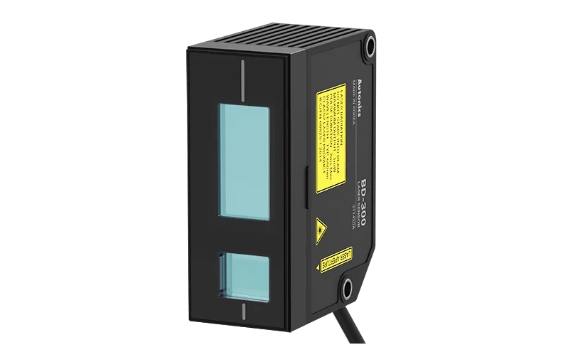

| Spot diameter |
Near(160mm): ≈ 990×1,000 ㎛
Reference(300mm): ≈ 490×510 ㎛
Far(450mm): ≈ 365×355 ㎛ |
| Resolution |
20 ㎛ |
| Reference distance |
300mm |
| Max. measurement range |
160 ~ 450 mm |
| Linearity |
± 0.25% of F.S. |
| Temperature Characteristics |
0.08% of F.S./℃ |
| Power voltage |
Using power from the amplifier unit. |
| Light source |
Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) |
| Light Source_Optical method |
Diffuse reflection |
| Light Source_Laser class |
Class 2 (IEC/EN), Class II (FDA (CDRH) CFR Part 1002) |
| Light Source_Output |
≤ 1 mW |
| Laser Pulse duration |
Max. 2ms |
| Operation indicator |
Power indicator: red LED, Laser emission indicator: green LED,
NEAR/FAR indicator: green LED |
| Insulation resistance |
≥ 20 MΩ (500 VDC megger) |
| Noise immunity |
Square shaped noise by noise simulator (pulse width: 1㎲) ±500V |
| Dielectric strength |
Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration |
1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination |
Max. Incandescent lamp 10,000 lx |
| Environment_Ambient temperature |
-10 to 50℃, storage: -15 to 60℃ |
| Environment_Ambient humidity |
35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) |
| Protection structure |
IP67 (IEC Standards, except connector of extension cable) |
| Material |
Front case: AL, Rear case: PC, Cable: PVC, Sensing part: Glass |
| Amplifier unit compatibility |
BD Series amplifier unit: 1 |
| Weight |
≈ 151 g (≈ 330 g) |
