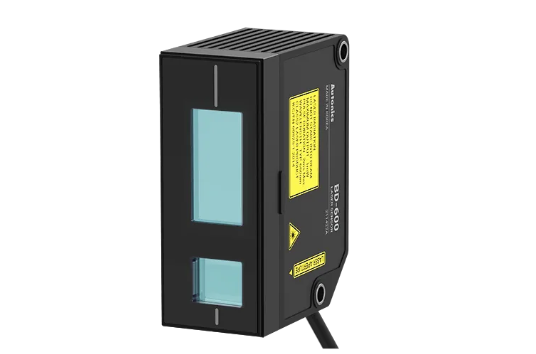

| Spot diameter |
Near(250mm): ≈ 1,140×1,175 ㎛
Reference(600mm): ≈ 860×830 ㎛
Far(1,000mm): ≈ 800×775 ㎛ |
| Resolution |
40 ㎛ |
| Reference distance |
600mm |
| Max. measurement range |
250 ~ 1,000 mm |
| Linearity |
± 0.25% of F.S. (250 ~ 600 mm)
± 0.5% of F.S. (600 ~ 1,000 mm) |
| Temperature Characteristics |
0.08% of F.S./℃ |
| Power voltage |
Using power from the amplifier unit. |
| Light source |
Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) |
| Light Source_Optical method |
Diffuse reflection |
| Light Source_Laser class |
Class 2 (IEC/EN), Class II (FDA (CDRH) CFR Part 1002) |
| Light Source_Output |
≤ 1 mW |
| Laser Pulse duration |
Max. 2ms |
| Operation indicator |
Power indicator: red LED, Laser emission indicator: green LED,
NEAR/FAR indicator: green LED |
| Insulation resistance |
≥ 20 MΩ (500 VDC megger) |
| Noise immunity |
Square shaped noise by noise simulator (pulse width: 1㎲) ±500V |
| Dielectric strength |
Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration |
1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination |
Max. Incandescent lamp 10,000 lx |
| Environment_Ambient temperature |
-10 to 50℃, storage: -15 to 60℃ |
| Environment_Ambient humidity |
35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) |
| Protection structure |
IP67 (IEC Standards, except connector of extension cable) |
| Material |
Front case: AL, Rear case: PC, Cable: PVC, Sensing part: Glass |
| Amplifier unit compatibility |
BD Series amplifier unit: 1 |
| Weight |
≈ 153 g (≈ 332 g) |
