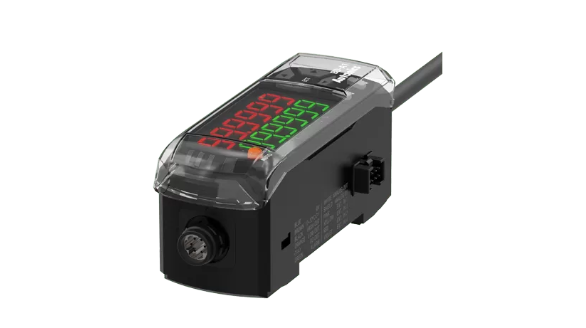

| Power voltage |
10-30VDC ±10% (When connecting BD-C Series communication converter, 12-30VDC) |
| Power consumption |
Max. 2800mW (30VDC) |
| Control input |
No-voltage input |
| Judgment output |
NPN or PNP open collector output (Load current: Max. 100mA) |
| Alarm output |
NPN or PNP open collector output (Load current: Max. 100mA) |
| Analog voltage output |
-5 - 5 V, 0 - 5 V, 1 - 5 V (resistance: 100 Ω, ± 0.05% F.S., at 10 V) |
| Analog current output |
) 4 - 20 mA (load resistance: ≤ 350 Ω, ± 0.2% F.S., at 16 mA) |
| Residual voltage |
NPN: Max. 1.5V, PNP: Max. 2.5V |
| Protection circuit |
Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit |
| Response time |
0.33, 0.5, 1, 2, 5 ms (5-step adjustment) |
| Min. display unit |
[BD-030 / 065 / 100] 1 ㎛
[BD-300 / 600] 10 ㎛ |
| Display method |
Dual display by 6-digit, 11-segment LED |
| Display range |
[BD-030 / 065 / 100] ± 99.999 to ± 99 mm (4-step paramete set)
[BD-300 / 600] ± 999.99 to ± 999 mm (3-step parameter set) |
| Display cycle |
Approx. 100ms |
| Insulation resistance |
≥ 20 MΩ (500 VDC megger) |
| Noise immunity |
Square shaped noise by noise simulator (pulse width: 1 ㎲) ± 500 V |
| Dielectric strength |
Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration |
1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature |
-10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) |
| Environment_Ambient humidity |
Under 85%RH, storage: under 85%RH |
| Protection structure |
IP40 (IEC Standards) |
| Material |
Case: Polycarbonate, Cover: Polycarbonate, Cable: Polyvinyl chloride |
| Connection method |
Connector type |
| Supported sensor head |
Sensor head (BD-□) |
| Supported comunication converter |
Communication converter (BD-C) |
| Weight |
126 g (≈ 228 g) |
