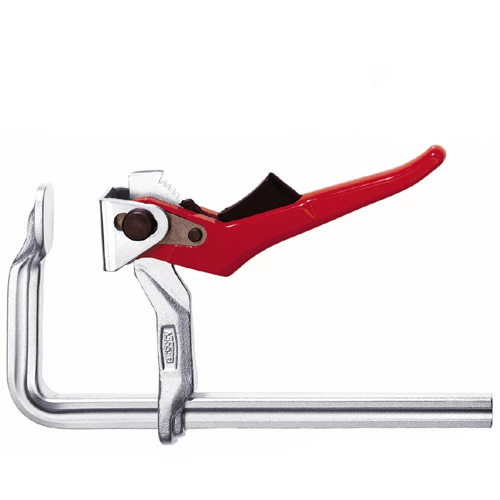

BESSEY Lever clamp GH

Description

Products Details



  • Greater reserves of power, thanks to optimized rail profile, even clamping force build-up, especially under maximum utilization of the clamping range
  • Non-slip trigger release
  • Sintered steel cams - particularly hard-wearing, due to low friction surface hardness
  • Quick - up to 5 x faster than regular clamps
  • Secure - vibration resistant
  • Strong - clamping force up to 8,500 N



                Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg)
                GH16 160 80 17.5 x 6.8 0.64
                GH20 200 100 22 x 8.5 1.11
                GH25 250 120 24.5 x 9.5 1.44
                GH30 300 140 28 x 11 2.27
                GH40 400 120 28 x 11 2.41
                GH60 600 120 28 x 11 2.84
                GH80 800 120 28 x 11 3.2
                GH100 1000 120 28 x 11 3.59



                Product form

                Products Details   Greater reserves of power, thanks to optimized rail profile, even clamping force build-up, especially under maximum utilization... Read more

                SKU: 216-0342

                $80.45 Excl. VAT

                  • Ships within 5–10 business days
                  • Ships from South Korea
                  • Export packing available
                  • Worldwide shipping
                  • Secure payments Paypal
                  Need a bulk or multi-brand quotation?

                  Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
                  Korean brands at ProSource MRO — operated by the same team.

                  Request a Bulk Quote →

                  Description

                  Products Details



                  • Greater reserves of power, thanks to optimized rail profile, even clamping force build-up, especially under maximum utilization of the clamping range
                  • Non-slip trigger release
                  • Sintered steel cams - particularly hard-wearing, due to low friction surface hardness
                  • Quick - up to 5 x faster than regular clamps
                  • Secure - vibration resistant
                  • Strong - clamping force up to 8,500 N



                                Reference no. Opening a (mm) Throat depth b (mm) Rail (mm) Weight approx. (kg)
                                GH16 160 80 17.5 x 6.8 0.64
                                GH20 200 100 22 x 8.5 1.11
                                GH25 250 120 24.5 x 9.5 1.44
                                GH30 300 140 28 x 11 2.27
                                GH40 400 120 28 x 11 2.41
                                GH60 600 120 28 x 11 2.84
                                GH80 800 120 28 x 11 3.2
                                GH100 1000 120 28 x 11 3.59
