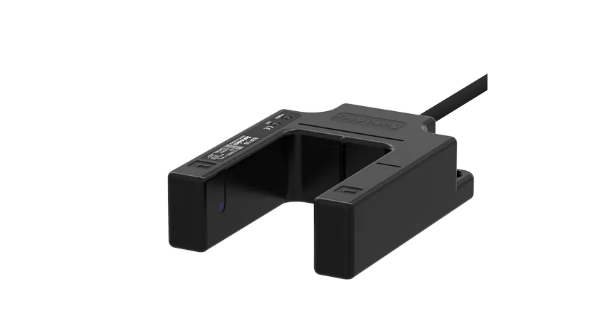

Autonics Photoelectric Sensor, Photoelectric Type BUP-30

Description

Sensing type Through-beam type
Sensing Channel 1-channel
Sensing distance 30mm
Sensing target Opaquematerial of min. Ø4mm
Light source Infrared LED(940nm)
Response time Max. 1ms
Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Max. 30mA
Sensitivity adjustment Fixed
Operation mode Light ON/Dark ON(set by control wire)
Control output NPN open collector
Connection type Cable type(Ø4, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 65℃, storage: -25 to 70℃
Protection structure IP66
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
Weight Approx. 85g
Product form

Sensing type Through-beam type Sensing Channel 1-channel Sensing distance 30mm Sensing target Opaquematerial of min. Ø4mm Light source Infrared LED(940nm)... Read more

SKU: BUP-30

$31.93 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Sensing type Through-beam type
    Sensing Channel 1-channel
    Sensing distance 30mm
    Sensing target Opaquematerial of min. Ø4mm
    Light source Infrared LED(940nm)
    Response time Max. 1ms
    Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
    Current consumption Max. 30mA
    Sensitivity adjustment Fixed
    Operation mode Light ON/Dark ON(set by control wire)
    Control output NPN open collector
    Connection type Cable type(Ø4, 2m)
    Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature -25 to 65℃, storage: -25 to 70℃
    Protection structure IP66
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
    Weight Approx. 85g
