Description

Wire type and power	DC 3-wire type 12-24VDC
Sensing side diameter	M18
Sensing distance	8mm
Standard sensing target	50×50×1mm(iron)
Response frequency	50Hz
Current specification	Current consumption: Max.15mA
Control output	PNP Normally Open
Material	Polyamide 6
Protection structure	IP66
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 20% of sensing distance
Weight	≈ 76g (≈ 88g)

Product form

Wire type and power DC 3-wire type 12-24VDC Sensing side diameter M18 Sensing distance 8mm Standard sensing target 50×50×1mm(iron) Response... Read more

SKU: CR18-8DP

$32.74 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Wire type and power	DC 3-wire type 12-24VDC
Sensing side diameter	M18
Sensing distance	8mm
Standard sensing target	50×50×1mm(iron)
Response frequency	50Hz
Current specification	Current consumption: Max.15mA
Control output	PNP Normally Open
Material	Polyamide 6
Protection structure	IP66
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 20% of sensing distance
Weight	≈ 76g (≈ 88g)

Reviews

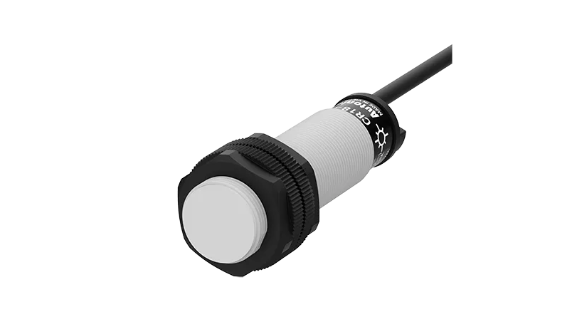

Name: Autonics Proximity Sensor Cylindrical Capacitive Proximity Sensor DC 3-Wire CR18-8DP
Brand: Autonics
SKU: CR18-8DP
Price: 32.74 USD
Availability: InStock

Autonics Proximity Sensor Cylindrical Capacitive Proximity Sensor DC 3-Wire CR18-8DP
