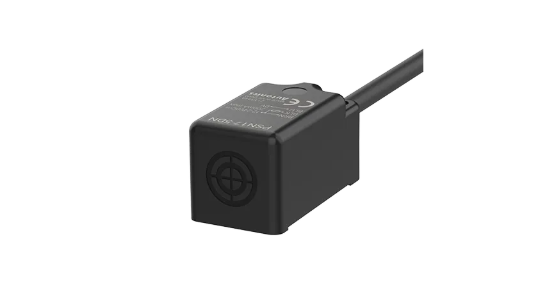

Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN17-5DN

Description

Wire type and power DC 3-wire type 12-24VDC specialstring
Sensing side size Frame size 17mm
Sensing distance 5mm
Standard sensing target 18×18×1mm(iron)
Response frequency 700Hz
Current specification Current consumption: Max. 10mA
Control output NPN Normally Open
Sensing type Standard type(front sensing type)
Material Heat-resistant ABS
Protection structure IP67
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Weight ≈ 62g (≈ 83g)
Product form

Wire type and power DC 3-wire type 12-24VDC  Sensing side size Frame size 17mm Sensing distance 5mm Standard sensing target... Read more

SKU: PSN17-5DN

$9.48 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Wire type and power DC 3-wire type 12-24VDC specialstring
    Sensing side size Frame size 17mm
    Sensing distance 5mm
    Standard sensing target 18×18×1mm(iron)
    Response frequency 700Hz
    Current specification Current consumption: Max. 10mA
    Control output NPN Normally Open
    Sensing type Standard type(front sensing type)
    Material Heat-resistant ABS
    Protection structure IP67
    Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃
    Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
    Hysteresis(distance) Max. 10% of sensing distance
    Weight ≈ 62g (≈ 83g)
