Description

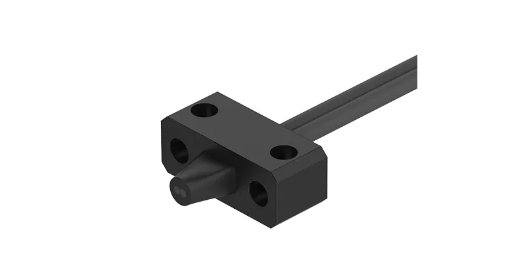

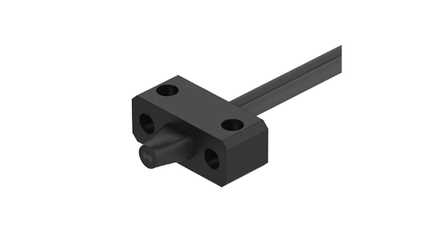

FDP-320-10
- Type : Plastic injection molding type
- Sensing distance : 120mm
- Min. sensing target : Ø0.03mm
- Allowable bend radius : R25
- Cable length : 2m
- Environment_Ambient temperature : -40 to 70℃
| Type |
Plastic injection molding type |
| Sensing distance |
120mm |
| Min. sensing target |
Ø0.03mm |
| Allowable bend radius |
R25 |
| Cable length |
2m |
| Free cut |
Free cut |
| Environment_Ambient temperature |
-40 to 70℃ |
| Sensing type |
Diffuse reflective type |
※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.
※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.
※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]
※Glass type is for BF5, BF4 Series.
