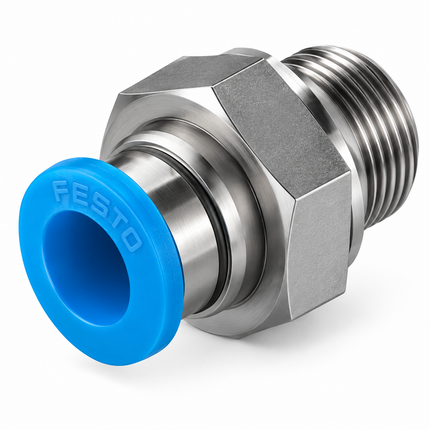

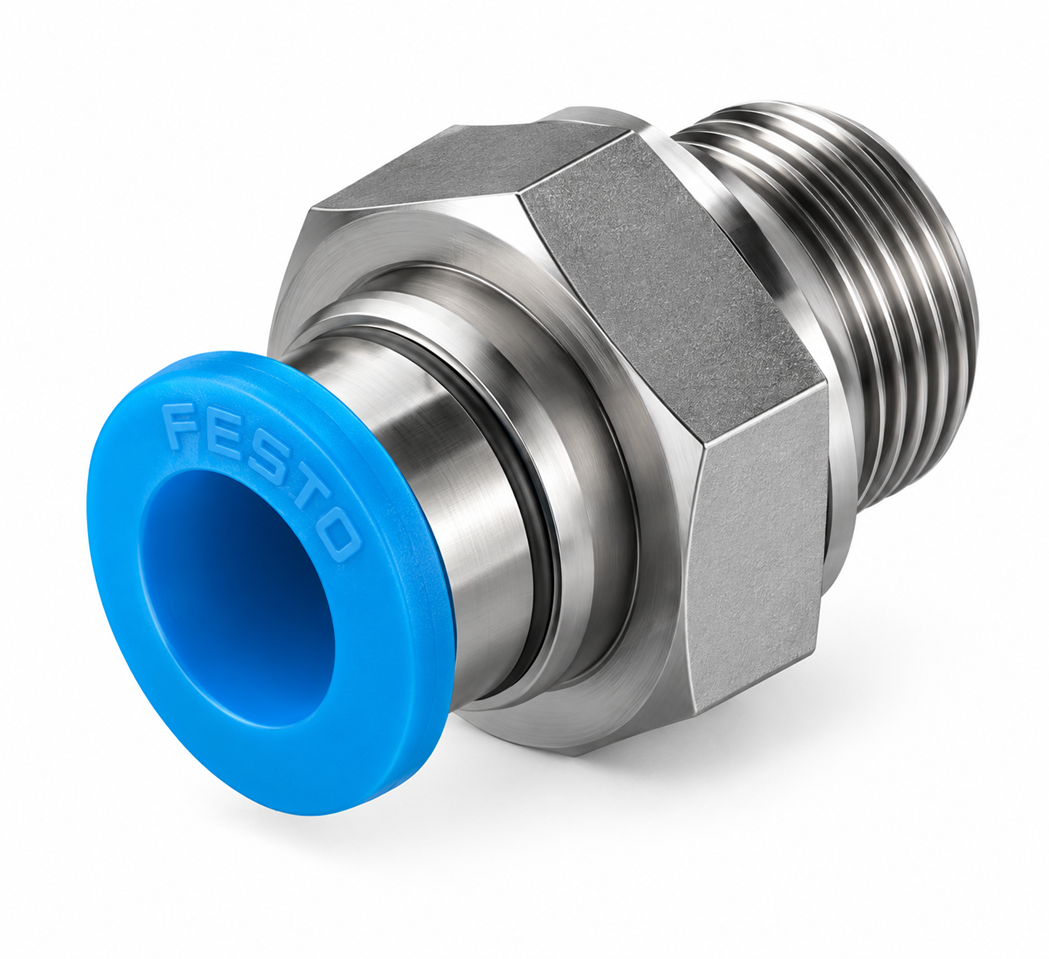

The FESTO QS-G1/4-8 is a straight push-in fitting that connects Ø8 mm pneumatic tubing to a G1/4 male-threaded port. Tubing locks in on insertion and releases with the blue release ring (push-pull principle). The nickel-plated brass body and factory-fitted sealing ring on the thread make it suitable for compressed air and water lines in machine building and factory automation.
| Model |
QS-G1/4-8 |
| Design |
Straight, push-pull principle |
| Port 1 |
Male thread G1/4, with sealing ring |
| Port 2 |
For tubing OD 8 mm |
| Nominal size |
7 mm |
| Tubing insertion depth |
18.2 mm |
| Operating pressure |
-0.95 to 6 bar (-13.8 to 87 psi) over full temperature range
Up to 14 bar (203 psi), temperature-dependent |
| Water service |
Max. 6 bar at max. 50 °C (G-thread requires sealing ring type OL, sold separately) |
| Operating medium |
Compressed air (ISO 8573-1:2010 [7:-:-]), water (ice-free) |
| Ambient temperature |
-10 to 80 °C |
| Mounting |
External hex SW17, tightening torque 9 Nm ±20% |
| Materials |
Housing: nickel-plated brass · Release ring: POM (blue) · Tubing seal: NBR · Clamp: high-alloy stainless steel |
| Cleanroom suitability |
Class 4 per ISO 14644-1 |
| Corrosion resistance |
CRC 1 (low corrosion stress) |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Compliance |
RoHS compliant |
| Weight |
15 g per piece |
For volume pricing, contact us.
