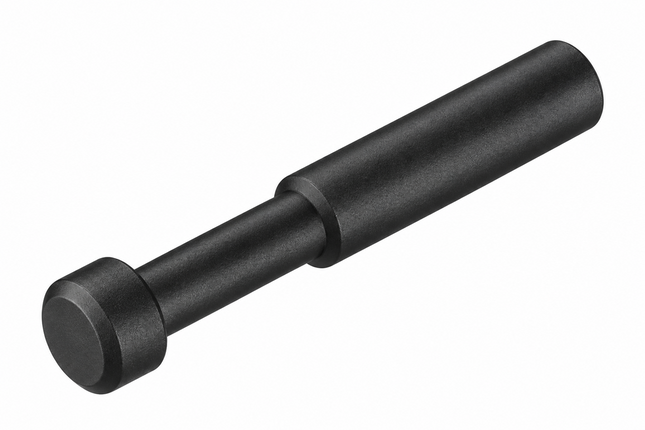

FESTO FESTO QSC-4H Blanking Plug for Ø4 mm Push-in Connections (Pack of 10)
The FESTO QSC-4H (part no. 153267) is a blanking plug that seals unused Ø4 mm push-in ports on pneumatic fittings, valves and manifolds. Push it in to close the port — no tools required. Suitable for compressed air and water systems, and approved for lubricated operation. Specifications Manufacturer part no. QSC-4H (153267) Design Blanking plug Pneumatic connection Push-in sleeve Ø4 mm Operating pressure -0.95 to 6 bar (-13.8 to 87 psi) over full temperature rangeUp to 14 bar (203 psi), temperature-dependent Water service Max. 6 bar at max. 50 °C Operating medium Compressed air (ISO 8573-1:2010 [7:-:-]), water (ice-free) Ambient temperature -10 to 80 °C Housing material PBT Corrosion resistance CRC 1 (low corrosion stress) LABS (PWIS) conformity VDMA24364-B1/B2-L Mounting position Any Compliance RoHS compliant Weight 0.5 g per piece Package & Ordering Sold in packs of 10 (manufacturer's standard pack size) Price shown is per pack of 10 For volume pricing, contact us.
$20.50

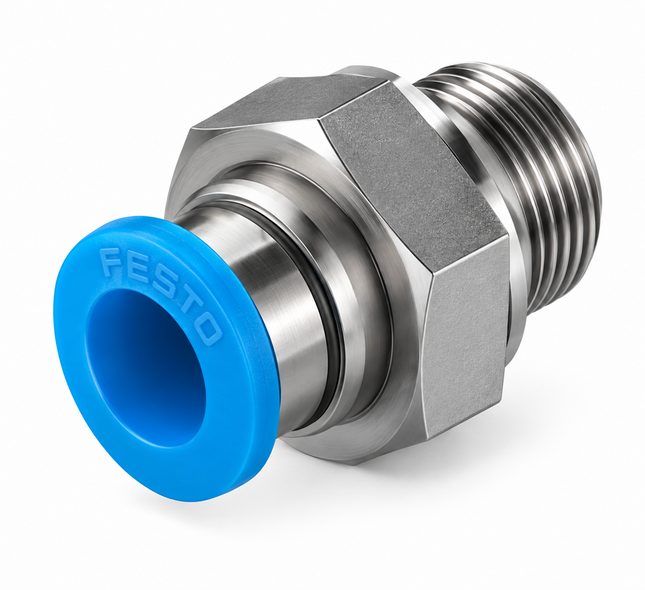

FESTO FESTO QS-G1/4-8 Push-in Fitting, G1/4 Male to Ø8 mm Tube (Pack of 10)
The FESTO QS-G1/4-8 is a straight push-in fitting that connects Ø8 mm pneumatic tubing to a G1/4 male-threaded port. Tubing locks in on insertion and releases with the blue release ring (push-pull principle). The nickel-plated brass body and factory-fitted sealing ring on the thread make it suitable for compressed air and water lines in machine building and factory automation. Specifications Model QS-G1/4-8 Design Straight, push-pull principle Port 1 Male thread G1/4, with sealing ring Port 2 For tubing OD 8 mm Nominal size 7 mm Tubing insertion depth 18.2 mm Operating pressure -0.95 to 6 bar (-13.8 to 87 psi) over full temperature rangeUp to 14 bar (203 psi), temperature-dependent Water service Max. 6 bar at max. 50 °C (G-thread requires sealing ring type OL, sold separately) Operating medium Compressed air (ISO 8573-1:2010 [7:-:-]), water (ice-free) Ambient temperature -10 to 80 °C Mounting External hex SW17, tightening torque 9 Nm ±20% Materials Housing: nickel-plated brass · Release ring: POM (blue) · Tubing seal: NBR · Clamp: high-alloy stainless steel Cleanroom suitability Class 4 per ISO 14644-1 Corrosion resistance CRC 1 (low corrosion stress) LABS (PWIS) conformity VDMA24364-B1/B2-L Compliance RoHS compliant Weight 15 g per piece Package & Ordering Sold in packs of 10 Price shown is per pack of 10 For volume pricing, contact us.
$49.05
