Description

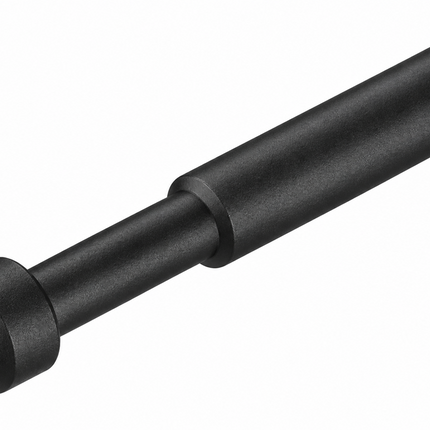

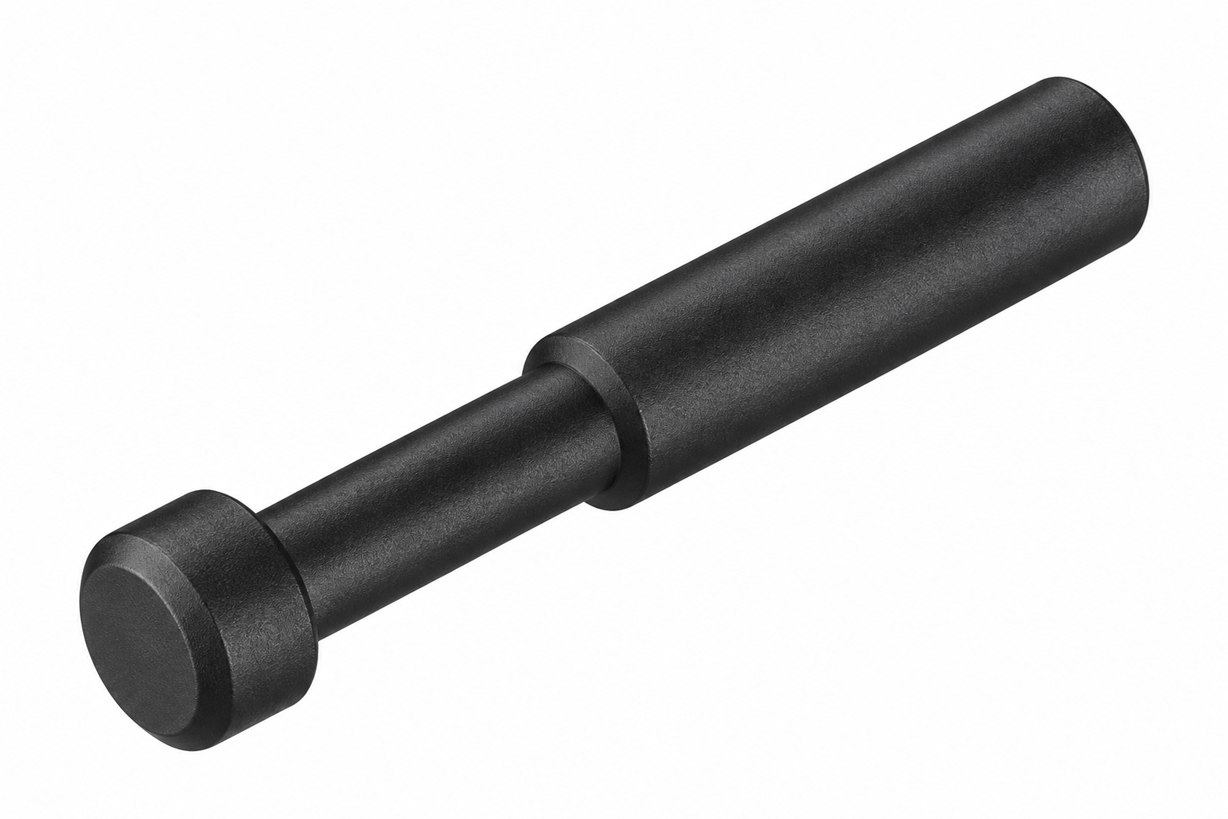

The FESTO QSC-4H (part no. 153267) is a blanking plug that seals unused Ø4 mm push-in ports on pneumatic fittings, valves and manifolds. Push it in to close the port — no tools required. Suitable for compressed air and water systems, and approved for lubricated operation.
Specifications
| Manufacturer part no. |
QSC-4H (153267) |
| Design |
Blanking plug |
| Pneumatic connection |
Push-in sleeve Ø4 mm |
| Operating pressure |
-0.95 to 6 bar (-13.8 to 87 psi) over full temperature range
Up to 14 bar (203 psi), temperature-dependent |
| Water service |
Max. 6 bar at max. 50 °C |
| Operating medium |
Compressed air (ISO 8573-1:2010 [7:-:-]), water (ice-free) |
| Ambient temperature |
-10 to 80 °C |
| Housing material |
PBT |
| Corrosion resistance |
CRC 1 (low corrosion stress) |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Mounting position |
Any |
| Compliance |
RoHS compliant |
| Weight |
0.5 g per piece |
Package & Ordering
- Sold in packs of 10 (manufacturer's standard pack size)
- Price shown is per pack of 10
For volume pricing, contact us.
