Description

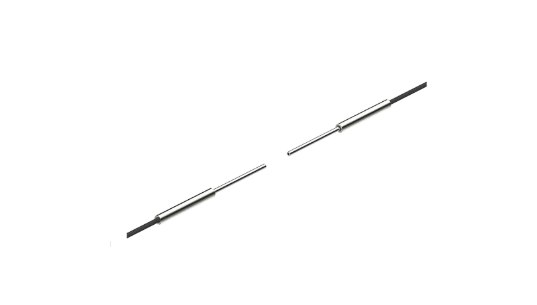

FTCS-220-05
- Type : Cylinder+SUS type(SUS length 15mm)
- Sensing distance : 150mm
- Min. sensing target : Ø0.5mm
- Allowable bend radius : R10(SUS part R10)
- Cable length : 2m
- Adapter : Adapter
- Environment_Ambient temperature : -40 to 70℃
| Type |
Cylinder+SUS type(SUS length 15mm) |
| Sensing distance |
150mm |
| Min. sensing target |
Ø0.5mm |
| Allowable bend radius |
R10(SUS part R10) |
| Cable length |
2m |
| Free cut |
Free cut |
| Adapter |
Adapter |
| Environment_Ambient temperature |
-40 to 70℃ |
| Sensing type |
Through-beam type |
※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.
※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.
※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]
※FT-420-13 was discontinued. FT-420-13B is replacement.
※Glass type is for BF5, BF4 Series.
