Description

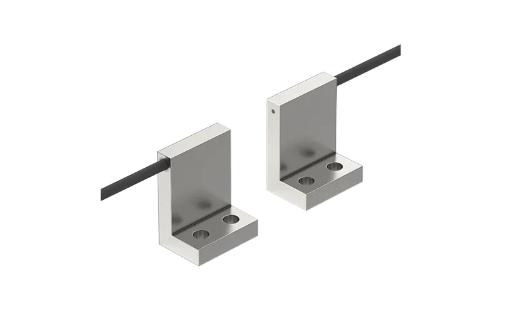

- Type : L type/Top view(height 22.2mm)
- Sensing distance : 500mm
- Min. sensing target : Ø0.06mm
- Allowable bend radius : R1
- Cable length : 1m
- Environment_Ambient temperature : -40 to 60℃
| Type |
L type/Top view(height 22.2mm) |
| Sensing distance |
500mm |
| Min. sensing target |
Ø0.06mm |
| Allowable bend radius |
R1 |
| Cable length |
1m |
| Free cut |
Free cut |
| Environment_Ambient temperature |
-40 to 60℃ |
| Sensing type |
Through-beam type |
※The sensing distance is a standard for BF5 Series.
※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.
※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]
※FT-420-13 was discontinued. FT-420-13B is replacement.
※Glass type is for BF5, BF4 Series.
