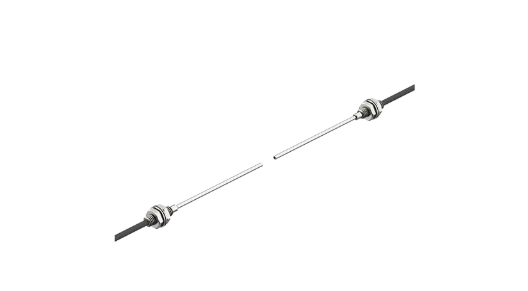

Autonics Fiber optic sensor, Through-beam type FTS-420-10

Description

FTS-420-10

  • Type : SUS type(SUS length 90mm)
  • Sensing distance : 500mm
  • Min. sensing target : Ø1mm
  • Allowable bend radius : R30(SUS part 10R)
  • Cable length : 2m
  • Environment_Ambient temperature : -40 to 70℃



Type SUS type(SUS length 90mm)
Sensing distance 500mm
Min. sensing target Ø1mm
Allowable bend radius R30(SUS part 10R)
Cable length 2m
Free cut Free cut
Environment_Ambient temperature -40 to 70℃
Sensing type Through-beam type

※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.
※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.
※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]
※FT-420-13 was discontinued. FT-420-13B is replacement.
※Glass type is for BF5, BF4 Series.

Product form

FTS-420-10 Type : SUS type(SUS length 90mm) Sensing distance : 500mm Min. sensing target : Ø1mm Allowable bend radius :... Read more

SKU: FTS-420-10

$25.27 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    FTS-420-10

    • Type : SUS type(SUS length 90mm)
    • Sensing distance : 500mm
    • Min. sensing target : Ø1mm
    • Allowable bend radius : R30(SUS part 10R)
    • Cable length : 2m
    • Environment_Ambient temperature : -40 to 70℃



    Type SUS type(SUS length 90mm)
    Sensing distance 500mm
    Min. sensing target Ø1mm
    Allowable bend radius R30(SUS part 10R)
    Cable length 2m
    Free cut Free cut
    Environment_Ambient temperature -40 to 70℃
    Sensing type Through-beam type

    ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.
    ※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.
    ※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]
    ※FT-420-13 was discontinued. FT-420-13B is replacement.
    ※Glass type is for BF5, BF4 Series.
