Description

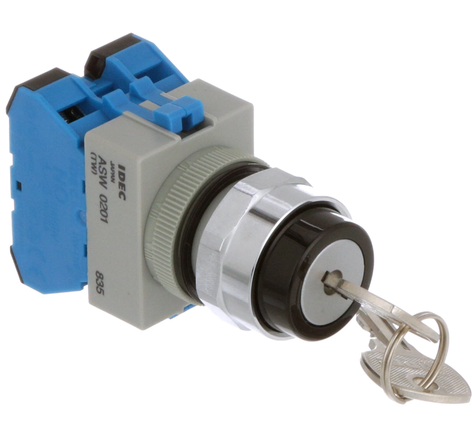

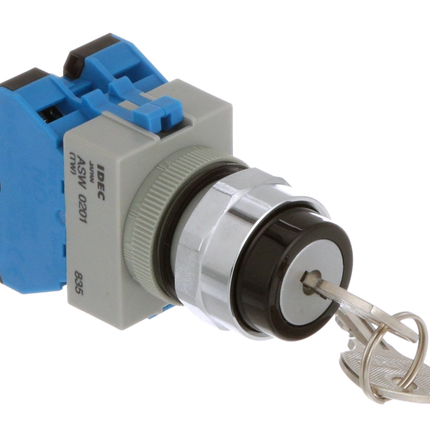

ASW2K20 - IDEC TW Series 2-POS Maintained Key Switch
The TW Series Family
A traditional NEMA style switch, the TW series features a chrome plated octagonal locking ring that fastens from the front of the panel. Modular construction with snap-on contacts allows for great flexibility in configuration.
Contacts are slow make, double break with a self-cleaning action that produces a wide switching range (from 5mA to 10A). Several screw terminal styles are available from the standard exposed full size M3.5 screw to a fingersafe (IP20) screw terminal (contacts are interchangeable with the HW series). Models include illuminated or non-illuminated pushbuttons, pilot lights, selectors, key switches, and Emergency Stop switches.
Key Features
- Corrosion resistant octagonal chrome plated locking bezel
- Snap on 10A contacts
- Modular contruction for maximum flexibility
- NEMA 4X and IP65 watertight/oiltight panel sealing
- Available assembled or as sub-components
- UL Listed, CSA Certified, TUV Approved, and CE Marked
