Description

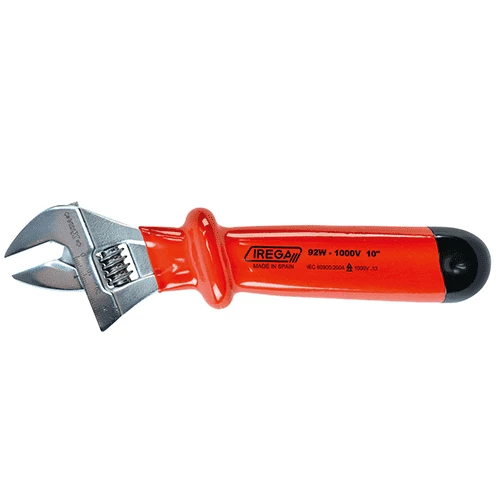

IREGA 1000V Insulated Adjustable Wrenches | 92W-1000V
1000V insulated wrenches
3 LAYERS OF "PLASTISOL"
The handle insulation material fulfills the requirements of IEC 900 and EN-60900 as far as it is concerned.
Every IREGA 92-1000V adjustable wrench undergoes a HIGH VOLTAGE TEST, according to EN-60900 Standard, equivalent to IEC-900, and consists of a 10,000V charge for 10 seconds, after which there should be no damage to the handle.
The three "Plastisol" layers in different colors allow the user to easily check the condition of the insulation.
• Inasmuch as the "Plastisol" maintains the red color throughout the entire surface.
• When Orange color appears at some area, but safety is to be full and guaranteed, the user must be Cautious as natural wearing has started.
• As soon as possible, install the adjustable wrench as a safety tool for electrical installations, and replace it for a new one.
• There is a fourth black layer (without electrical insulation properties) at the bottom of the handle, aimed to provide extra protection against falls, knocks, etc ... on that area.

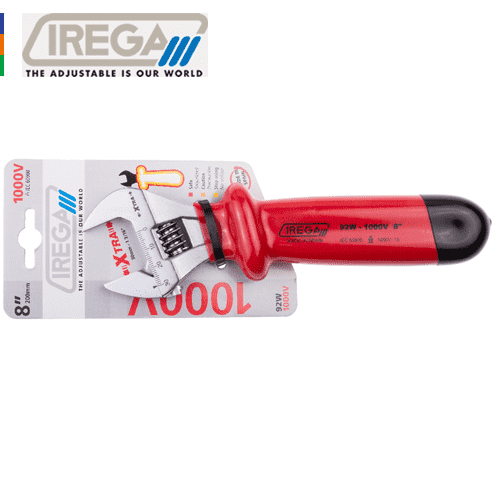

NEW WIDENED RANGE
MOD. 92W - 1000V
New and Improved Design
• Sizes 6 "- 12"
• Up to 25% Xtra opening capacity
The 92W's Xtra capacity allows for a wider range of nuts and bolts with the same size of adjustable wrench.
| Product Code. |
92W-1000V |
Length |
Opening |
Opening |
Weight (gr) |
| mm. |
inches |
| 207-3541 |
6" |
161 |
24 |
15/16" |
185 |
| 207-3550 |
8" |
207 |
30 |
1 3/16" |
360 |
| 207-3569 |
10" |
259 |
34 |
1 1/8" |
580 |
| 207-3578 |
12" |
311 |
39 |
1 1/2" |
905 |
Importan notice:
DO NEVER TOUCH NON INSULATED PARTS WHILE WORKING ON VOLTAGE INSTALATIONS!
The adjustable wrenches with insulated handle can not be standardized, given that knurl that drives the opening / closing, is not insulated.
