Description
Pull studs must match the spindle drawbar standard, such as the BT type and angle, because a wrong stud can release the tool.

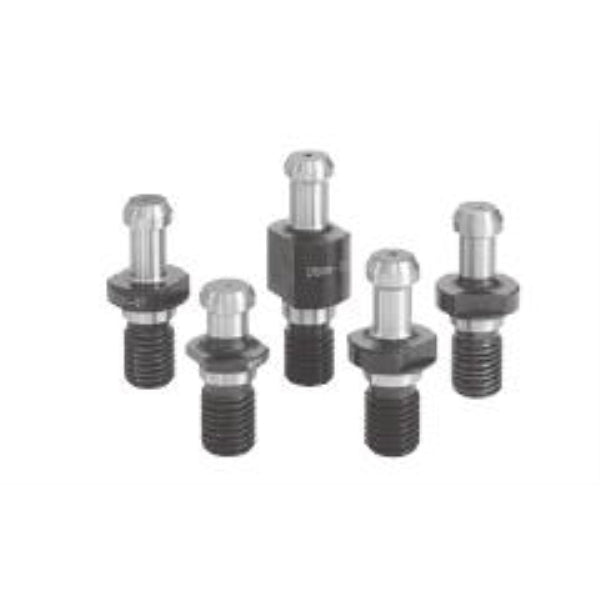

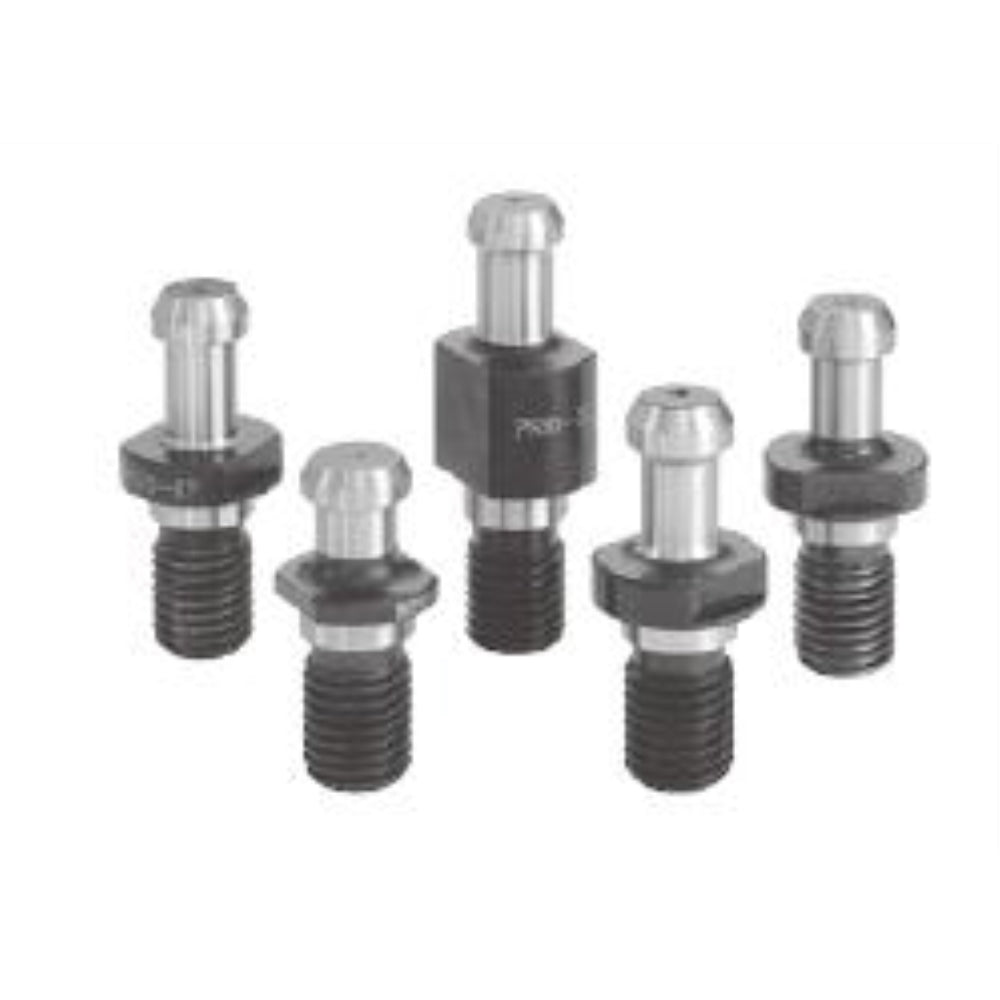

DINE Pull Stud Bolt
A pull stud bolt screws into the end of a tool holder, and the machine drawbar grips it to pull the holder tight into the spindle. Machining centers use it on every BT, CAT or similar holder.
Key Features
- Screws into the rear of the tool holder
- Must match the holder standard and angle
- Check the thread, and tighten to the maker's torque
Specifications
| Model |
Specification |
Sold as |

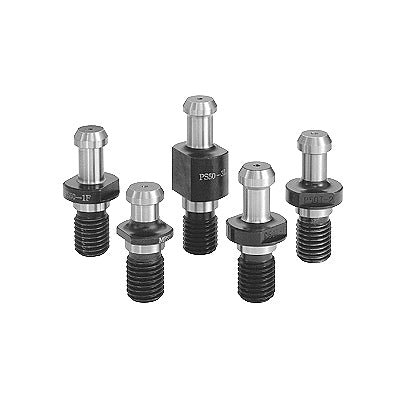

| P30T-2 |
P30T-2 (30°) |
1 pc |
| P30T-1 |
P30T-1 (BT30, 45°) |
1 pc |
| PS40-3F |
PS40-3F |
1 pc |
| P40T-1 |
P40T-1(Ø3) 45°-oil groove |
1 pc |
| PS-G51 |
PS-G51 |
1 pc |
| PS50-1FH |
PS50-1FH |
1 pc |
| DIN69872-A50 |
DIN69872-A50 |
1 pc |
| PS-G41 |
PS-G41 (45") |
1 pc |
- Brand: DINE
- Country of origin: Korea
About DINE
DINE of South Korea makes tool holders and work accessories for machining centers, including collet, hydraulic and shrink-fit chucks.
