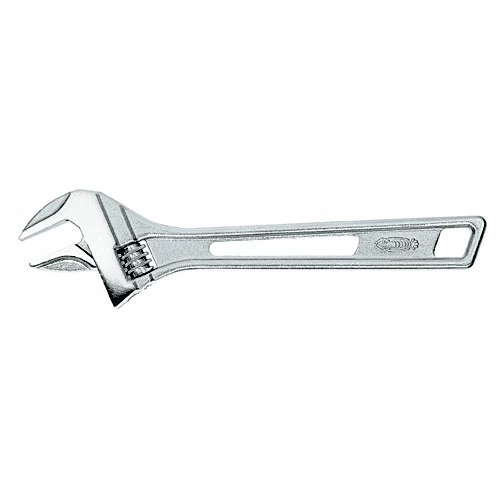

LOBSTER Hybrid Adjustable Wrenches UM

Description

LOBSTER Hybrid Adjustable Wrenches UM



LOBSTER originated adjustable angle wrench, featuring "thin" and "lightweight" design
Adjustable angle wrench featuring "Thin", "Wide" and "Lightweight" design
◎ All of LOBTEX adjustable angle wrenches are made in Japan, and can be reliably and safely used.


Use / Application
Application: Tightening and loosening nuts and bolts

● Thin:
 The thin body can smoothly fit the palm, so the tool can be safely used even in cramped spaces.



Upper: Hybrid adjustable wrench (UM36)
Lower: Powerful adjustable wrench (M300)

 The hybrid adjustable wrench is thinner, when compared with the same jaw opening width.

● Wide:
   The jaw opening is wider than that of conventional adjustable wrenches.

Left: Conventional powerful adjustable wrench (M300)
Right: Hybrid adjustable wrench (UM36)


● Lightweight:
 Approx. 60% weight reduction, in comparison with our powerful adjustable wrenches

Overall size comparison between hybrid adjustable wrench (UM36) and conventional adjustable wrench (M300)
 Despite the same jaw opening width, the hybrid adjustable wrench is compact. However, it provides sufficient torque, causing no problems in use.

  * The hybrid adjustable wrench provides higher rigidity than the safety standard prescribed in JIS (Japan Industrial Standard), thus ensuring safety during use.


Specifications



Product Code. Model No. weight size1 size2 size3 Jaw Capacity Bolt, nut maximum dimension
215-0415 UM24 90g 150mm 5mm 9.5mm 0～24mm M16
215-0424 UM30 170g 200mm 6mm 12.0mm 0～30mm M20
215-0433 UM36 290g 245mm 7mm 14.0mm 0～36mm M24
215-0442 UM46 560g 300mm 8mm 16.5mm 0～46mm M30



IMPORTANT SAFETY INSTRUCTIONS
◆ Precautions in use
Adjust the width across flats with the bolt or nut firmly gripped at the back of the jaw.
Turn the wrench toward the lower jaw.
Do not extend wrenches with a pipe, etc.
Do not use wrenches as a substitute for a hammer.
Do not apply impact to wrenches by hitting them with a hammer, etc.


CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
※ Specifications may be changed for improvement without prior notice.

Product form

LOBSTER Hybrid Adjustable Wrenches UM LOBSTER originated adjustable angle wrench, featuring "thin" and "lightweight" designAdjustable angle wrench featuring "Thin", "Wide"... Read more

Barcode: 4963202044691

$20.32 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 24, 2024 17:00:00 +0900

    Description

    LOBSTER Hybrid Adjustable Wrenches UM



    LOBSTER originated adjustable angle wrench, featuring "thin" and "lightweight" design
    Adjustable angle wrench featuring "Thin", "Wide" and "Lightweight" design
    ◎ All of LOBTEX adjustable angle wrenches are made in Japan, and can be reliably and safely used.


    Use / Application
    Application: Tightening and loosening nuts and bolts

    ● Thin:
     The thin body can smoothly fit the palm, so the tool can be safely used even in cramped spaces.



    Upper: Hybrid adjustable wrench (UM36)
    Lower: Powerful adjustable wrench (M300)

     The hybrid adjustable wrench is thinner, when compared with the same jaw opening width.

    ● Wide:
       The jaw opening is wider than that of conventional adjustable wrenches.

    Left: Conventional powerful adjustable wrench (M300)
    Right: Hybrid adjustable wrench (UM36)


    ● Lightweight:
     Approx. 60% weight reduction, in comparison with our powerful adjustable wrenches

    Overall size comparison between hybrid adjustable wrench (UM36) and conventional adjustable wrench (M300)
     Despite the same jaw opening width, the hybrid adjustable wrench is compact. However, it provides sufficient torque, causing no problems in use.

      * The hybrid adjustable wrench provides higher rigidity than the safety standard prescribed in JIS (Japan Industrial Standard), thus ensuring safety during use.


    Specifications



    Product Code. Model No. weight size1 size2 size3 Jaw Capacity Bolt, nut maximum dimension
    215-0415 UM24 90g 150mm 5mm 9.5mm 0～24mm M16
    215-0424 UM30 170g 200mm 6mm 12.0mm 0～30mm M20
    215-0433 UM36 290g 245mm 7mm 14.0mm 0～36mm M24
    215-0442 UM46 560g 300mm 8mm 16.5mm 0～46mm M30



    IMPORTANT SAFETY INSTRUCTIONS
    ◆ Precautions in use
    Adjust the width across flats with the bolt or nut firmly gripped at the back of the jaw.
    Turn the wrench toward the lower jaw.
    Do not extend wrenches with a pipe, etc.
    Do not use wrenches as a substitute for a hammer.
    Do not apply impact to wrenches by hitting them with a hammer, etc.


    CAUTIONS ON INSCRIBED VALUES

    ※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
    ※ Specifications may be changed for improvement without prior notice.
