Description

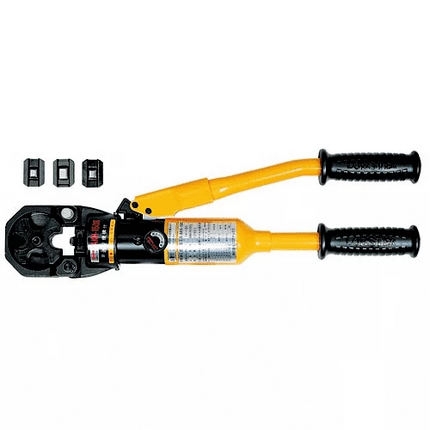

LOBSTER Hydraulic Crimping Tool AKH150S
• Terminals can be held and crimped quickly in 1 or 2 squeezes of the handle. Return speed is only 3 seconds.
Use / Application• Equipped with fast feed mechanism
Specifications
| Product Code. |
Model No. |
weight |
size1 |
Use range |
| 215-0211 |
AKH-150S(14-150SQ), |
4300g |
500mm |
14、22、38、60、70、80、100、150㎜2 |
| 215-0220 |
Dies |
|
|
AKH-150(14SQ), |
| 215-0239 |
Dies |
|
|
AKH-150(22SQ), |
| 215-0248 |
Dies |
|
|
AKH-150(38/60/70SQ), |
| 215-0257 |
Dies |
|
|
AKH-150(80/100/150SQ), |
IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in use
Do not crimp or work nearby live wires. This may result in electric shock.
Use this tool properly with compatible cable connectors (terminals and sleeves) and cables.
To prevent crimping failure, and to ensure crimping performance, the tool should be periodically inspected by Lobtex.
CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
※ Specifications may be changed for improvement without prior notice.
