Description

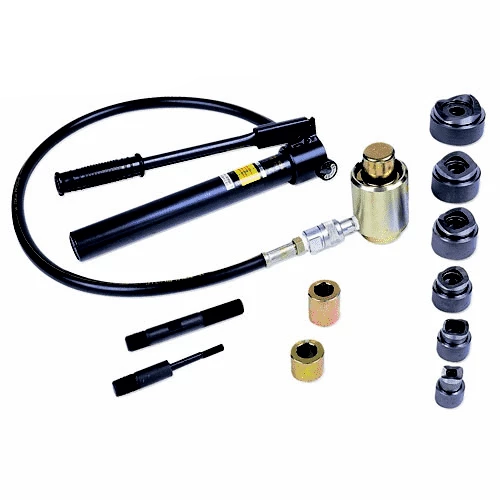

LOBSTER Hydraulic puncher
• Hydraulic puncher
• Enables smooth punching work in 18 steps ( 17.5 mm to 115.5 mm). Applicable to thin plate and soft steel plate of 3.2 mm thickness (stainless steel thickness 1.6 mm) after replacing the punch die.
• Light 2.6 kg body and 20 kgf handle load enable easy punching work.
Use / Application• Construction work (Electricity, tap water, gas, etc.)
• Piping work
Sheet metal work and power distribution panels
• Punching holes for mounting parts in control panels
Specifications
| Product Code |
Model No. |
weight |
Set details |
| 215-0266 |
LP104BP |
7400g |
H150P、SP104、PSL、PSS、PSPL、PSPS、B16、B22、B28、B36、B42、B54 |
| 215-0275 |
PSS |
150g |
A15～A25、B16 |
| 215-0284 |
PSL |
270g |
A31～A75、B22～B104 |
Shaft for LOBSTER puncher
IMPORTANT SAFETY INSTRUCTIONS
◆ Precautions in use
Do not operate the handle while touching the punch dies.
CAUTIONS ON INSCRIBED VALUES
※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
※ Specifications may be changed for improvement without prior notice.
