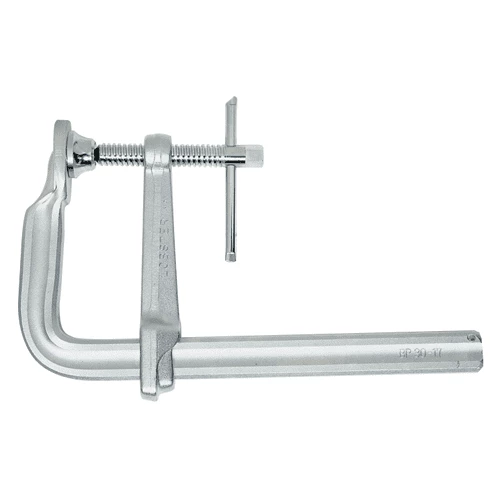

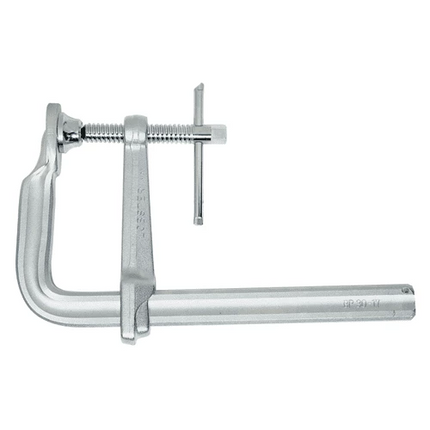

LOBSTER Popular and long-selling L-type Clamp BP

Description

LOBSTER Popular and long-selling L-type Clamp BP



Popular and long-selling L-type LOBSTER clamp
• Special heat treatment has given the body appropriate elasticity. Proven high durability.
• The plate is large and allows tightening work at angles up to 20 °.



Use / Application
• For attaching, fastening and holding materials


Specifications

Product Code. Model No. (Product) weight size1 size2 size3 size4 size5 size6
215-1025 BP3017 5100g 300mm 174mm 440mm φ45mm 20mm 39.4mm
215-1034 BP4017 5600g 400mm 174mm 540mm φ45mm 20mm 39.4mm
215-1043 BP6017 6600g 600mm 174mm 740mm φ45mm 20mm 39.4mm
215-1052 BP8017 7600g 800mm 174mm 940mm φ45mm 20mm 39.4mm





IMPORTANT SAFETY INSTRUCTIONS
◆ Precautions in use
Do not use this clamp as a sling gear.
Do not use this clamp for connecting scaffolding.
Ensure secure tightening.
Do not apply impact to this clamp by hitting it with a hammer, etc.
Do not extend this clamp with a pipe, etc.
When tightening a tapered or inclined workpiece, use particular caution. Slipping may occur.


CAUTIONS ON INSCRIBED VALUES
※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
※ Specifications may be changed for improvement without prior notice.

Product form

LOBSTER Popular and long-selling L-type Clamp BP Popular and long-selling L-type LOBSTER clamp• Special heat treatment has given the body... Read more

$226.92 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    LOBSTER Popular and long-selling L-type Clamp BP



    Popular and long-selling L-type LOBSTER clamp
    • Special heat treatment has given the body appropriate elasticity. Proven high durability.
    • The plate is large and allows tightening work at angles up to 20 °.



    Use / Application
    • For attaching, fastening and holding materials


    Specifications

    Product Code. Model No. (Product) weight size1 size2 size3 size4 size5 size6
    215-1025 BP3017 5100g 300mm 174mm 440mm φ45mm 20mm 39.4mm
    215-1034 BP4017 5600g 400mm 174mm 540mm φ45mm 20mm 39.4mm
    215-1043 BP6017 6600g 600mm 174mm 740mm φ45mm 20mm 39.4mm
    215-1052 BP8017 7600g 800mm 174mm 940mm φ45mm 20mm 39.4mm





    IMPORTANT SAFETY INSTRUCTIONS
    ◆ Precautions in use
    Do not use this clamp as a sling gear.
    Do not use this clamp for connecting scaffolding.
    Ensure secure tightening.
    Do not apply impact to this clamp by hitting it with a hammer, etc.
    Do not extend this clamp with a pipe, etc.
    When tightening a tapered or inclined workpiece, use particular caution. Slipping may occur.


    CAUTIONS ON INSCRIBED VALUES
    ※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
    ※ Specifications may be changed for improvement without prior notice.
