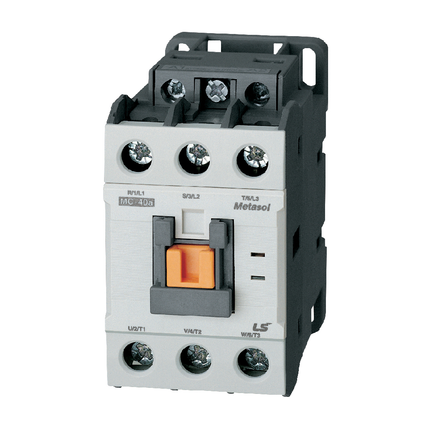

LS ELECTRIC Magnetic Contactor MC-40a AC120V 50/60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-K7-S-E)

Description

General

Product code 1337006700
Product description MC-40a AC120V 50/60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-K7-S-E)
Main contact 3NO
Auxiliary contact 1NO 1NC
Control voltage AC120V 50/60Hz
Type of terminal Screw
Local/Export Export
Standards IEC 60947-4-1, IEC 60947-5-1, UL508
Certificates CE, UL, CCC
KR, LR, BV, DNV, ABS, NK, RINA

Characteristics

Number of poles 3P
Rated operational voltage [Ue] 1000V
Rated insulation voltage [Ui] 1000V
Rated withstand voltage [Uimp] 8kV
Rated frequency [Hz] 50/60Hz
Maximum operating rate in operating cycles per hour(AC3) 50/60Hz
Mechanical durability (mil. operations) 50/60Hz
Electrical durability (mil. operations) 50/60Hz
Rated operational current (AC-1) 60A
Power (AC-1) -
-
-
-
Current (AC-1) -
-
-
-
Motor power (AC-3) 11kW at 200/240V
18.5kW at 380/440V
22kW at 500/550V
22kW at 690V
22kW at 1000V
Motor power (AC-4) 5.5kW at 200/240V
11kW at 380/440V
Rated operational current (AC-3) 40A at 200/240V
40A at 380/440V
32A at 500/550V
23A at 690V
17A at 690V
Rated operational current (AC-4) 25A at 200/240V
24A at 380/440V
Rated operational current (DC-3,5) -
-
-
Rated operational current (DC-1) -
Type 2 Coordination See the Type 2 Coordination Table in the catalog
Motor power (UL/CSA) 3hp at 110~220V for 1 phase motors
7.5hp at 220~240V for 1 phase motors
15hp at 200~208V for 3 phase motors
15hp at 220~240V for 3 phase motors
30hp at 440~480V for 3 phase motors
30hp at 550~600V for 3 phase motors
NEMA size 30hp at 550~600V for 3 phase motors
Rated Short-time withstand current 700A at 1s
300A at 10s
190A at 30s
120A at 1min
80A at 3min
65A at 10min
60A at =15min
Conductor size (AWG) 8~6
Conductor size (mm2) 10~16
The max. number of conductor 10~16
Conductor type Solid, Stranded
Conductor charateristic 65/75? Cu-wire only
Main terminal size M5
Crimp terminal (mm) M5
Torque (lb-in) M5
Torque (Nm) M5
Torque (kgf.cm) M5

Environment

Degree of protection IP20
Ambient air temperature -30? ~ +65? at storage
-5? ~ +55? at operation (AC type)
Operating altitude 3000m(8900ft)
Shock resistance (1/2 sin wave=11ms) 8G at opened
10G at closed
Vibration resistance (Conforming to IEC68-2-6) (5~300Hz) 2G at opened
4G at closed
Flame resistance V0 at conforming to UL94
960? at conforming to IEC695-2-1
REACH Yes
RoHS Yes
WEEE Yes

Dimensions

Weight 0.5kg
Size width 57mm / 2.24inch
Size height 83mm / 3.27inch
Size depth 90mm / 3.54inch

Control coil

Control voltage AC120V 50/60Hz
Control voltage limit [Uc] 85~110%
Consumption at 20℃ 90VA at inrush
9VA at holding
Heat dissipation 2.7W at holding
Operating time 15~30ms at closing
4~19ms at opening

Applicable Accessories
Product form

General Product code 1337006700 Product description MC-40a AC120V 50/60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-K7-S-E) Main contact 3NO Auxiliary contact 1NO... Read more

SKU: MC40A-30-11-K7-S-E

$32.38 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    General

    Product code 1337006700
    Product description MC-40a AC120V 50/60Hz SCREW 1a1b (Metasol) EXP (MC40A-30-11-K7-S-E)
    Main contact 3NO
    Auxiliary contact 1NO 1NC
    Control voltage AC120V 50/60Hz
    Type of terminal Screw
    Local/Export Export
    Standards IEC 60947-4-1, IEC 60947-5-1, UL508
    Certificates CE, UL, CCC
    KR, LR, BV, DNV, ABS, NK, RINA

    Characteristics

    Number of poles 3P
    Rated operational voltage [Ue] 1000V
    Rated insulation voltage [Ui] 1000V
    Rated withstand voltage [Uimp] 8kV
    Rated frequency [Hz] 50/60Hz
    Maximum operating rate in operating cycles per hour(AC3) 50/60Hz
    Mechanical durability (mil. operations) 50/60Hz
    Electrical durability (mil. operations) 50/60Hz
    Rated operational current (AC-1) 60A
    Power (AC-1) -
    -
    -
    -
    Current (AC-1) -
    -
    -
    -
    Motor power (AC-3) 11kW at 200/240V
    18.5kW at 380/440V
    22kW at 500/550V
    22kW at 690V
    22kW at 1000V
    Motor power (AC-4) 5.5kW at 200/240V
    11kW at 380/440V
    Rated operational current (AC-3) 40A at 200/240V
    40A at 380/440V
    32A at 500/550V
    23A at 690V
    17A at 690V
    Rated operational current (AC-4) 25A at 200/240V
    24A at 380/440V
    Rated operational current (DC-3,5) -
    -
    -
    Rated operational current (DC-1) -
    Type 2 Coordination See the Type 2 Coordination Table in the catalog
    Motor power (UL/CSA) 3hp at 110~220V for 1 phase motors
    7.5hp at 220~240V for 1 phase motors
    15hp at 200~208V for 3 phase motors
    15hp at 220~240V for 3 phase motors
    30hp at 440~480V for 3 phase motors
    30hp at 550~600V for 3 phase motors
    NEMA size 30hp at 550~600V for 3 phase motors
    Rated Short-time withstand current 700A at 1s
    300A at 10s
    190A at 30s
    120A at 1min
    80A at 3min
    65A at 10min
    60A at =15min
    Conductor size (AWG) 8~6
    Conductor size (mm2) 10~16
    The max. number of conductor 10~16
    Conductor type Solid, Stranded
    Conductor charateristic 65/75? Cu-wire only
    Main terminal size M5
    Crimp terminal (mm) M5
    Torque (lb-in) M5
    Torque (Nm) M5
    Torque (kgf.cm) M5

    Environment

    Degree of protection IP20
    Ambient air temperature -30? ~ +65? at storage
    -5? ~ +55? at operation (AC type)
    Operating altitude 3000m(8900ft)
    Shock resistance (1/2 sin wave=11ms) 8G at opened
    10G at closed
    Vibration resistance (Conforming to IEC68-2-6) (5~300Hz) 2G at opened
    4G at closed
    Flame resistance V0 at conforming to UL94
    960? at conforming to IEC695-2-1
    REACH Yes
    RoHS Yes
    WEEE Yes

    Dimensions

    Weight 0.5kg
    Size width 57mm / 2.24inch
    Size height 83mm / 3.27inch
    Size depth 90mm / 3.54inch

    Control coil

    Control voltage AC120V 50/60Hz
    Control voltage limit [Uc] 85~110%
    Consumption at 20℃ 90VA at inrush
    9VA at holding
    Heat dissipation 2.7W at holding
    Operating time 15~30ms at closing
    4~19ms at opening

    Applicable Accessories
