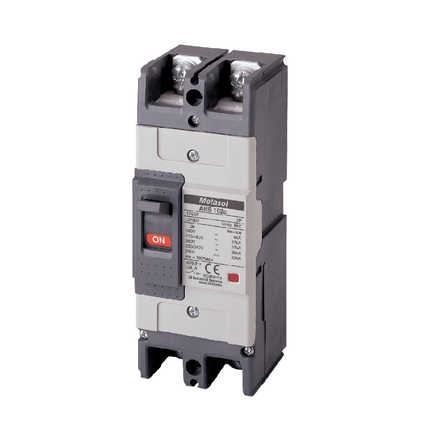

LS ELECTRIC Metasol Molded Case Circuit Breaker MCCB Standard ABH102c 100A

Description

General

Product code 0133002200
Product description ABH102c 100A EXP
Trip Unit FTU(Fixed-thermal, Fixed-magnetic)
[In] rated current 100 A at 40 ℃
Poles description 2P
Protected poles description 2T
Neutral position -
Network type AC (50/60 Hz), DC
Upside connection Front (screw)
Downside connection Front (screw)

Characteristics

[Ue] rated operational voltage (AC 50/60 Hz) 690 V AC
[Ue] rated operational voltage (DC) 500 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ui] rated insulation voltage 1000 V
Mechanical durability 25000 cycles
Electrical durability (AC) 10000 cycles
Electrical durability (DC) -
Utilisation category Category A
Suitability for isolation Yes
Reference standard IEC 60947-2
[Icu] rated Ultimate short-circuit breaking capacity 100 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
50 kA at 380 V AC 50/60 Hz, IEC 60947-2
50 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
35 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
10 kA at 690 V AC 50/60 Hz, IEC 60947-2
30 kA at 250 V DC (2poles in series), Reference
-
-
[Ics] rated service breaking capacity 100 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
50 kA at 380 V AC 50/60 Hz, IEC 60947-2
50 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
35 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
10 kA at 690 V AC 50/60 Hz, IEC 60947-2
30 kA at 250 V DC (2poles in series), Reference
-
-
[Icm] rated short-circuit marking capacity 220 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
105 kA at 380 V AC 50/60 Hz, IEC 60947-2
105 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
73.5 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
17 kA at 690 V AC 50/60 Hz, IEC 60947-32
-
[Icw] rated short-time withstand current -
-
-
-
Trip unit characteristics Thermal-magnetic
L : for overload protection (long time)
-
I : for instantaneous short-circuit protection
-
-
-
-
-
-
[Ir] Long-time pick-up adjustment range Fixed
-
[Iu] Long-time pick-up adjustment range -
-
[tr] Long-time delay adjustment range -
-
[Isd] Short-time pick-up adjustment range -
-
[tsd] Short-time delay adjustment range -
-
-
-
-
-
-
[Ii] Instantaneous pick-up adjustment range Fixed
12 x In, tolerance ±20%
[Ig] Ground-fault protection pick-up adjustment range -
-
[tg] Ground-fault protection time delay adjustment range -
-
-
-
-
-
-
Earth leakage pick-up adjustment range -
-
Earth leakage alam time delay adjustment range -
-
Earth leakage trip time delay adjustment range -
-
[Ip] Pre-trip alarm pick-up adjustment range -
-
[tp] Pre-trip alarm time delay adjustment range -
-
Alarm LED -
-

Environment

Pollution degree 3, IEC 60664-1
Degree of protection IP20, IEC 60529
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…70 °C
Mounting mode Fixed
Mounting support Backplate
Approvals1) (General) CE (Europe)
-
-
CCC (China)
EAC (Russia)
IC (Korea)
Approvals (Marine) -
-
-
-
-
-
-

1) LS ELECTRIC's standard products are designed for CE.

To check the product with regional certificates, please contact LSE sales representatives.


Dimensions

Product Width 60 mm
Height 155 mm
Depth 60 mm
Weight 0.7 kg
Packing Width 340 mm
Height 475 mm
Depth 105 mm
Weight 7.4 kg
Quantity (in a box) 10 pcs.
Product form

General Product code 0133002200 Product description ABH102c 100A EXP Trip Unit FTU(Fixed-thermal, Fixed-magnetic) [In] rated current 100 A at 40... Read more

SKU: ABH102c 100A

$81.84 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: May 20, 2024 17:00:00 +0900

    Description

    General

    Product code 0133002200
    Product description ABH102c 100A EXP
    Trip Unit FTU(Fixed-thermal, Fixed-magnetic)
    [In] rated current 100 A at 40 ℃
    Poles description 2P
    Protected poles description 2T
    Neutral position -
    Network type AC (50/60 Hz), DC
    Upside connection Front (screw)
    Downside connection Front (screw)

    Characteristics

    [Ue] rated operational voltage (AC 50/60 Hz) 690 V AC
    [Ue] rated operational voltage (DC) 500 V DC
    [Uimp] rated impulse withstand voltage 8 kV
    [Ui] rated insulation voltage 1000 V
    Mechanical durability 25000 cycles
    Electrical durability (AC) 10000 cycles
    Electrical durability (DC) -
    Utilisation category Category A
    Suitability for isolation Yes
    Reference standard IEC 60947-2
    [Icu] rated Ultimate short-circuit breaking capacity 100 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
    50 kA at 380 V AC 50/60 Hz, IEC 60947-2
    50 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
    35 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
    10 kA at 690 V AC 50/60 Hz, IEC 60947-2
    30 kA at 250 V DC (2poles in series), Reference
    -
    -
    [Ics] rated service breaking capacity 100 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
    50 kA at 380 V AC 50/60 Hz, IEC 60947-2
    50 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
    35 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
    10 kA at 690 V AC 50/60 Hz, IEC 60947-2
    30 kA at 250 V DC (2poles in series), Reference
    -
    -
    [Icm] rated short-circuit marking capacity 220 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
    105 kA at 380 V AC 50/60 Hz, IEC 60947-2
    105 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
    73.5 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
    17 kA at 690 V AC 50/60 Hz, IEC 60947-32
    -
    [Icw] rated short-time withstand current -
    -
    -
    -
    Trip unit characteristics Thermal-magnetic
    L : for overload protection (long time)
    -
    I : for instantaneous short-circuit protection
    -
    -
    -
    -
    -
    -
    [Ir] Long-time pick-up adjustment range Fixed
    -
    [Iu] Long-time pick-up adjustment range -
    -
    [tr] Long-time delay adjustment range -
    -
    [Isd] Short-time pick-up adjustment range -
    -
    [tsd] Short-time delay adjustment range -
    -
    -
    -
    -
    -
    -
    [Ii] Instantaneous pick-up adjustment range Fixed
    12 x In, tolerance ±20%
    [Ig] Ground-fault protection pick-up adjustment range -
    -
    [tg] Ground-fault protection time delay adjustment range -
    -
    -
    -
    -
    -
    -
    Earth leakage pick-up adjustment range -
    -
    Earth leakage alam time delay adjustment range -
    -
    Earth leakage trip time delay adjustment range -
    -
    [Ip] Pre-trip alarm pick-up adjustment range -
    -
    [tp] Pre-trip alarm time delay adjustment range -
    -
    Alarm LED -
    -

    Environment

    Pollution degree 3, IEC 60664-1
    Degree of protection IP20, IEC 60529
    Ambient air temperature for operation -20…70 °C
    Ambient air temperature for storage -40…70 °C
    Mounting mode Fixed
    Mounting support Backplate
    Approvals1) (General) CE (Europe)
    -
    -
    CCC (China)
    EAC (Russia)
    IC (Korea)
    Approvals (Marine) -
    -
    -
    -
    -
    -
    -

    1) LS ELECTRIC's standard products are designed for CE.

    To check the product with regional certificates, please contact LSE sales representatives.


    Dimensions

    Product Width 60 mm
    Height 155 mm
    Depth 60 mm
    Weight 0.7 kg
    Packing Width 340 mm
    Height 475 mm
    Depth 105 mm
    Weight 7.4 kg
    Quantity (in a box) 10 pcs.
