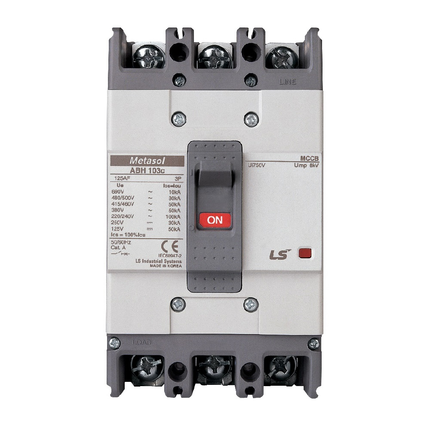

LS ELECTRIC Metasol Molded Case Circuit Breaker MCCB Standard ABH103c 15A

Description

General

Product code 0134001500
Product description ABH103c 15A EXP
Trip Unit FTU(Fixed-thermal, Fixed-magnetic)
[In] rated current 15 A at 40 ℃
Poles description 3P
Protected poles description 3T
Neutral position -
Network type AC (50/60 Hz), DC
Upside connection Front (screw)
Downside connection Front (screw)

Characteristics

[Ue] rated operational voltage (AC 50/60 Hz) 690 V AC
[Ue] rated operational voltage (DC) 500 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ui] rated insulation voltage 1000 V
Mechanical durability 25000 cycles
Electrical durability (AC) 10000 cycles
Electrical durability (DC) -
Utilisation category Category A
Suitability for isolation Yes
Reference standard IEC 60947-2
[Icu] rated Ultimate short-circuit breaking capacity 100 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
50 kA at 380 V AC 50/60 Hz, IEC 60947-2
50 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
35 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
10 kA at 690 V AC 50/60 Hz, IEC 60947-2
-
30 kA at 500 V DC (3poles in series), Reference
-
[Ics] rated service breaking capacity 100 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
50 kA at 380 V AC 50/60 Hz, IEC 60947-2
50 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
35 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
10 kA at 690 V AC 50/60 Hz, IEC 60947-2
-
30 kA at 500 V DC (3poles in series), Reference
-
[Icm] rated short-circuit marking capacity 220 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
105 kA at 380 V AC 50/60 Hz, IEC 60947-2
105 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
73.5 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
17 kA at 690 V AC 50/60 Hz, IEC 60947-33
-
[Icw] rated short-time withstand current -
-
-
-
Trip unit characteristics Thermal-magnetic
L : for overload protection (long time)
-
I : for instantaneous short-circuit protection
-
-
-
-
-
-
[Ir] Long-time pick-up adjustment range Fixed
-
[Iu] Long-time pick-up adjustment range -
-
[tr] Long-time delay adjustment range -
-
[Isd] Short-time pick-up adjustment range -
-
[tsd] Short-time delay adjustment range -
-
-
-
-
-
-
[Ii] Instantaneous pick-up adjustment range Fixed
400 A, tolerance ±20%
[Ig] Ground-fault protection pick-up adjustment range -
-
[tg] Ground-fault protection time delay adjustment range -
-
-
-
-
-
-
Earth leakage pick-up adjustment range -
-
Earth leakage alam time delay adjustment range -
-
Earth leakage trip time delay adjustment range -
-
[Ip] Pre-trip alarm pick-up adjustment range -
-
[tp] Pre-trip alarm time delay adjustment range -
-
Alarm LED -
-

Environment

Pollution degree 3, IEC 60664-1
Degree of protection IP20, IEC 60529
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…70 °C
Mounting mode Fixed
Mounting support Backplate
Approvals1) (General) CE (Europe)
-
-
CCC (China)
EAC (Russia)
IC (Korea)
Approvals (Marine) LR (U.K)
BV (France)
ABS (U.S.A)
GL (Germany)
DNV (Norway)
RINA (Italy)
KR (Korea)

1) LS ELECTRIC's standard products are designed for CE.

To check the product with regional certificates, please contact LSE sales representatives.


Dimensions

Product Width 90 mm
Height 155 mm
Depth 60 mm
Weight 1 kg
Packing Width 340 mm
Height 515 mm
Depth 105 mm
Weight 10.6 kg
Quantity (in a box) 10 pcs.
Product form

General Product code 0134001500 Product description ABH103c 15A EXP Trip Unit FTU(Fixed-thermal, Fixed-magnetic) [In] rated current 15 A at 40... Read more

SKU: ABH103c 15A

$97.02 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      General

      Product code 0134001500
      Product description ABH103c 15A EXP
      Trip Unit FTU(Fixed-thermal, Fixed-magnetic)
      [In] rated current 15 A at 40 ℃
      Poles description 3P
      Protected poles description 3T
      Neutral position -
      Network type AC (50/60 Hz), DC
      Upside connection Front (screw)
      Downside connection Front (screw)

      Characteristics

      [Ue] rated operational voltage (AC 50/60 Hz) 690 V AC
      [Ue] rated operational voltage (DC) 500 V DC
      [Uimp] rated impulse withstand voltage 8 kV
      [Ui] rated insulation voltage 1000 V
      Mechanical durability 25000 cycles
      Electrical durability (AC) 10000 cycles
      Electrical durability (DC) -
      Utilisation category Category A
      Suitability for isolation Yes
      Reference standard IEC 60947-2
      [Icu] rated Ultimate short-circuit breaking capacity 100 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
      50 kA at 380 V AC 50/60 Hz, IEC 60947-2
      50 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
      35 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
      10 kA at 690 V AC 50/60 Hz, IEC 60947-2
      -
      30 kA at 500 V DC (3poles in series), Reference
      -
      [Ics] rated service breaking capacity 100 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
      50 kA at 380 V AC 50/60 Hz, IEC 60947-2
      50 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
      35 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
      10 kA at 690 V AC 50/60 Hz, IEC 60947-2
      -
      30 kA at 500 V DC (3poles in series), Reference
      -
      [Icm] rated short-circuit marking capacity 220 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
      105 kA at 380 V AC 50/60 Hz, IEC 60947-2
      105 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
      73.5 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
      17 kA at 690 V AC 50/60 Hz, IEC 60947-33
      -
      [Icw] rated short-time withstand current -
      -
      -
      -
      Trip unit characteristics Thermal-magnetic
      L : for overload protection (long time)
      -
      I : for instantaneous short-circuit protection
      -
      -
      -
      -
      -
      -
      [Ir] Long-time pick-up adjustment range Fixed
      -
      [Iu] Long-time pick-up adjustment range -
      -
      [tr] Long-time delay adjustment range -
      -
      [Isd] Short-time pick-up adjustment range -
      -
      [tsd] Short-time delay adjustment range -
      -
      -
      -
      -
      -
      -
      [Ii] Instantaneous pick-up adjustment range Fixed
      400 A, tolerance ±20%
      [Ig] Ground-fault protection pick-up adjustment range -
      -
      [tg] Ground-fault protection time delay adjustment range -
      -
      -
      -
      -
      -
      -
      Earth leakage pick-up adjustment range -
      -
      Earth leakage alam time delay adjustment range -
      -
      Earth leakage trip time delay adjustment range -
      -
      [Ip] Pre-trip alarm pick-up adjustment range -
      -
      [tp] Pre-trip alarm time delay adjustment range -
      -
      Alarm LED -
      -

      Environment

      Pollution degree 3, IEC 60664-1
      Degree of protection IP20, IEC 60529
      Ambient air temperature for operation -20…70 °C
      Ambient air temperature for storage -40…70 °C
      Mounting mode Fixed
      Mounting support Backplate
      Approvals1) (General) CE (Europe)
      -
      -
      CCC (China)
      EAC (Russia)
      IC (Korea)
      Approvals (Marine) LR (U.K)
      BV (France)
      ABS (U.S.A)
      GL (Germany)
      DNV (Norway)
      RINA (Italy)
      KR (Korea)

      1) LS ELECTRIC's standard products are designed for CE.

      To check the product with regional certificates, please contact LSE sales representatives.


      Dimensions

      Product Width 90 mm
      Height 155 mm
      Depth 60 mm
      Weight 1 kg
      Packing Width 340 mm
      Height 515 mm
      Depth 105 mm
      Weight 10.6 kg
      Quantity (in a box) 10 pcs.
