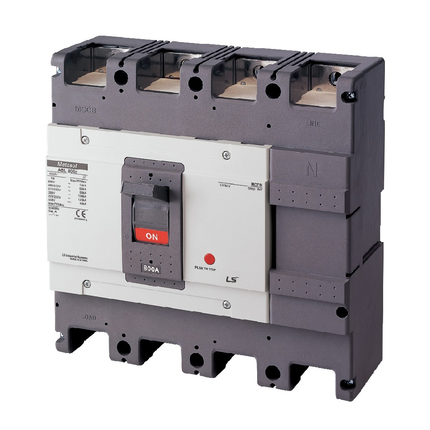

LS ELECTRIC Metasol Molded Case Circuit Breaker MCCB Standard ABN804c 630A

Description

General

Product code 0166002600
Product description ABN804c 630A EXP
Trip Unit FTU(Fixed-thermal, Fixed-magnetic)
[In] rated current 630 A at 40 ℃
Poles description 4P
Protected poles description 3T
Neutral position R-S-T-N
Network type AC (50/60 Hz), DC
Upside connection Front (screw)
Downside connection Front (screw)

Characteristics

[Ue] rated operational voltage (AC 50/60 Hz) 690 V AC
[Ue] rated operational voltage (DC) 500 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ui] rated insulation voltage 1000 V
Mechanical durability 2500 cycles
Electrical durability (AC) 500 cycles
Electrical durability (DC) -
Utilisation category Category A
Suitability for isolation Yes
Reference standard IEC 60947-2
[Icu] rated Ultimate short-circuit breaking capacity 50 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
45 kA at 380 V AC 50/60 Hz, IEC 60947-2
37 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
25 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
8 kA at 690 V AC 50/60 Hz, IEC 60947-2
-
10 kA at 500 V DC (3poles in series), Reference
-
[Ics] rated service breaking capacity 50 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
45 kA at 380 V AC 50/60 Hz, IEC 60947-2
37 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
25 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
8 kA at 690 V AC 50/60 Hz, IEC 60947-2
-
10 kA at 500 V DC (3poles in series), Reference
-
[Icm] rated short-circuit marking capacity 105 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
94.5 kA at 380 V AC 50/60 Hz, IEC 60947-2
77.7 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
52.5 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
13.6 kA at 690 V AC 50/60 Hz, IEC 60947-64
-
[Icw] rated short-time withstand current -
-
-
-
Trip unit characteristics Thermal-magnetic
L : for overload protection (long time)
-
I : for instantaneous short-circuit protection
-
-
-
-
-
-
[Ir] Long-time pick-up adjustment range Fixed
-
[Iu] Long-time pick-up adjustment range -
-
[tr] Long-time delay adjustment range -
-
[Isd] Short-time pick-up adjustment range -
-
[tsd] Short-time delay adjustment range -
-
-
-
-
-
-
[Ii] Instantaneous pick-up adjustment range Fixed
10 x In, tolerance ±20%
[Ig] Ground-fault protection pick-up adjustment range -
-
[tg] Ground-fault protection time delay adjustment range -
-
-
-
-
-
-
Earth leakage pick-up adjustment range -
-
Earth leakage alam time delay adjustment range -
-
Earth leakage trip time delay adjustment range -
-
[Ip] Pre-trip alarm pick-up adjustment range -
-
[tp] Pre-trip alarm time delay adjustment range -
-
Alarm LED -
-

Environment

Pollution degree 3, IEC 60664-1
Degree of protection IP20, IEC 60529
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…70 °C
Mounting mode Fixed
Mounting support Backplate
Approvals1) (General) CE (Europe)
-
-
CCC (China)
EAC (Russia)
-
Approvals (Marine) -
-
-
-
-
-
-

1) LS ELECTRIC's standard products are designed for CE.

To check the product with regional certificates, please contact LSE sales representatives.


Dimensions

Product Width 280 mm
Height 280 mm
Depth 109 mm
Weight 11.4 kg
Packing Width 289 mm
Height 294 mm
Depth 165 mm
Weight 11.4 kg
Quantity (in a box) 1 pcs.
Product form

General Product code 0166002600 Product description ABN804c 630A EXP Trip Unit FTU(Fixed-thermal, Fixed-magnetic) [In] rated current 630 A at 40... Read more

SKU: ABN804c 630A

$789.69 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: May 20, 2024 17:00:00 +0900

    Description

    General

    Product code 0166002600
    Product description ABN804c 630A EXP
    Trip Unit FTU(Fixed-thermal, Fixed-magnetic)
    [In] rated current 630 A at 40 ℃
    Poles description 4P
    Protected poles description 3T
    Neutral position R-S-T-N
    Network type AC (50/60 Hz), DC
    Upside connection Front (screw)
    Downside connection Front (screw)

    Characteristics

    [Ue] rated operational voltage (AC 50/60 Hz) 690 V AC
    [Ue] rated operational voltage (DC) 500 V DC
    [Uimp] rated impulse withstand voltage 8 kV
    [Ui] rated insulation voltage 1000 V
    Mechanical durability 2500 cycles
    Electrical durability (AC) 500 cycles
    Electrical durability (DC) -
    Utilisation category Category A
    Suitability for isolation Yes
    Reference standard IEC 60947-2
    [Icu] rated Ultimate short-circuit breaking capacity 50 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
    45 kA at 380 V AC 50/60 Hz, IEC 60947-2
    37 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
    25 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
    8 kA at 690 V AC 50/60 Hz, IEC 60947-2
    -
    10 kA at 500 V DC (3poles in series), Reference
    -
    [Ics] rated service breaking capacity 50 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
    45 kA at 380 V AC 50/60 Hz, IEC 60947-2
    37 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
    25 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
    8 kA at 690 V AC 50/60 Hz, IEC 60947-2
    -
    10 kA at 500 V DC (3poles in series), Reference
    -
    [Icm] rated short-circuit marking capacity 105 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
    94.5 kA at 380 V AC 50/60 Hz, IEC 60947-2
    77.7 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
    52.5 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
    13.6 kA at 690 V AC 50/60 Hz, IEC 60947-64
    -
    [Icw] rated short-time withstand current -
    -
    -
    -
    Trip unit characteristics Thermal-magnetic
    L : for overload protection (long time)
    -
    I : for instantaneous short-circuit protection
    -
    -
    -
    -
    -
    -
    [Ir] Long-time pick-up adjustment range Fixed
    -
    [Iu] Long-time pick-up adjustment range -
    -
    [tr] Long-time delay adjustment range -
    -
    [Isd] Short-time pick-up adjustment range -
    -
    [tsd] Short-time delay adjustment range -
    -
    -
    -
    -
    -
    -
    [Ii] Instantaneous pick-up adjustment range Fixed
    10 x In, tolerance ±20%
    [Ig] Ground-fault protection pick-up adjustment range -
    -
    [tg] Ground-fault protection time delay adjustment range -
    -
    -
    -
    -
    -
    -
    Earth leakage pick-up adjustment range -
    -
    Earth leakage alam time delay adjustment range -
    -
    Earth leakage trip time delay adjustment range -
    -
    [Ip] Pre-trip alarm pick-up adjustment range -
    -
    [tp] Pre-trip alarm time delay adjustment range -
    -
    Alarm LED -
    -

    Environment

    Pollution degree 3, IEC 60664-1
    Degree of protection IP20, IEC 60529
    Ambient air temperature for operation -20…70 °C
    Ambient air temperature for storage -40…70 °C
    Mounting mode Fixed
    Mounting support Backplate
    Approvals1) (General) CE (Europe)
    -
    -
    CCC (China)
    EAC (Russia)
    -
    Approvals (Marine) -
    -
    -
    -
    -
    -
    -

    1) LS ELECTRIC's standard products are designed for CE.

    To check the product with regional certificates, please contact LSE sales representatives.


    Dimensions

    Product Width 280 mm
    Height 280 mm
    Depth 109 mm
    Weight 11.4 kg
    Packing Width 289 mm
    Height 294 mm
    Depth 165 mm
    Weight 11.4 kg
    Quantity (in a box) 1 pcs.
