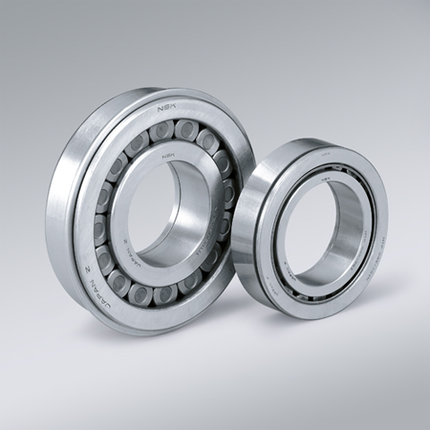

NSK Cylindrical Roller Bearings, Single-Row  Nj-Type, NJ219W ,D=95

Description

NSK Cylindrical Roller Bearings, Single-Row  Nj-Type, NJ219W ,D=95



Bearing
Numbers
Boundary Dimensions
(mm)
Basic Load Ratings
(kN)
Limiting Speeds
(min-1)
Mass
(kg)
approx.
d D B r
min.
r1
min.
Fw Ew Cr C0r Thermal
Reference
Mechanical Grease Oil
NJ219W 95 170 32 2.1 2.1 112.5   220 265 4300 6700 3800 4500 3.23





DESIGN, TYPES, AND FEATURES

Cylindrical roller bearings are classified into the following types depending on whether or not they have ribs on their rings:





Types NU, N, NNU, and NN are suitable as free-end bearings. Types NJ and NF can sustain limited axial loads in one direction. Types NH and NUP can be used as fixed-end bearings.
The NH type consists of NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars
The inner ring loose rib of the NUP type should be mounted so that the marked side is on the outside.





If a cage is nonstandard for a given bearing number the number of rollers may vary; in such a case, the load rating will differ from that listed in the bearing tables.
Many NN double-row bearings have tapered bores, and they are primarily used in the main spindles of machine tools. Cages are made of either molded polyphenylenesulfide (PPS) or machined brass.





□Formulation of Bearing Designations

Single-Row Cylindrical Roller Bearing





①Bearing type NU : Single-row cylindrical roller bearings
(Outer ring with both ribs + Inner ring without rib) Please refer to page C124 for detailed information.
②Dimension Series  10 : 10 Series, 2: 02 Series, 22 : 22 Series, 3 : 03 Series, 23 : 23 Series, 4 : 04 Series,
③Bore number   Less than 03, Bearing bore 01 : 12mm, 02 : 15mm, 03 : 17mm Over 04, Bearing bore Bore number X 5 (mm)
④Internal design E : High load capacity
⑤Cage  W : Pressed-steel Cage, M : Machined Brass Cage, No designation : Machined-brass cage (in Series 10) T : Polyamide 66 resin cage, T7 : L-PPS resin cage
⑥Internal clearance  For All Radial Brgs.
Omitted : CN clearance, C3 : Clearance greater than CN, C4 : Clearance greater than C3, CG : Special Clearance
For Non-Interchangeable Cylindrical Roller Bearings
CC : Normal Clearance, CC3 : Clearance greater than CC, CC4 : Clearance greater than CC3, CCG : Special Clearance
⑦Tolerance class  Omitted : ISO Normal,P6 : ISO Class 6,
P5 : ISO Class 5,P4 : ISO Class 4
⑧NSKHPSTM  & : NSKHPSTM Designation Tolerance Class : ISO Normal
Product form

NSK Cylindrical Roller Bearings, Single-Row  Nj-Type, NJ219W ,D=95   Bearing Numbers Boundary Dimensions (mm) Basic Load Ratings (kN) Limiting Speeds... Read more

SKU: NJ219W
Barcode: NJ219W

$159.31 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: May 28, 2024 17:00:00 +0900

    Description

    NSK Cylindrical Roller Bearings, Single-Row  Nj-Type, NJ219W ,D=95



    Bearing
    Numbers
    Boundary Dimensions
    (mm)
    Basic Load Ratings
    (kN)
    Limiting Speeds
    (min-1)
    Mass
    (kg)
    approx.
    d D B r
    min.
    r1
    min.
    Fw Ew Cr C0r Thermal
    Reference
    Mechanical Grease Oil
    NJ219W 95 170 32 2.1 2.1 112.5   220 265 4300 6700 3800 4500 3.23





    DESIGN, TYPES, AND FEATURES

    Cylindrical roller bearings are classified into the following types depending on whether or not they have ribs on their rings:





    Types NU, N, NNU, and NN are suitable as free-end bearings. Types NJ and NF can sustain limited axial loads in one direction. Types NH and NUP can be used as fixed-end bearings.
    The NH type consists of NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars
    The inner ring loose rib of the NUP type should be mounted so that the marked side is on the outside.





    If a cage is nonstandard for a given bearing number the number of rollers may vary; in such a case, the load rating will differ from that listed in the bearing tables.
    Many NN double-row bearings have tapered bores, and they are primarily used in the main spindles of machine tools. Cages are made of either molded polyphenylenesulfide (PPS) or machined brass.





    □Formulation of Bearing Designations

    Single-Row Cylindrical Roller Bearing





    ①Bearing type NU : Single-row cylindrical roller bearings
    (Outer ring with both ribs + Inner ring without rib) Please refer to page C124 for detailed information.
    ②Dimension Series  10 : 10 Series, 2: 02 Series, 22 : 22 Series, 3 : 03 Series, 23 : 23 Series, 4 : 04 Series,
    ③Bore number   Less than 03, Bearing bore 01 : 12mm, 02 : 15mm, 03 : 17mm Over 04, Bearing bore Bore number X 5 (mm)
    ④Internal design E : High load capacity
    ⑤Cage  W : Pressed-steel Cage, M : Machined Brass Cage, No designation : Machined-brass cage (in Series 10) T : Polyamide 66 resin cage, T7 : L-PPS resin cage
    ⑥Internal clearance  For All Radial Brgs.
    Omitted : CN clearance, C3 : Clearance greater than CN, C4 : Clearance greater than C3, CG : Special Clearance
    For Non-Interchangeable Cylindrical Roller Bearings
    CC : Normal Clearance, CC3 : Clearance greater than CC, CC4 : Clearance greater than CC3, CCG : Special Clearance
    ⑦Tolerance class  Omitted : ISO Normal,P6 : ISO Class 6,
    P5 : ISO Class 5,P4 : ISO Class 4
    ⑧NSKHPSTM  & : NSKHPSTM Designation Tolerance Class : ISO Normal
