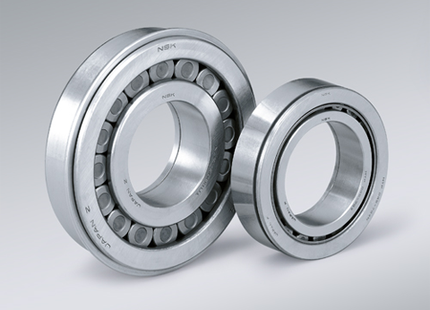

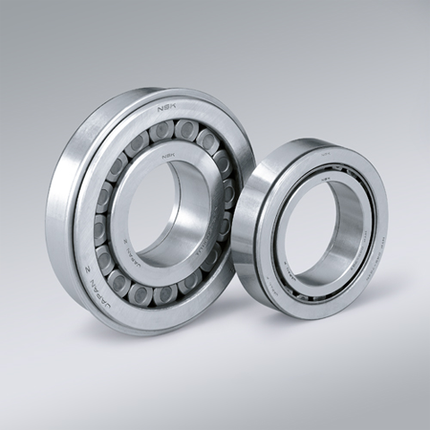

NSK Cylindrical Roller Bearings, Single-Row  Nj-Type, NJ2212W ,D=60

Description

NSK Cylindrical Roller Bearings, Single-Row  Nj-Type, NJ2212W ,D=60



Bearing
Numbers
Boundary Dimensions
(mm)
Basic Load Ratings
(kN)
Limiting Speeds
(min-1)
Mass
(kg)
approx.
d D B r
min.
r1
min.
Fw Ew Cr C0r Thermal
Reference
Mechanical Grease Oil
NJ2212W 60 110 28 1.5 1.5 72   131 157 6300 9500 5300 6300 1.22


DESIGN, TYPES, AND FEATURES



Cylindrical roller bearings are classified into the following types depending on whether or not they have ribs on their rings:





Types NU, N, NNU, and NN are suitable as free-end bearings. Types NJ and NF can sustain limited axial loads in one direction. Types NH and NUP can be used as fixed-end bearings.
The NH type consists of NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars
The inner ring loose rib of the NUP type should be mounted so that the marked side is on the outside.





If a cage is nonstandard for a given bearing number the number of rollers may vary; in such a case, the load rating will differ from that listed in the bearing tables.
Many NN double-row bearings have tapered bores, and they are primarily used in the main spindles of machine tools. Cages are made of either molded polyphenylenesulfide (PPS) or machined brass.





□Formulation of Bearing Designations

Single-Row Cylindrical Roller Bearing





①Bearing type NU : Single-row cylindrical roller bearings
(Outer ring with both ribs + Inner ring without rib) Please refer to page C124 for detailed information.
②Dimension Series  10 : 10 Series, 2: 02 Series, 22 : 22 Series, 3 : 03 Series, 23 : 23 Series, 4 : 04 Series,
③Bore number   Less than 03, Bearing bore 01 : 12mm, 02 : 15mm, 03 : 17mm Over 04, Bearing bore Bore number X 5 (mm)
④Internal design E : High load capacity
⑤Cage  W : Pressed-steel Cage, M : Machined Brass Cage, No designation : Machined-brass cage (in Series 10) T : Polyamide 66 resin cage, T7 : L-PPS resin cage
⑥Internal clearance  For All Radial Brgs.
Omitted : CN clearance, C3 : Clearance greater than CN, C4 : Clearance greater than C3, CG : Special Clearance
For Non-Interchangeable Cylindrical Roller Bearings
CC : Normal Clearance, CC3 : Clearance greater than CC, CC4 : Clearance greater than CC3, CCG : Special Clearance
⑦Tolerance class  Omitted : ISO Normal,P6 : ISO Class 6,
P5 : ISO Class 5,P4 : ISO Class 4
⑧NSKHPSTM  & : NSKHPSTM Designation Tolerance Class : ISO Normal
Product form

NSK Cylindrical Roller Bearings, Single-Row  Nj-Type, NJ2212W ,D=60   Bearing Numbers Boundary Dimensions (mm) Basic Load Ratings (kN) Limiting Speeds... Read more

SKU: NJ2212W
Barcode: NJ2212W

$72.21 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      NSK Cylindrical Roller Bearings, Single-Row  Nj-Type, NJ2212W ,D=60



      Bearing
      Numbers
      Boundary Dimensions
      (mm)
      Basic Load Ratings
      (kN)
      Limiting Speeds
      (min-1)
      Mass
      (kg)
      approx.
      d D B r
      min.
      r1
      min.
      Fw Ew Cr C0r Thermal
      Reference
      Mechanical Grease Oil
      NJ2212W 60 110 28 1.5 1.5 72   131 157 6300 9500 5300 6300 1.22


      DESIGN, TYPES, AND FEATURES



      Cylindrical roller bearings are classified into the following types depending on whether or not they have ribs on their rings:





      Types NU, N, NNU, and NN are suitable as free-end bearings. Types NJ and NF can sustain limited axial loads in one direction. Types NH and NUP can be used as fixed-end bearings.
      The NH type consists of NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars
      The inner ring loose rib of the NUP type should be mounted so that the marked side is on the outside.





      If a cage is nonstandard for a given bearing number the number of rollers may vary; in such a case, the load rating will differ from that listed in the bearing tables.
      Many NN double-row bearings have tapered bores, and they are primarily used in the main spindles of machine tools. Cages are made of either molded polyphenylenesulfide (PPS) or machined brass.





      □Formulation of Bearing Designations

      Single-Row Cylindrical Roller Bearing





      ①Bearing type NU : Single-row cylindrical roller bearings
      (Outer ring with both ribs + Inner ring without rib) Please refer to page C124 for detailed information.
      ②Dimension Series  10 : 10 Series, 2: 02 Series, 22 : 22 Series, 3 : 03 Series, 23 : 23 Series, 4 : 04 Series,
      ③Bore number   Less than 03, Bearing bore 01 : 12mm, 02 : 15mm, 03 : 17mm Over 04, Bearing bore Bore number X 5 (mm)
      ④Internal design E : High load capacity
      ⑤Cage  W : Pressed-steel Cage, M : Machined Brass Cage, No designation : Machined-brass cage (in Series 10) T : Polyamide 66 resin cage, T7 : L-PPS resin cage
      ⑥Internal clearance  For All Radial Brgs.
      Omitted : CN clearance, C3 : Clearance greater than CN, C4 : Clearance greater than C3, CG : Special Clearance
      For Non-Interchangeable Cylindrical Roller Bearings
      CC : Normal Clearance, CC3 : Clearance greater than CC, CC4 : Clearance greater than CC3, CCG : Special Clearance
      ⑦Tolerance class  Omitted : ISO Normal,P6 : ISO Class 6,
      P5 : ISO Class 5,P4 : ISO Class 4
      ⑧NSKHPSTM  & : NSKHPSTM Designation Tolerance Class : ISO Normal
