Description
CKD RB500 — Small Regulator RB500 Series, genuine CKD product.
Overview
The CKD RB500 Series is a small regulator that maintains a constant downstream air pressure for individual actuators or instruments. A diaphragm balances spring force against outlet pressure to keep the setting stable as supply fluctuates. Its compact size makes it suitable for mounting inside machines, on panels or directly in tube lines.
Key Features
- Miniature body for point-of-use pressure control
- Push-in or threaded connection versions
- Knob adjustment with locking
- Light weight for in-line installation
Specifications
| Part No. |
Thread Type |
Fluid |
Operating Pressure Range (MPa) |
Port Size |
Max. Operating Pressure (MPa) |
Withstand Pressure (MPa) |
Pressure Gauge Diameter (mm) |
Relief |
Operating Temp. Range (˚C) |
Mass (g) |
| RB500-LLC6 |
Rc |
Compressed air |
0.05～0.7 |
One-touch fitting Φ6 |
1 |
1.5 |
Rc1/8 |
With relief mechanism |
5～60 |
80 |
| RB500-SSC4 |
Rc |
Compressed air |
0.05～0.7 |
One-touch fitting Φ4 |
1 |
1.5 |
Rc1/8 |
With relief mechanism |
5～60 |
80 |
| RB500-SSC6 |
Rc |
Compressed air |
0.05～0.7 |
One-touch fitting Φ6 |
1 |
1.5 |
Rc1/8 |
With relief mechanism |
5～60 |
80 |
How to Order
Choose the connection type and tube size, and confirm the set-pressure range. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

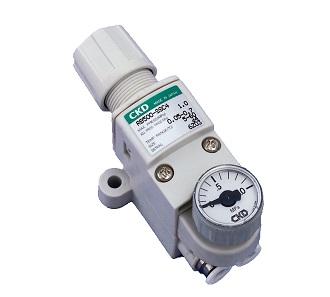

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
