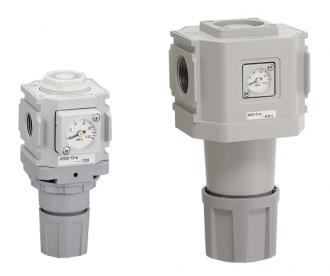

This regulator from the CKD Selex lineup reduces supply air to a stable working pressure for cylinders, tools and valves. A diaphragm balances spring force against outlet pressure to hold the setting as demand changes. The modular body connects with filters and lubricators, making it a standard element of machine air preparation units.
| Part No. |
Max. Operating Pressure (MPa) |
Air Flow Capacity (m3/min) (ANR) |
Set Pressure Range (MPa) |
Fluid |
Mass (kg) |
Type |
Port Size (Rc) |
Operating Temp. Range (˚C) |
Relief |
Accessories |
Thread Type |
Pressure Gauge |
Flow Direction |
Overall Length (mm) |
| R1000-6-W |
1 |
|
0.05～0.85 |
Compressed air |
0.16 |
White type |
1/8 |
5～60 |
With relief mechanism |
|
Rc |
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
93 |
| R1000-8-W |
|
|
0.05～0.85 |
Compressed air |
0.16 |
White type |
1/4 |
5～60 |
With relief mechanism |
Pressure gauge, nut for panel mount |
Rc |
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
93 |
| R2000-10-W |
1 |
2.0 |
0.05～0.85 |
Compressed air |
0.31 |
|
3/8 |
5～60 |
With relief mechanism |
Pressure gauge, nut for panel mount |
|
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
119.5 |
| R2000-8-W |
1 |
|
0.05～0.85 |
Compressed air |
0.31 |
White type |
1/4 |
5～60 |
With relief mechanism |
Pressure gauge, nut for panel mount |
Rc |
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
|
| R3000-10-W |
1 |
|
0.05～0.85 |
Compressed air |
0.45 |
White type |
3/8 |
5～60 |
With relief mechanism |
|
Rc |
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
136.5 |
| R3000-8-W |
1 |
|
0.05～0.85 |
Compressed air |
0.45 |
White type |
|
5～60 |
With relief mechanism |
Pressure gauge, nut for panel mount |
Rc |
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
136.5 |
| R4000-10-W |
1 |
|
0.05～0.85 |
Compressed air |
0.7 |
White type |
3/8 |
5～60 |
With relief mechanism |
Pressure gauge, nut for panel mount |
Rc |
With standard pressure gauge (G401-W) |
|
145 |
| R4000-15-W |
1 |
|
0.05～0.85 |
Compressed air |
0.7 |
White type |
|
5～60 |
With relief mechanism |
Pressure gauge, nut for panel mount |
Rc |
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
145 |
| R4000-8-W |
1 |
|
0.05～0.85 |
Compressed air |
0.7 |
White type |
1/4 |
5～60 |
With relief mechanism |
Pressure gauge, nut for panel mount |
|
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
145 |
| R8000-20-W |
1 |
|
|
Compressed air |
1.6 |
White type |
3/4 |
5～60 |
With relief mechanism |
Pressure gauge, nut for panel mount |
Rc |
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
199 |
| R8000-25-W |
1 |
|
0.05～0.85 |
Compressed air |
1.6 |
White type |
1 |
5～60 |
With relief mechanism |
Pressure gauge, nut for panel mount |
Rc |
With standard pressure gauge (G401-W) |
Standard flow (left→right) |
|
Check port size, set pressure range, relief function and gauge requirement. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
