Description

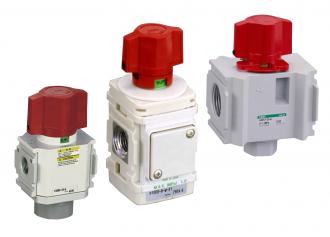

CKD V3000-10-W-BW — Residual Pressure Exhaust Valve White Series V3000-W, genuine CKD product.
Overview
A residual pressure exhaust valve releases compressed air trapped downstream of an air preparation unit, so equipment can be safely serviced. The CKD V3000-W is part of the White Series modular FRL line and connects directly to filters and regulators. It is used as a safety function on machines during maintenance and tool changes.
Key Features
- Exhausts downstream air when the supply is shut off
- Modular connection to White Series components
- Lockable handle helps prevent accidental re-pressurization
- Reduces risk during maintenance work
Specifications
| Part No. |
Operating Force (N) |
Accessories |
Valve Leakage (cm3/min) |
Fluid Temp. (℃) |
Mass (kg) |
Fluid |
Max. Operating Pressure (MPa) |
Cross-Sectional Area (㎟) |
Angle (˚) |
External Leakage (cm3/min) |
Port Size |
Proof Pressure (MPa) |
| V3000-10-W-BW |
[Pushing force] 80N, [Rotating force] 2N·m |
C-type bracket |
10(ANR) |
5～60 |
0.25 |
Compressed air |
1 |
IN・OUTO：70、OUT・EXH：50 |
90 (switched by operating lever) |
10(ANR) |
Rc3/8 |
1.5 |
How to Order
Confirm body size, port size and whether a lock-out handle or silencer is required. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.
Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
