Description
CKD SMW — SMW Series Metering Valve with Silencer, genuine CKD product.
Overview
The CKD SMW Series combines a metering valve with a silencer, fitted directly to valve exhaust ports. It controls exhaust flow to adjust actuator speed while reducing exhaust noise. It is a compact way to meter-out cylinder speed without separate speed controllers. It is popular on small valve manifolds where space for inline speed controllers is limited.
Key Features
- Metering valve and silencer in one unit
- Adjusts actuator speed by exhaust control
- Reduces exhaust noise
- Screw-in installation on exhaust ports
Specifications
| Part No. |
Material (Body) |
Thread Type |
Connection Method |
Applicable Cylinder Bore (Ømm) |
Flow Rate (L/min) |
Cross-Sectional Area (㎟) |
Port Size |
Noise Reduction (dB) |
Port |
| SMW-10A |
Brass |
R |
R |
50～100 |
1700 |
25 |
R3/8 |
20 or more |
R |
| SMW-15A |
Brass |
R |
R |
50～100 |
2600 |
39 |
R1/2 |
20 or more |
R |
| SMW2-6A |
Resin |
R |
R |
20～50 |
370 |
5.6 |
R1/8 |
23 or more |
R |
| SMW2-8A |
Resin |
R |
R |
32～75 |
660 |
9.9 |
R1/4 |
28 or more |
R |
How to Order
Choose the thread size and confirm the exhaust flow range. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

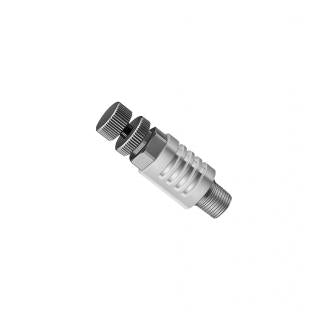

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
