Description
CKD STG-16K — STG Series Guided Cylinder (STG-16), genuine CKD product.
Overview
The CKD STG series is a guided cylinder combining a pneumatic cylinder with guide rods for precise linear motion. This model is the 16 mm bore size. It is used for lifting, pushing and stopping on conveyors and assembly lines. The guides allow tooling to be attached directly without an external slide.
Key Features
- Guide rods for side-load resistance
- Compact body with integrated guides
- Plate for direct tooling mount
- Switch mounting available
Specifications
| Part No. |
Class |
Tube Inner Diameter (Ømm) |
Operation Type |
| STG-16K |
Part |
16 |
Double acting type |
How to Order
Specify bore, stroke, bearing type and switch needs. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

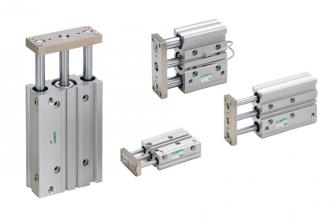

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
