Description

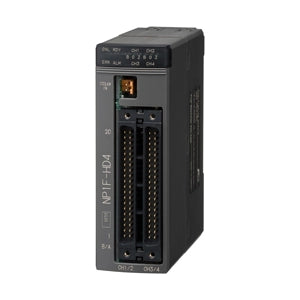

Fuji Electric NP1F-HD4 — 4-Axis High-Speed Pulse Train Positioning Module (Differential Output), genuine Fuji Electric product.
Overview
Genuine Fuji Electric low-voltage control and power distribution component.
Key Features
- Genuine Fuji Electric product
- Confirm the full part number against your existing part before ordering
Specifications
| Part No. |
Mass (g) |
Control Functions |
Occupied Words |
Number of Control Axes |
Position Control |
Accel/Decel Characteristics |
Max. Position Data |
Combined Actuator |
| NP1F-HD4 |
Approx. 190 |
1 Type (Pulse Generation Mode) |
Input: 36 Words + Output: 20 Words (Total 56 Words) |
4 Axes |
Open-Loop Control |
Trapezoidal Accel/Decel, S-Curve Accel/Decel |
2^32-1 Pulses/Command |
Servo System or Stepping Motor with Pulse Train Input |
How to Order
Select the exact part number from the options. Fuji Electric Japanese-market part numbers encode coil voltage, ratings and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
