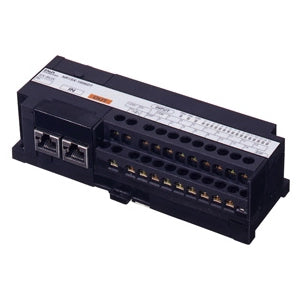

Fuji Electric Communication Module, NR1

  • FUJI ELECTRIC NR1JW-16T65DT Photo on request Genuine FUJI ELECTRIC part

Description

Fuji Electric NR1 — Communication Module, genuine Fuji Electric product.

Overview

Genuine Fuji Electric low-voltage control and power distribution component.

Key Features

  • Genuine Fuji Electric product
  • Confirm the full part number against your existing part before ordering

Specifications

Part No. Classification Mass (g) Mounting Method Power Consumption (W) Rated Voltage (V) Construction Rated Input Voltage (V) Cooling Method Current Consumption (mA) Interface Insulation Method Leakage Current (mA)
NR1JW-16T65DT Input: DC Type2 Approx. 240 - 1 or less Output: DC24 (DC19.2～30), Input: DC24 - DC24 - - OPCN-1 Input and Output Both Photocoupler Isolated
NR1JX-1606DT Input: DC Type2 Approx. 240 - 1.4 or less DC24 - - - - OPCN-1 Photocoupler Isolation
NR1JY-08R07DT - Approx. 250 - 3 or Less AC240 50/60Hz、DC110V - - - - OPCN-1 Photocoupler + Relay
NR1JY-16T05DT - Approx. 240 - 1 or less DC24(DC19.2～30) - - - - OPCN-1 Photocoupler Isolation
NR1SF-HP4DT Input: DC Type Approx. 230 Body: DIN Rail or Screw Mounting (Tightening Torque: 1~1.5N・m) - Input: DC24 IP20 Panel-Mount Type Natural Air Cooling Internal (DC24V): 25 SX Bus Photocoupler Isolation -
NR1SW-16T65DT Input: DC Type2 Approx. 240 - 0.9 or less Output: DC24 (DC19.2～30), Input: DC24 - DC24 - - SX Bus Input and Output Both Photocoupler Isolated
NR1SX-1606DT Input: DC Type2 Approx. 240 - 1.4 or less DC24 - - - - SX Bus Photocoupler Isolation
NR1SY-08R07DT - Approx. 250 - 3 or Less AC240 50/60Hz、DC110V - - - - SX Bus Photocoupler + Relay
NR1SY-16T05DT - Approx. 240 - 0.9 or less DC24(DC19.2～30) - - - - SX Bus Photocoupler Isolation
NR1TW-16T65DT Input: DC Type2 Approx. 240 - 1.4 or less Output: DC24 (DC19.2～30), Input: DC24 - - - T-Link Input and Output Both Photocoupler Isolated Max. 0.1 (When OFF)
NR1TX-1606DT Input: DC Type2 Approx. 240 - 1.4 or less DC24 - - - T-Link Photocoupler Isolation -
NR1TY-08R07DT - Approx. 250 - 3 or Less AC240 50/60Hz、DC110V - - - T-Link Photocoupler + Relay -
NR1TY-16T05DT - Approx. 240 - 1.4 or less DC24(DC19.2～30) - - - T-Link Photocoupler Isolation Max. 0.1 (When OFF)
NR1XV-CB1 - - - - - - - - Extended Common Bar - -

How to Order

Select the exact part number from the options. Fuji Electric Japanese-market part numbers encode coil voltage, ratings and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About Fuji Electric

Fuji Electric is a Japanese manufacturer of power electronics and industrial systems, producing FRENIC inverters, servo systems, MICREX PLCs, magnetic contactors and starters, G-TWIN circuit breakers and command switches used in factories, buildings and infrastructure worldwide.

Ordering & Shipping

  • Genuine Fuji Electric product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

Fuji Electric NR1 — Communication Module, genuine Fuji Electric product.OverviewGenuine Fuji Electric low-voltage control and power distribution component.Key Features Genuine... Read more

SKU: NR1JW-16T65DT

$397.68 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Fuji Electric NR1 — Communication Module, genuine Fuji Electric product.

    Overview

    Genuine Fuji Electric low-voltage control and power distribution component.

    Key Features

    • Genuine Fuji Electric product
    • Confirm the full part number against your existing part before ordering

    Specifications

    Part No. Classification Mass (g) Mounting Method Power Consumption (W) Rated Voltage (V) Construction Rated Input Voltage (V) Cooling Method Current Consumption (mA) Interface Insulation Method Leakage Current (mA)
    NR1JW-16T65DT Input: DC Type2 Approx. 240 - 1 or less Output: DC24 (DC19.2～30), Input: DC24 - DC24 - - OPCN-1 Input and Output Both Photocoupler Isolated
    NR1JX-1606DT Input: DC Type2 Approx. 240 - 1.4 or less DC24 - - - - OPCN-1 Photocoupler Isolation
    NR1JY-08R07DT - Approx. 250 - 3 or Less AC240 50/60Hz、DC110V - - - - OPCN-1 Photocoupler + Relay
    NR1JY-16T05DT - Approx. 240 - 1 or less DC24(DC19.2～30) - - - - OPCN-1 Photocoupler Isolation
    NR1SF-HP4DT Input: DC Type Approx. 230 Body: DIN Rail or Screw Mounting (Tightening Torque: 1~1.5N・m) - Input: DC24 IP20 Panel-Mount Type Natural Air Cooling Internal (DC24V): 25 SX Bus Photocoupler Isolation -
    NR1SW-16T65DT Input: DC Type2 Approx. 240 - 0.9 or less Output: DC24 (DC19.2～30), Input: DC24 - DC24 - - SX Bus Input and Output Both Photocoupler Isolated
    NR1SX-1606DT Input: DC Type2 Approx. 240 - 1.4 or less DC24 - - - - SX Bus Photocoupler Isolation
    NR1SY-08R07DT - Approx. 250 - 3 or Less AC240 50/60Hz、DC110V - - - - SX Bus Photocoupler + Relay
    NR1SY-16T05DT - Approx. 240 - 0.9 or less DC24(DC19.2～30) - - - - SX Bus Photocoupler Isolation
    NR1TW-16T65DT Input: DC Type2 Approx. 240 - 1.4 or less Output: DC24 (DC19.2～30), Input: DC24 - - - T-Link Input and Output Both Photocoupler Isolated Max. 0.1 (When OFF)
    NR1TX-1606DT Input: DC Type2 Approx. 240 - 1.4 or less DC24 - - - T-Link Photocoupler Isolation -
    NR1TY-08R07DT - Approx. 250 - 3 or Less AC240 50/60Hz、DC110V - - - T-Link Photocoupler + Relay -
    NR1TY-16T05DT - Approx. 240 - 1.4 or less DC24(DC19.2～30) - - - T-Link Photocoupler Isolation Max. 0.1 (When OFF)
    NR1XV-CB1 - - - - - - - - Extended Common Bar - -

    How to Order

    Select the exact part number from the options. Fuji Electric Japanese-market part numbers encode coil voltage, ratings and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

    About Fuji Electric

    Fuji Electric is a Japanese manufacturer of power electronics and industrial systems, producing FRENIC inverters, servo systems, MICREX PLCs, magnetic contactors and starters, G-TWIN circuit breakers and command switches used in factories, buildings and infrastructure worldwide.

    Ordering & Shipping

    • Genuine Fuji Electric product sourced through Korean distribution
    • Lead time varies by model; most items ship within 2-3 weeks
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
