Description

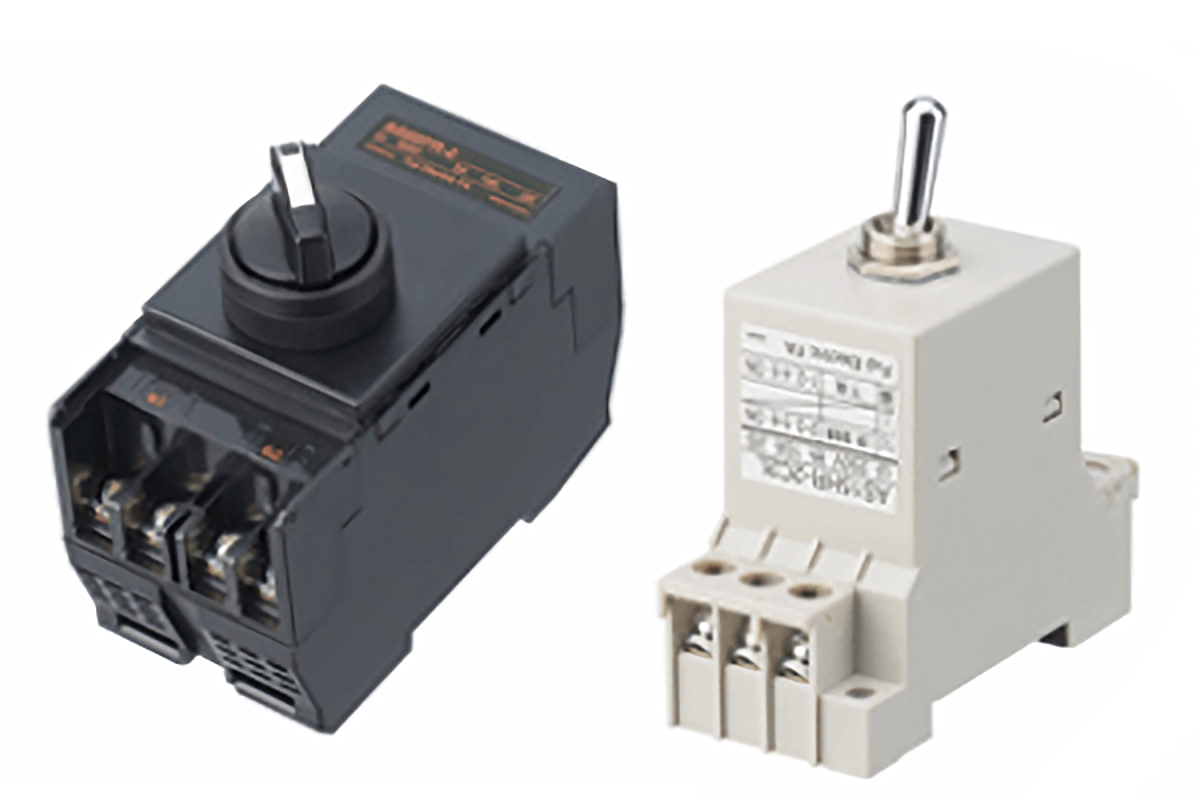

Fuji Electric AS22PR — Distribution Board Operating Switch AS22 Selector Switch, genuine Fuji Electric product.
Overview
Fuji Electric command switches and indicators of the AR/DR, AH and AF series, including pushbuttons, illuminated buttons, selector switches, pilot lights, buzzers and control boxes.
Key Features
- Genuine Fuji Electric control and signaling device
- Select by mounting hole size (Ø16, Ø22, Ø30), color, contacts and lamp voltage
- Japanese-market model codes
Specifications
| Part No. |
Type |
Mounting Method |
Contact Configuration |
Withstand Voltage |
Insulation Voltage (V) |
Notch Angle (°) |
Number of Notches |
Terminal Screw |
Storage Temperature (℃) |
Insulation Resistance (MΩ) |
Operating Ambient Temperature (℃) |
Mounting Hole Diameter (Ømm) |
| AS22PR-211B |
Selector Switch |
Mounts on Standard Distribution Board Breaker Mounting Plate |
1a1b |
Live Parts to Ground / Between Live Parts of Different Poles: AC2500V for 1 min |
AC/DC600 |
90 |
2 |
M3.5 Phillips/Slotted Dual-Use Screw with Square Washer (Self-Lifting Type) |
-30～+80 |
Live Parts to Ground / Between Live Parts of Different Poles: 100 or More |
(In Panel) -5~+50 (no freezing or condensation) |
22 |
| AS22PR-211BX |
Selector Switch |
Rail Mounting |
1a1b |
Live Parts to Ground / Between Live Parts of Different Poles: AC2500V for 1 min |
AC/DC600 |
90 |
2 |
M3.5 Phillips/Slotted Dual-Use Screw with Square Washer (Self-Lifting Type) |
-30～+80 |
Live Parts to Ground / Between Live Parts of Different Poles: 100 or More |
(In Panel) -5~+50 (no freezing or condensation) |
22 |
| AS22PR-311B |
Selector Switch |
Mounts on Standard Distribution Board Breaker Mounting Plate |
1a1b |
Live Parts to Ground / Between Live Parts of Different Poles: AC2500V for 1 min |
AC/DC600 |
45 |
3 |
M3.5 Phillips/Slotted Dual-Use Screw with Square Washer (Self-Lifting Type) |
-30～+80 |
Live Parts to Ground / Between Live Parts of Different Poles: 100 or More |
(In Panel) -5~+50 (no freezing or condensation) |
22 |
| AS22PR-311BX |
Selector Switch |
Rail Mounting |
1a1b |
Live Parts to Ground / Between Live Parts of Different Poles: AC2500V for 1 min |
AC/DC600 |
45 |
3 |
M3.5 Phillips/Slotted Dual-Use Screw with Square Washer (Self-Lifting Type) |
-30～+80 |
Live Parts to Ground / Between Live Parts of Different Poles: 100 or More |
(In Panel) -5~+50 (no freezing or condensation) |
22 |
How to Order
Select the exact part number from the options. Fuji Electric Japanese-market part numbers encode coil voltage, ratings and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About Fuji Electric
Fuji Electric is a Japanese manufacturer of power electronics and industrial systems, producing FRENIC inverters, servo systems, MICREX PLCs, magnetic contactors and starters, G-TWIN circuit breakers and command switches used in factories, buildings and infrastructure worldwide.
Ordering & Shipping
- Genuine Fuji Electric product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
