Description

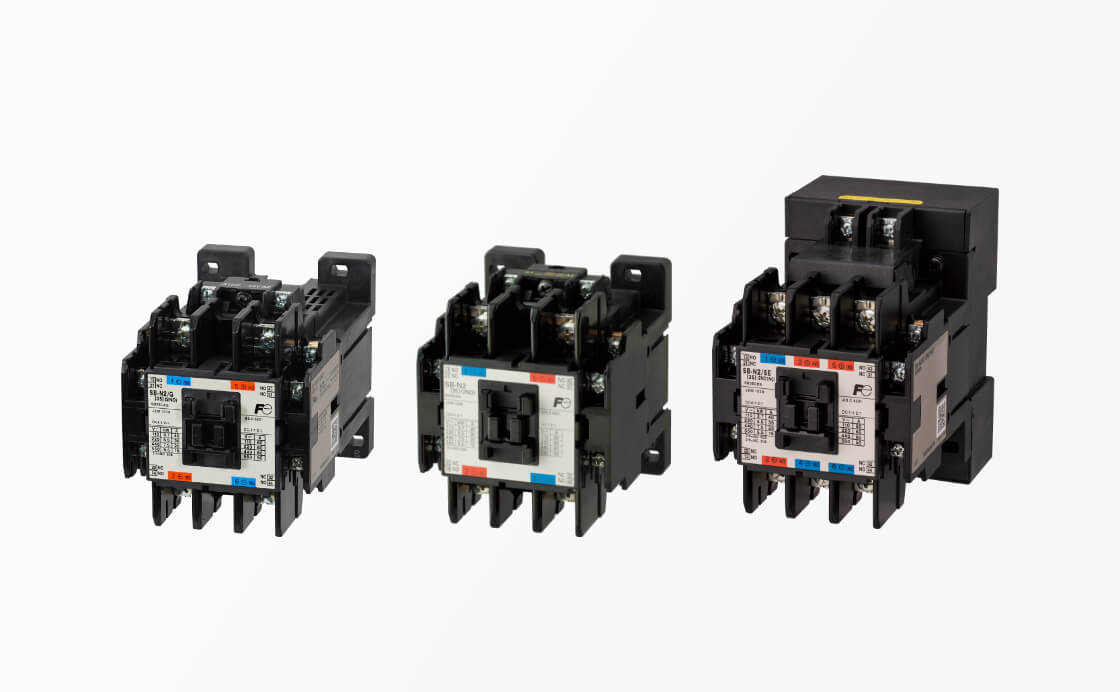

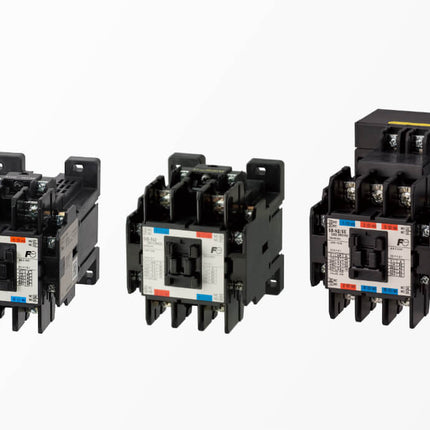

Fuji Electric SB — DC Magnetic Contactor SB Series, genuine Fuji Electric product.
Overview
Fuji Electric SC series magnetic contactors switch motors, heaters and other loads in control panels, with a wide range of coil voltages and auxiliary contact options.
Key Features
- Genuine Fuji Electric SC series magnetic contactor
- Select by frame size, coil voltage (AC/DC) and auxiliary contacts
- Compatible with Fuji thermal overload relays and accessories
Specifications
| Part No. |
Length (mm) |
Width (mm) |
Thickness (mm) |
Mass (kg) |
Rated Coil Voltage (V) |
Type |
Type |
Contact Configuration |
Frame |
Auxiliary Contact |
| SB-10N coil 100V |
210 |
199.5 |
138 |
5.2 |
100 |
Magnetic Contactor |
SB-10N |
2a(2NO) |
Type 10N |
2a2b |
| SB-10N coil 200V |
210 |
199.5 |
138 |
5.2 |
200 |
Magnetic Contactor |
SB-10N |
2a(2NO) |
Type 10N |
2a2b |
| SB-10N coil 400V |
210 |
199.5 |
138 |
5.2 |
400 |
Magnetic Contactor |
SB-10N |
2a(2NO) |
Type 10N |
2a2b |
| SB-10N/VS coil 100V |
210 |
199.5 |
176 |
5.9 |
100 |
Magnetic Contactor |
SB-10N/VS |
2a(2NO) |
Type 10N |
2a |
| SB-10N/VS coil 200V |
210 |
199.5 |
176 |
5.9 |
200 |
Magnetic Contactor |
SB-10N/VS |
2a(2NO) |
Type 10N |
2a |
| SB-10N/VS coil 48V |
210 |
199.5 |
176 |
5.9 |
48 |
Magnetic Contactor |
SB-10N/VS |
2a(2NO) |
Type 10N |
2a |
| SB-10NB coil 100V |
210 |
199.5 |
138 |
5.2 |
100 |
Magnetic Contactor |
SB-10NB |
2a1b(2NO1NC) |
Type 10N |
2a2b |
| SB-10NB coil 100V 4A4B |
210 |
199.5 |
168 |
5.2 |
100 |
Magnetic Contactor |
SB-10NB |
2a1b(2NO1NC) |
Type 10N |
4a4b |
| SB-10NB coil 200V |
210 |
199.5 |
138 |
5.2 |
200 |
Magnetic Contactor |
SB-10NB |
2a1b(2NO1NC) |
Type 10N |
2a2b |
| SB-10NB coil 400V |
210 |
199.5 |
138 |
5.2 |
400 |
Magnetic Contactor |
SB-10NB |
2a1b(2NO1NC) |
Type 10N |
2a2b |
| SB-11N coil 100V |
230 |
211.5 |
148 |
6.7 |
100 |
Magnetic Contactor |
SB-11N |
2a(2NO) |
Type 11N |
2a2b |
| SB-11N coil 200V |
230 |
211.5 |
148 |
6.7 |
200 |
Magnetic Contactor |
SB-11N |
2a(2NO) |
Type 11N |
2a2b |
| SB-11N coil 200V 4A4B |
230 |
211.5 |
178 |
6.7 |
200 |
Magnetic Contactor |
SB-11N |
2a(2NO) |
Type 11N |
4a4b |
| SB-11N coil 400V |
230 |
211.5 |
148 |
6.7 |
400 |
Magnetic Contactor |
SB-11N |
2a(2NO) |
Type 11N |
2a2b |
| SB-11N/VS coil 100V |
230 |
211.5 |
186 |
7.4 |
100 |
Magnetic Contactor |
SB-11N/VS |
2a(2NO) |
Type 11N |
2a |
| SB-11N/VS coil 200V |
230 |
211.5 |
186 |
7.4 |
200 |
Magnetic Contactor |
SB-11N/VS |
2a(2NO) |
Type 11N |
2a |
| SB-11NB coil 100V |
230 |
211.5 |
148 |
6.7 |
100 |
Magnetic Contactor |
SB-11NB |
2a1b(2NO1NC) |
Type 11N |
2a2b |
| SB-11NB coil 200V |
230 |
211.5 |
148 |
6.7 |
200 |
Magnetic Contactor |
SB-11NB |
2a1b(2NO1NC) |
Type 11N |
2a2b |
| SB-11NB coil 400V |
230 |
211.5 |
148 |
6.7 |
400 |
Magnetic Contactor |
SB-11NB |
2a1b(2NO1NC) |
Type 11N |
2a2b |
| SB-5N coil 100V |
148 |
157 |
100 |
2.5 |
100 |
Magnetic Contactor |
SB-5N |
2a(2NO) |
Type 5N |
2a2b |
| SB-5N coil 200V |
148 |
157 |
100 |
2.5 |
200 |
Magnetic Contactor |
SB-5N |
2a(2NO) |
Type 5N |
2a2b |
| SB-5N coil 24V |
148 |
157 |
100 |
2.5 |
24 |
Magnetic Contactor |
SB-5N |
2a(2NO) |
Type 5N |
2a2b |
| SB-5N coil 400V |
148 |
157 |
100 |
2.5 |
400 |
Magnetic Contactor |
SB-5N |
2a(2NO) |
Type 5N |
2a2b |
| SB-5N coil 48V |
148 |
157 |
100 |
2.5 |
48 |
Magnetic Contactor |
SB-5N |
2a(2NO) |
Type 5N |
2a2b |
| SB-5N/VS coil 100V |
148 |
157 |
149 |
2.8 |
100 |
Magnetic Contactor |
SB-5N/VS |
2a(2NO) |
Type 5N |
2a |
| SB-5N/VS coil 200V |
148 |
157 |
149 |
2.8 |
200 |
Magnetic Contactor |
SB-5N/VS |
2a(2NO) |
Type 5N |
2a |
| SB-5N/VS coil 24V |
148 |
157 |
149 |
2.8 |
24 |
Magnetic Contactor |
SB-5N/VS |
2a(2NO) |
Type 5N |
2a |
| SB-5NB coil 100V |
148 |
157 |
100 |
2.5 |
100 |
Magnetic Contactor |
SB-5NB |
2a1b(2NO1NC) |
Type 5N |
2a2b |
| SB-5NB coil 200V |
148 |
157 |
100 |
2.5 |
200 |
Magnetic Contactor |
SB-5NB |
2a1b(2NO1NC) |
Type 5N |
2a2b |
| SB-5NB coil 200V 3A3B |
148 |
157 |
100 |
2.5 |
200 |
Magnetic Contactor |
SB-5NB |
2a1b(2NO1NC) |
Type 5N |
3a3b |
| SB-5NB coil 200V 4A4B |
148 |
157 |
127 |
2.5 |
200 |
Magnetic Contactor |
SB-5NB |
2a1b(2NO1NC) |
Type 5N |
4a4b |
| SB-5NB coil 24V |
148 |
157 |
100 |
2.5 |
24 |
Magnetic Contactor |
SB-5NB |
2a1b(2NO1NC) |
Type 5N |
2a2b |
| SB-5NB coil 400V |
148 |
157 |
100 |
2.5 |
400 |
Magnetic Contactor |
SB-5NB |
2a1b(2NO1NC) |
Type 5N |
2a2b |
| SB-5NB coil 48V |
148 |
157 |
100 |
2.5 |
48 |
Magnetic Contactor |
SB-5NB |
2a1b(2NO1NC) |
Type 5N |
2a2b |
| SB-5NB/UL coil 200V |
- |
- |
- |
- |
200 |
Magnetic Contactor |
SB-5NB/UL |
2a1b(2NO1NC) |
Type 5N |
2a1b |
| SB-6N coil 100V |
148 |
157 |
100 |
2.5 |
100 |
Magnetic Contactor |
SB-6N |
2a(2NO) |
Type 6N |
2a2b |
| SB-6N coil 200V |
148 |
157 |
100 |
2.5 |
200 |
Magnetic Contactor |
SB-6N |
2a(2NO) |
Type 6N |
2a2b |
| SB-6N coil 24V |
148 |
157 |
100 |
2.5 |
24 |
Magnetic Contactor |
SB-6N |
2a(2NO) |
Type 6N |
2a2b |
| SB-6N coil 400V |
148 |
157 |
100 |
2.5 |
400 |
Magnetic Contactor |
SB-6N |
2a(2NO) |
Type 6N |
2a2b |
| SB-6N coil 48V |
148 |
157 |
100 |
2.5 |
48 |
Magnetic Contactor |
SB-6N |
2a(2NO) |
Type 6N |
2a2b |
| SB-6N/VS coil 100V |
148 |
157 |
149 |
2.8 |
100 |
Magnetic Contactor |
SB-6N/VS |
2a(2NO) |
Type 6N |
2a |
| SB-6N/VS coil 200V |
148 |
157 |
149 |
2.8 |
200 |
Magnetic Contactor |
SB-6N/VS |
2a(2NO) |
Type 6N |
2a |
| SB-6N/VS coil 24V |
148 |
157 |
149 |
2.8 |
24 |
Magnetic Contactor |
SB-6N/VS |
2a(2NO) |
Type 6N |
2a |
| SB-6NB coil 100V |
148 |
157 |
100 |
2.5 |
100 |
Magnetic Contactor |
SB-6NB |
2a1b(2NO1NC) |
Type 6N |
2a2b |
| SB-6NB coil 200V |
148 |
157 |
100 |
2.5 |
200 |
Magnetic Contactor |
SB-6NB |
2a1b(2NO1NC) |
Type 6N |
2a2b |
| SB-6NB coil 200V 3A3B |
148 |
157 |
100 |
2.5 |
200 |
Magnetic Contactor |
SB-6NB |
2a1b(2NO1NC) |
Type 6N |
3a3b |
| SB-6NB coil 400V |
148 |
157 |
100 |
2.5 |
400 |
Magnetic Contactor |
SB-6NB |
2a1b(2NO1NC) |
Type 6N |
2a2b |
How to Order
Select the exact part number from the options. Fuji Electric Japanese-market part numbers encode coil voltage, ratings and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About Fuji Electric
Fuji Electric is a Japanese manufacturer of power electronics and industrial systems, producing FRENIC inverters, servo systems, MICREX PLCs, magnetic contactors and starters, G-TWIN circuit breakers and command switches used in factories, buildings and infrastructure worldwide.
Ordering & Shipping
- Genuine Fuji Electric product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.
