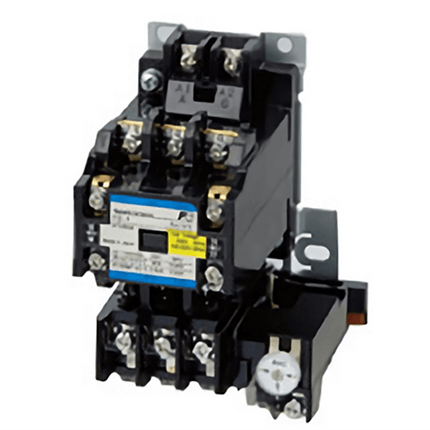

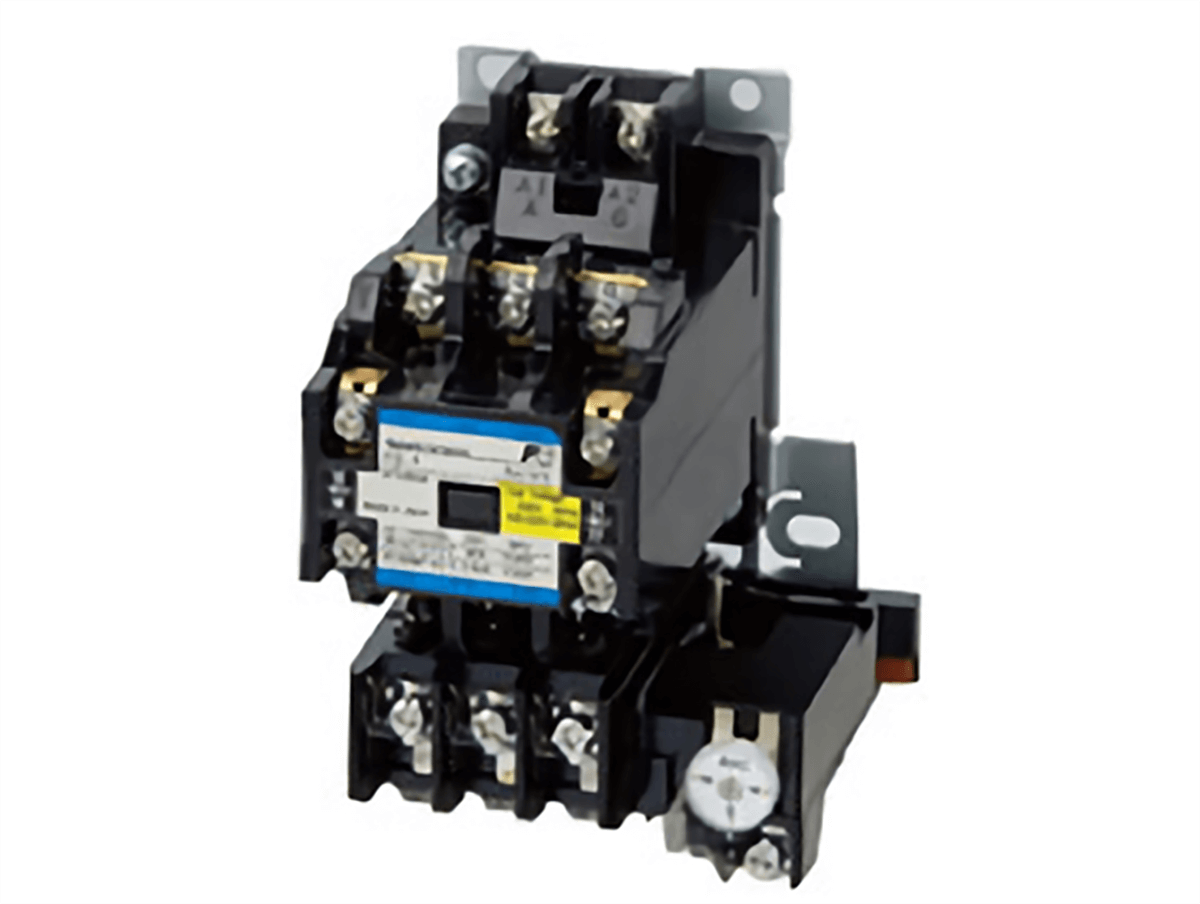

Fuji Electric Magnetic Contactor FC Series Control Coil Voltage Code - FC-0 coil AC220V 1A

Description

Fuji Electric FC — Magnetic Contactor FC Series Control Coil Voltage Code, genuine Fuji Electric product.

Overview

Fuji Electric SC series magnetic contactors switch motors, heaters and other loads in control panels, with a wide range of coil voltages and auxiliary contact options.

Key Features

  • Genuine Fuji Electric SC series magnetic contactor
  • Select by frame size, coil voltage (AC/DC) and auxiliary contacts
  • Compatible with Fuji thermal overload relays and accessories

Specifications

Part No. Length (mm) Width (mm) Thickness (mm) Rated Coil Voltage (V) Type Type Frame Auxiliary Contact Terminal Structure Rated Carrying Current (A) Rated Capacity (kW) 3-Phase Squirrel-Cage Motor (AC-3)
FC-0 coil AC220V 1A 62 57 31 AC220 Magnetic Contactor FC-0 Type 0 1a(1NO) Screw Terminal 20 (200-240V)2.2、(380-440V)2.2
FC-0 coil AC220V 1B 62 57 31 AC220 Magnetic Contactor FC-0 Type 0 1b(1NC) Screw Terminal 20 (200-240V)2.2、(380-440V)2.2
FC-0 coil AC240V 1B 62 57 31 AC240 Magnetic Contactor FC-0 Type 0 1b(1NC) Screw Terminal 20 (200-240V)2.2、(380-440V)2.2
FC-0 coil AC24V 1A 62 57 31 AC24 Magnetic Contactor FC-0 Type 0 1a(1NO) Screw Terminal 20 (200-240V)2.2、(380-440V)2.2
FC-0 coil AC24V 1B 62 57 31 AC24 Magnetic Contactor FC-0 Type 0 1b(1NC) Screw Terminal 20 (200-240V)2.2、(380-440V)2.2
FC-0/G coil DC24V 1A 62 57 31 DC24 Magnetic Contactor FC-0/G Type 0 1a(1NO) Screw Terminal 20 (200-240V)2.2、(380-440V)2.2
FC-0A coil AC200V 1B 51 50.5 34 AC200 Magnetic Contactor FC-0A Type 0A 1b(1NC) PCB Direct-Mount Terminal 8 (200-240V)1.5
FC-0ST coil AC200V 1A 62 56 31 AC200 Magnetic Contactor FC-0T Type 0ST 1a(1NO) Tab Terminal 20 (200-240V)3、(380-440V)4.5
FC-0ST coil AC200V 1B 62 56 31 AC200 Magnetic Contactor FC-0T Type 0ST 1b(1NC) Tab Terminal 20 (200-240V)3、(380-440V)4.5
FC-0T coil AC200V 1B 62 56 31 AC200 Magnetic Contactor FC-0ST Type 0T 1b(1NC) Tab Terminal 20 (200-240V)2.2、(380-440V)2.2
FC-0T coil AC220V 1A 62 56 31 AC220 Magnetic Contactor FC-0T Type 0T 1a(1NO) Tab Terminal 30 (200-240V)2.2、(380-440V)2.2
FC-1 coil AC200V 2A 80 73.5 50 AC200 Magnetic Contactor FC-1 Type 1 2a(2NO) Screw Terminal 30 (200-240V)4、(380-440V)5.5
FC-1 coil AC220V 1A1B 80 73.5 50 AC220 Magnetic Contactor FC-1 Type 1 1a1b(1NO1NC) Screw Terminal 30 (200-240V)4、(380-440V)5.5
FC-1S coil AC200V 1A1B 80 73.5 50 AC200 Magnetic Contactor FC-1S Type 1S 1a1b(1NO1NC) Screw Terminal 30 (200-240V)5.5、(380-440V)7.5
FC-1S coil AC200V 2A 80 73.5 50 AC200 Magnetic Contactor FC-1S Type 1S 2a(2NO) Screw Terminal 30 (200-240V)5.5、(380-440V)7.5
FC-1S coil AC24V 1A1B 80 73.5 50 AC24 Magnetic Contactor FC-1S Type 1S 1a1b(1NO1NC) Screw Terminal 30 (200-240V)5.5、(380-440V)7.5
FC-2S coil AC200V 2A 91.5 89.5 54.5 AC200 Magnetic Contactor FC-2S Type 2S 2a(2NO) Screw Terminal 45 (200-240V)7.5、(380-440V)11
FC-2S coil AC200V 2B 91.5 89.5 54.5 AC200 Magnetic Contactor FC-2S Type 2S 2b(2NC) Screw Terminal 45 (200-240V)7.5、(380-440V)11
FC-2S coil AC240V 1A1B 91.5 89.5 54.5 AC240 Magnetic Contactor FC-2S Type 2S 1a1b(1NO1NC) Screw Terminal 45 (200-240V)7.5、(380-440V)11
FC-2S coil AC24V 1A1B 91.5 89.5 54.5 AC24 Magnetic Contactor FC-2S Type 2S 1a1b(1NO1NC) Screw Terminal 45 (200-240V)7.5、(380-440V)11
FC-3 coil AC200V 1A1B 91.5 89.5 54.5 AC200 Magnetic Contactor FC-3 Type 3 1a1b(1NO1NC) Screw Terminal 60 (200-240V)11、(380-440V)19
FC-3 coil AC200V 2A 91.5 89.5 54.5 AC200 Magnetic Contactor FC-3 Type 3 2a(2NO) Screw Terminal 60 (200-240V)11、(380-440V)19
FC-3 coil AC200V 2B 91.5 89.5 54.5 AC200 Magnetic Contactor FC-3 Type 3 2b(2NC) Screw Terminal 60 (200-240V)11、(380-440V)19
FC-3 coil AC240V 1A1B 91.5 89.5 54.5 AC240 Magnetic Contactor FC-3 Type 3 1a1b(1NO1NC) Screw Terminal 60 (200-240V)11、(380-440V)19
FC-4 coil AC200V 1A1B 104 92 70 AC200 Magnetic Contactor FC-4 Type 4 1a1b(1NO1NC) Screw Terminal 80 (200-240V)15、(380-440V)30
FC-4 coil AC200V 2A 104 92 70 AC200 Magnetic Contactor FC-4 Type 4 2a(2NO) Screw Terminal 80 (200-240V)15、(380-440V)30
FC-4 coil AC200V 2B 104 92 70 AC200 Magnetic Contactor FC-4 Type 4 2b(2NC) Screw Terminal 80 (200-240V)15、(380-440V)30

How to Order

Select the exact part number from the options. Fuji Electric Japanese-market part numbers encode coil voltage, ratings and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About Fuji Electric

Fuji Electric is a Japanese manufacturer of power electronics and industrial systems, producing FRENIC inverters, servo systems, MICREX PLCs, magnetic contactors and starters, G-TWIN circuit breakers and command switches used in factories, buildings and infrastructure worldwide.

Ordering & Shipping

  • Genuine Fuji Electric product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

Fuji Electric FC — Magnetic Contactor FC Series Control Coil Voltage Code, genuine Fuji Electric product.OverviewFuji Electric SC series magnetic... Read more

SKU: FC-0 coil AC220V 1A

$54.15 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
