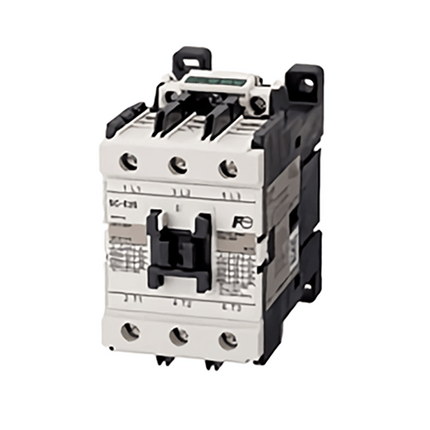

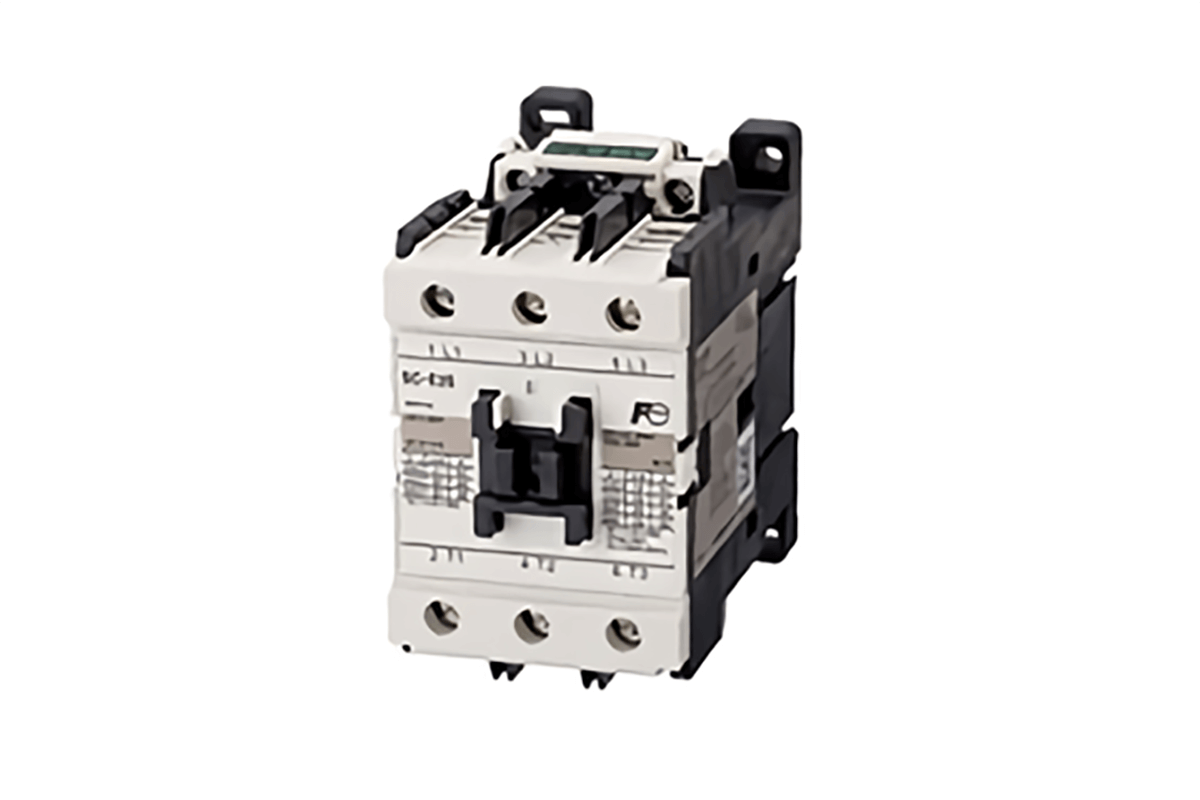

Fuji Electric SC series magnetic contactors switch motors, heaters and other loads in control panels, with a wide range of coil voltages and auxiliary contact options.
| Part No. |
Length (mm) |
Width (mm) |
Thickness (mm) |
Mass (kg) |
Rated Coil Voltage (V) |
Type |
Frame |
Operating Method |
Mounting Screw |
Auxiliary Contact |
Mounting Method |
| SC-E05 coil AC110V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC120V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC200V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC220V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC240V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC24V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC380V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC400V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC440V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC48V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05 coil AC550V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05/G coil DC110V |
108 |
81 |
43 |
0.59 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05/G coil DC220V |
108 |
81 |
43 |
0.59 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05/G coil DC24V |
108 |
81 |
43 |
0.59 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05/G coil DC48V |
108 |
81 |
43 |
0.59 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05/G coil DC60V |
108 |
81 |
43 |
0.59 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05P coil AC200V |
81 |
81 |
43 |
0.33 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05P/G coil DC24V |
108 |
81 |
43 |
0.59 |
|
Magnetic Contactor |
E05 |
Non-Reversing |
M4 |
- |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05PRM coil AC200V 1Ax2 |
- |
- |
- |
- |
AC200 |
Magnetic Contactor |
E05 |
Reversing Type |
- |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05PRM coil AC200V 2A2Bx2 |
- |
- |
- |
- |
AC200 |
Magnetic Contactor |
E05 |
Reversing Type |
- |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05PRM coil AC200V 2Bx2 |
- |
- |
- |
- |
AC200 |
Magnetic Contactor |
E05 |
Reversing Type |
- |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05PRM coil AC200V 3A1Bx2 |
- |
- |
- |
- |
AC200 |
Magnetic Contactor |
E05 |
Reversing Type |
- |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05PRM/G coil DC24V 1Ax2 |
- |
- |
- |
- |
DC24 |
Magnetic Contactor |
E05 |
Reversing Type |
- |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05PRM/G coil DC24V 2A2Bx2 |
- |
- |
- |
- |
DC24 |
Magnetic Contactor |
E05 |
Reversing Type |
- |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05PRM/G coil DC24V 2Bx2 |
- |
- |
- |
- |
DC24 |
Magnetic Contactor |
E05 |
Reversing Type |
- |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05PRM/G coil DC24V 3A1Bx2 |
- |
- |
- |
- |
DC24 |
Magnetic Contactor |
E05 |
Reversing Type |
- |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC110V 1Ax2 |
109 |
99 |
81 |
- |
AC110 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC110V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC110 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC110V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC110 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC110V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC110 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC120V 1Ax2 |
109 |
99 |
81 |
- |
AC120 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC120V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC120 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC120V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC120 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC120V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC120 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC200V 1Ax2 |
109 |
99 |
81 |
- |
AC200 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC200V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC200 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC200V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC200 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC200V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC200 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC220V 1Ax2 |
109 |
99 |
81 |
- |
AC220 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC220V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC220 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC220V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC220 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC220V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC220 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC240V 1Ax2 |
109 |
99 |
81 |
- |
AC240 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC240V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC240 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC240V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC240 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC240V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC240 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC24V 1Ax2 |
109 |
99 |
81 |
- |
AC24 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC24V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC24 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC24V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC24 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC24V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC24 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC380V 1Ax2 |
109 |
99 |
81 |
- |
AC380 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC380V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC380 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC380V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC380 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC380V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC380 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC400V 1Ax2 |
109 |
99 |
81 |
- |
AC400 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC400V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC400 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC400V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC400 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC400V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC400 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC440V 1Ax2 |
109 |
99 |
81 |
- |
AC440 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC440V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC440 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC440V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC440 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC440V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC440 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC48V 1Ax2 |
109 |
99 |
81 |
- |
AC48 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC48V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC48 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC48V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC48 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC48V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC48 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC500V 1Ax2 |
109 |
99 |
81 |
- |
AC500 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC500V 2A2Bx2 |
109 |
99 |
81 |
0.8 |
AC500 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC500V 2Bx2 |
109 |
99 |
81 |
0.77 |
AC500 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM coil AC500V 3A1Bx2 |
109 |
99 |
81 |
0.8 |
AC500 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC100V 1Ax2 |
136 |
99 |
81 |
- |
DC100 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC100V 2A2Bx2 |
136 |
99 |
81 |
1.32 |
DC100 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC100V 2Bx2 |
136 |
99 |
81 |
1.29 |
DC100 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC100V 3A1Bx2 |
136 |
99 |
81 |
1.32 |
DC100 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC110V 1Ax2 |
136 |
99 |
81 |
- |
DC110 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC110V 2A2Bx2 |
136 |
99 |
81 |
1.32 |
DC110 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC110V 2Bx2 |
136 |
99 |
81 |
1.29 |
DC110 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC110V 3A1Bx2 |
136 |
99 |
81 |
1.32 |
DC110 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC120V 1Ax2 |
136 |
99 |
81 |
- |
DC120 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC120V 2A2Bx2 |
136 |
99 |
81 |
1.32 |
DC120 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC120V 2Bx2 |
136 |
99 |
81 |
1.29 |
DC120 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC120V 3A1Bx2 |
136 |
99 |
81 |
1.32 |
DC120 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC12V 1Ax2 |
136 |
99 |
81 |
- |
DC12 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC12V 2A2Bx2 |
136 |
99 |
81 |
1.32 |
DC12 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC12V 2Bx2 |
136 |
99 |
81 |
1.29 |
DC12 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC12V 3A1Bx2 |
136 |
99 |
81 |
1.32 |
DC12 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC200V 1Ax2 |
136 |
99 |
81 |
- |
DC200 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC200V 2A2Bx2 |
136 |
99 |
81 |
1.32 |
DC200 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC200V 2Bx2 |
136 |
99 |
81 |
1.29 |
DC200 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC200V 3A1Bx2 |
136 |
99 |
81 |
1.32 |
DC200 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC210V 1Ax2 |
136 |
99 |
81 |
- |
DC210 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC210V 2A2Bx2 |
136 |
99 |
81 |
1.32 |
DC210 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC210V 2Bx2 |
136 |
99 |
81 |
1.29 |
DC210 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC210V 3A1Bx2 |
136 |
99 |
81 |
1.32 |
DC210 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC220V 1Ax2 |
136 |
99 |
81 |
- |
DC220 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC220V 2A2Bx2 |
136 |
99 |
81 |
1.32 |
DC220 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC220V 2Bx2 |
136 |
99 |
81 |
1.29 |
DC220 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC220V 3A1Bx2 |
136 |
99 |
81 |
1.32 |
DC220 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
3a1b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC24V 1Ax2 |
136 |
99 |
81 |
- |
DC24 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
1a×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
| SC-E05RM/G coil DC24V 2A2Bx2 |
136 |
99 |
81 |
1.32 |
DC24 |
Magnetic Contactor |
E05 |
Reversing Type |
M4 |
2a2b×2 |
Screw Mounting, 35mm Wide Top-Hat Rail Mounting |
Select the exact part number from the options. Fuji Electric Japanese-market part numbers encode coil voltage, ratings and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
Fuji Electric is a Japanese manufacturer of power electronics and industrial systems, producing FRENIC inverters, servo systems, MICREX PLCs, magnetic contactors and starters, G-TWIN circuit breakers and command switches used in factories, buildings and infrastructure worldwide.
