Name: IDEC Ø16 LB Series Key Selector Switch (Square), LB2K (Part 1)
Brand: IDEC
SKU: LB2K-21ST1B
Price: 33.84 USD

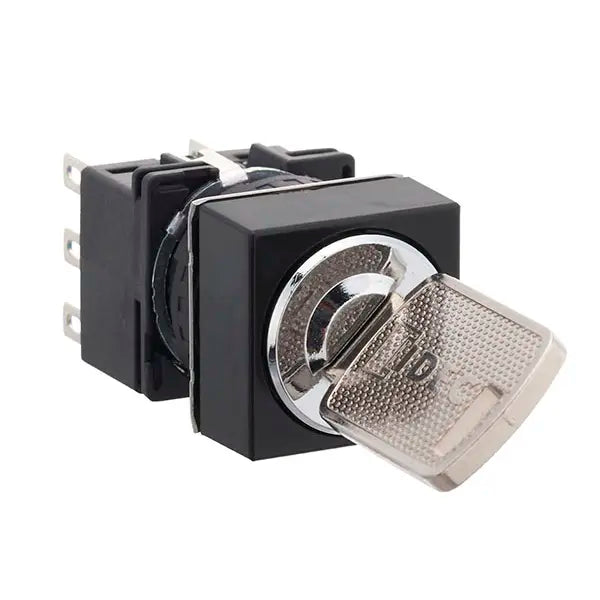

IDEC Ø16 LB Series Key Selector Switch (Square), LB2K (Part 1)

VendorIDEC

Description

IDEC LB2K — Ø16 LB Series Key Selector Switch (Square), genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

Genuine IDEC control and signaling device
Select by mounting hole size, shape, color, contacts and LED voltage
Full range of guards, nameplates and replacement parts

Specifications

Part No.	Protection Rating	Contact Configuration	Terminal Type	Notch Angle (°)	Number of Notches	Body Shape	Mounting Hole Diameter (Ømm)	Contact Material	Operation	Key Position Fixed Type	Operator Shape	Mounting Hole Dimensions (mm)
LB2K-21ST1B	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21ST1VB	IP65	1c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21ST2B	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21ST2VB	IP65	2c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21ST3B	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21ST3VB	IP65	3c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21ST5B	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21ST6B	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21ST7B	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21T1B	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21T1VB	IP65	1c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21T2B	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21T2VB	IP65	2c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21T3B	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21T3VB	IP65	3c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21T5B	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21T6B	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-21T7B	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST1A	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2ST1B	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST1C	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2ST1VA	IP65	1c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2ST1VB	IP65	1c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST1VC	IP65	1c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2ST2A	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2ST2B	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST2C	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2ST2VA	IP65	2c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2ST2VB	IP65	2c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST2VC	IP65	2c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2ST3A	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2ST3B	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST3C	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2ST3VA	IP65	3c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2ST3VB	IP65	3c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST3VC	IP65	3c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2ST5B	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST5C	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2ST6A	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2ST6B	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST6C	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2ST7A	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2ST7B	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2ST7C	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2T1A	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2T1B	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2T1C	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2T1VA	IP65	1c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2T1VB	IP65	1c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2T1VC	IP65	1c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2T2A	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2T2B	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2T2C	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2T2VA	IP65	2c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2T2VB	IP65	2c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2T2VC	IP65	2c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2T3A	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2T3B	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2T3C	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2T3VB	IP65	3c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2T3VC	IP65	3c	PCB Terminal	90	2	Separate Type	16	Gold Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2T5A	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2T5B	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2T5C	IP65	1c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2T6A	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2T6B	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2T6C	IP65	2c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-2T7A	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	All Excluded	Key Operated	Ø16
LB2K-2T7B	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-2T7C	IP65	3c	Solder/Tab Terminal Type	90	2	Separate Type	16	Silver Contact	Maintained	Key Removable: Right (Not Left)	Key Operated	Ø16
LB2K-31ST2B	IP65	2c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31ST2D	IP65	2c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31ST2G	IP65	2c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16
LB2K-31ST2VB	IP65	2c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31ST2VD	IP65	2c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31ST2VG	IP65	2c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16
LB2K-31ST3B	IP65	3c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31ST3D	IP65	3c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31ST3G	IP65	3c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16
LB2K-31ST3VB	IP65	3c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31ST3VD	IP65	3c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31ST3VG	IP65	3c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16
LB2K-31ST6B	IP65	2c	Solder/Tab Terminal Type	45	3	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31ST6D	IP65	2c	Solder/Tab Terminal Type	45	3	Separate Type	16	Silver Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31ST6G	IP65	2c	Solder/Tab Terminal Type	45	3	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16
LB2K-31ST7B	IP65	3c	Solder/Tab Terminal Type	45	3	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31ST7D	IP65	3c	Solder/Tab Terminal Type	45	3	Separate Type	16	Silver Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31ST7G	IP65	3c	Solder/Tab Terminal Type	45	3	Separate Type	16	Silver Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16
LB2K-31T2B	IP65	2c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31T2D	IP65	2c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31T2G	IP65	2c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16
LB2K-31T2VB	IP65	2c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31T2VD	IP65	2c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31T2VG	IP65	2c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16
LB2K-31T3B	IP65	3c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31T3D	IP65	3c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31T3G	IP65	3c	Solder/Tab Terminal Type	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16
LB2K-31T3VB	IP65	3c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Right)	Key Operated	Ø16
LB2K-31T3VD	IP65	3c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Center (Not Left/Right)	Key Operated	Ø16
LB2K-31T3VG	IP65	3c	PCB Terminal	45	3	Separate Type	16	Gold Contact	Spring Return	Key Removable: Left (Not Center/Right)	Key Operated	Ø16

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
