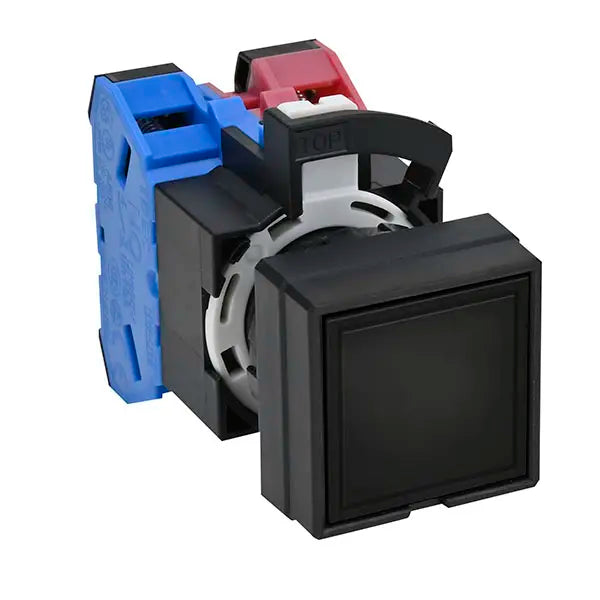

Name: IDEC Ø22 HW Series Pushbutton Switch, Square Flush, HW2B
Brand: IDEC
SKU: HW2B-A101B
Price: 19.99 USD

IDEC Ø22 HW Series Pushbutton Switch, Square Flush, HW2B

VendorIDEC

Description

IDEC HW2B — Ø22 HW Series Pushbutton Switch, Square Flush, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

Genuine IDEC control and signaling device
Select by mounting hole size, shape, color, contacts and LED voltage
Full range of guards, nameplates and replacement parts

Specifications

Part No.	Type	Protection Rating	Contact Configuration	Button Shape	Terminal Type	Button Color	Operation	Terminal Screw	Storage Temperature (℃)	Operating Ambient Temperature (℃)	Mounting Hole Diameter (Ømm)	Operating Ambient Humidity
HW2B-A101B	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A101G	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A101R	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A101S	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A101W	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A101Y	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A102B	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A102G	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A102R	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A102S	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A102W	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A102Y	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A110B	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A110G	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A110R	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A110S	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A110W	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A110Y	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A111B	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A111G	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A111R	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A111S	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A111W	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A111Y	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A120B	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A120G	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A120R	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A120S	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A120W	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A120Y	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A122B	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A122G	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A122R	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A122S	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A122W	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-A122Y	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M101B	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M101G	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M101R	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M101S	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M101W	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M101Y	Non-Illuminated	IP65	1b	Square (Flush)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M102B	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M102G	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M102R	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M102S	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M102W	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M102Y	Non-Illuminated	IP65	2b	Square (Flush)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M104R	Non-Illuminated	IP65	4b	Square (Flush)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M110B	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M110G	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M110R	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M110S	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M110W	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M110Y	Non-Illuminated	IP65	1a	Square (Flush)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M111B	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M111G	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M111R	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M111S	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M111W	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M111Y	Non-Illuminated	IP65	1a1b	Square (Flush)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M120B	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M120G	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M120R	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M120S	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M120W	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M120Y	Non-Illuminated	IP65	2a	Square (Flush)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M122B	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M122G	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M122R	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M122S	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M122W	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M122Y	Non-Illuminated	IP65	2a2b	Square (Flush)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M130B	Non-Illuminated	IP65	3a	Square (Flush)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M130S	Non-Illuminated	IP65	3a	Square (Flush)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M130W	Non-Illuminated	IP65	3a	Square (Flush)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M130Y	Non-Illuminated	IP65	3a	Square (Flush)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M140B	Non-Illuminated	IP65	4a	Square (Flush)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M140S	Non-Illuminated	IP65	4a	Square (Flush)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW2B-M140W	Non-Illuminated	IP65	4a	Square (Flush)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
