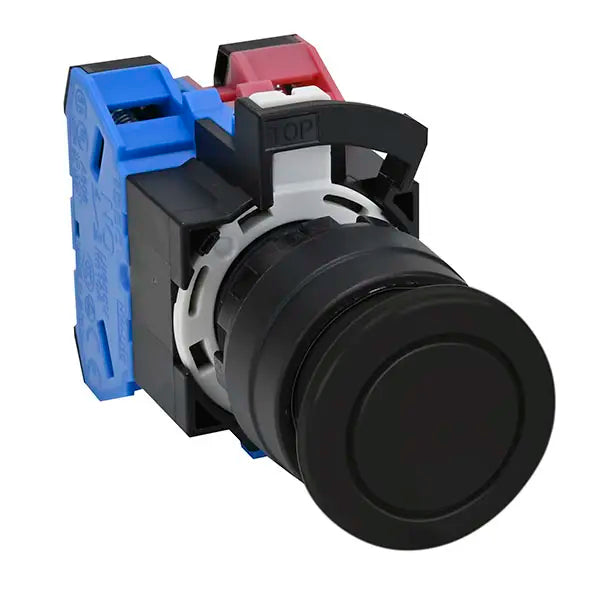

Name: IDEC Ø22 HW Series Pushbutton Switch, Medium, HW1B
Brand: IDEC
SKU: HW1B-A301B
Price: 19.22 USD

IDEC Ø22 HW Series Pushbutton Switch, Medium, HW1B

VendorIDEC

Description

IDEC HW1B — Ø22 HW Series Pushbutton Switch, Medium, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

Genuine IDEC control and signaling device
Select by mounting hole size, shape, color, contacts and LED voltage
Full range of guards, nameplates and replacement parts

Specifications

Part No.	Type	Protection Rating	Contact Configuration	Button Shape	Terminal Type	Button Color	Operation	Terminal Screw	Storage Temperature (℃)	Operating Ambient Temperature (℃)	Mounting Hole Diameter (Ømm)	Operating Ambient Humidity
HW1B-A301B	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A301G	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A301R	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A301S	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A301W	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A301Y	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A302B	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A302G	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A302R	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A302R-MAU	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A302S	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A302W	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A302Y	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A310B	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A310G	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A310R	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A310S	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A310W	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A310Y	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A311B	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A311G	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A311R	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A311S	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A311W	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A311Y	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A320B	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A320G	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A320R	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A320S	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A320W	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A320Y	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A322B	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A322G	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A322R	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A322S	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A322W	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M301B	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M301G	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M301R	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M301S	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M301W	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M302B	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M302G	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M302R	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M302S	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M302W	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M302Y	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M310B	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M310B-MAU	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M310G	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M310R	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M310S	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M310W	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M310Y	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M311B	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M311G	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M311R	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M311S	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M311W	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M311Y	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M320B	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M320G	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M320R	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M320S	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M320W	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M320Y	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M322B	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M322G	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M322R	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M322S	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M322W	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M322Y	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
