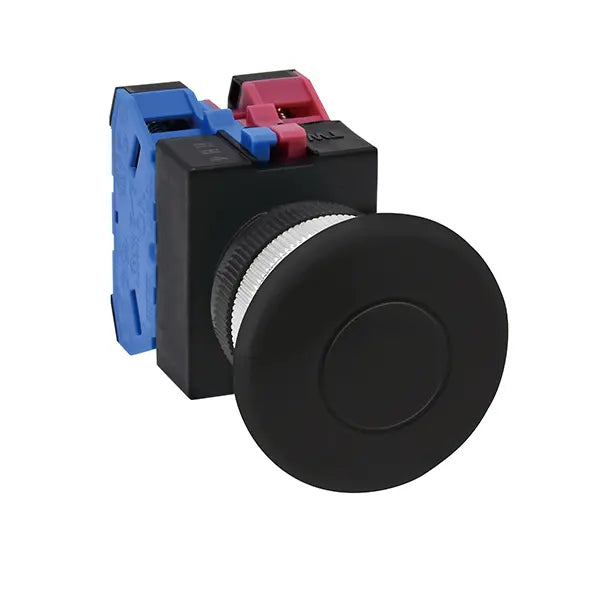

Name: IDEC Ø22 TW Series Pushbutton Switch (Large)
Brand: IDEC
SKU: ABW401B
Price: 12.3 USD

IDEC Ø22 TW Series Pushbutton Switch (Large)

VendorIDEC

Description

IDEC A — Ø22 TW Series Pushbutton Switch (Large), genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

Genuine IDEC control and signaling device
Select by mounting hole size, shape, color, contacts and LED voltage
Full range of guards, nameplates and replacement parts

Specifications

Part No.	Type	Protection Rating	Contact Configuration	Button Shape	Terminal Type	Button Color	Operation	Terminal Screw	Storage Temperature (℃)	Operating Ambient Temperature (℃)	Mounting Hole Diameter (Ømm)	Operating Ambient Humidity
ABW401B	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW401B-MAU	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW401R-MAU	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW401S	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW402B	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW402G	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW402R	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW402S	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW402W	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW402Y	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW403R	Non-Illuminated	IP65	3b	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW404R	Non-Illuminated	IP65	4b	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW410G-MAU	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW410R-MAU	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW410S-MAU	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW410W	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW411S	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW411W	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW411Y	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW420B	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW420G	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW420R	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW420S	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW420W	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW420Y	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW422B	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW422G	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW422R	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW422S	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW422W	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW422Y	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW401B	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW401G	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW401R	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW401S	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW401W	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW401Y	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW402B	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW402G	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW402R	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW402S	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW402W	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW402Y	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW404R	Non-Illuminated	IP65	4b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW410B	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW410G	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW410R	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW410S	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW410W	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW410Y	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW411B	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW411G	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW411R	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW411S	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW411W	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW411Y	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW412R	Non-Illuminated	IP65	1a2b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW420B	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW420G	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW420R	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW420S	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW420W	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW420Y	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW422B	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW422G	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW422R	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW422S	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW422W	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW422Y	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW440S	Non-Illuminated	IP65	4a	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
