| Part No. |
Shape |
Lens Color |
Rated Voltage (V) |
Lens Shape |
Terminal Type |
Emitting Color |
Light Source |
Mounting Hole Diameter (Ømm) |
Applicable Panel Thickness (mm) |

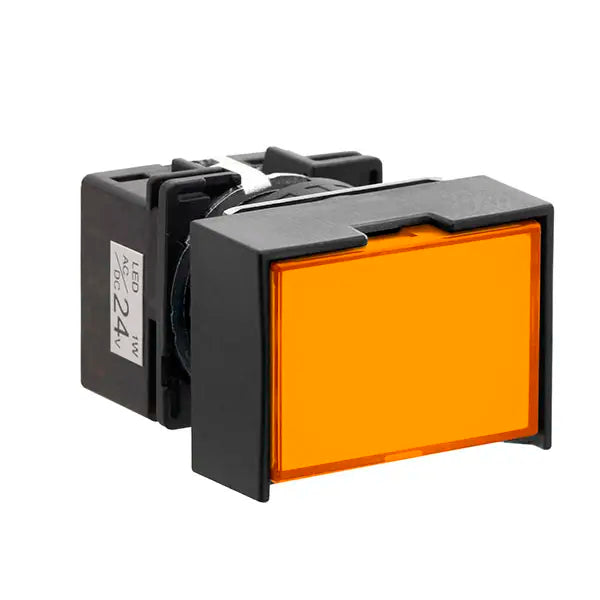

| LB4P-1T01A |
Rectangular |
Amber |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Amber |
LED |
16 |
0.5～3.2 |
| LB4P-1T01G |
Rectangular |
Green |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Green |
LED |
16 |
0.5～3.2 |
| LB4P-1T01PW |
Rectangular |
Pure White |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Pure White |
LED |
16 |
0.5～3.2 |
| LB4P-1T01R |
Rectangular |
Red |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Red |
LED |
16 |
0.5～3.2 |
| LB4P-1T01S |
Rectangular |
Blue |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Blue |
LED |
16 |
0.5～3.2 |
| LB4P-1T01VA |
Rectangular |
Amber |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Amber |
LED |
16 |
0.5～3.2 |
| LB4P-1T01VG |
Rectangular |
Green |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Green |
LED |
16 |
0.5～3.2 |
| LB4P-1T01VPW |
Rectangular |
Pure White |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Pure White |
LED |
16 |
0.5～3.2 |
| LB4P-1T01VR |
Rectangular |
Red |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Red |
LED |
16 |
0.5～3.2 |
| LB4P-1T01VS |
Rectangular |
Blue |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Blue |
LED |
16 |
0.5～3.2 |
| LB4P-1T01VY |
Rectangular |
Yellow |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Yellow |
LED |
16 |
0.5～3.2 |
| LB4P-1T01Y |
Rectangular |
Yellow |
DC5 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Yellow |
LED |
16 |
0.5～3.2 |
| LB4P-1T03A |
Rectangular |
Amber |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Amber |
LED |
16 |
0.5～3.2 |
| LB4P-1T03G |
Rectangular |
Green |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Green |
LED |
16 |
0.5～3.2 |
| LB4P-1T03PW |
Rectangular |
Pure White |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Pure White |
LED |
16 |
0.5～3.2 |
| LB4P-1T03R |
Rectangular |
Red |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Red |
LED |
16 |
0.5～3.2 |
| LB4P-1T03S |
Rectangular |
Blue |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Blue |
LED |
16 |
0.5～3.2 |
| LB4P-1T03VA |
Rectangular |
Amber |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Amber |
LED |
16 |
0.5～3.2 |
| LB4P-1T03VG |
Rectangular |
Green |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Green |
LED |
16 |
0.5～3.2 |
| LB4P-1T03VPW |
Rectangular |
Pure White |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Pure White |
LED |
16 |
0.5～3.2 |
| LB4P-1T03VR |
Rectangular |
Red |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Red |
LED |
16 |
0.5～3.2 |
| LB4P-1T03VS |
Rectangular |
Blue |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Blue |
LED |
16 |
0.5～3.2 |
| LB4P-1T03VY |
Rectangular |
Yellow |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Yellow |
LED |
16 |
0.5～3.2 |
| LB4P-1T03Y |
Rectangular |
Yellow |
AC/DC12 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Yellow |
LED |
16 |
0.5～3.2 |
| LB4P-1T04A |
Rectangular |
Amber |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Amber |
LED |
16 |
0.5～3.2 |
| LB4P-1T04G |
Rectangular |
Green |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Green |
LED |
16 |
0.5～3.2 |
| LB4P-1T04PW |
Rectangular |
Pure White |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Pure White |
LED |
16 |
0.5～3.2 |
| LB4P-1T04R |
Rectangular |
Red |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Red |
LED |
16 |
0.5～3.2 |
| LB4P-1T04S |
Rectangular |
Blue |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Blue |
LED |
16 |
0.5～3.2 |
| LB4P-1T04VA |
Rectangular |
Amber |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Amber |
LED |
16 |
0.5～3.2 |
| LB4P-1T04VG |
Rectangular |
Green |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Green |
LED |
16 |
0.5～3.2 |
| LB4P-1T04VPW |
Rectangular |
Pure White |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Pure White |
LED |
16 |
0.5～3.2 |
| LB4P-1T04VR |
Rectangular |
Red |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Red |
LED |
16 |
0.5～3.2 |
| LB4P-1T04VS |
Rectangular |
Blue |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Blue |
LED |
16 |
0.5～3.2 |
| LB4P-1T04VY |
Rectangular |
Yellow |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
PCB Terminal |
Yellow |
LED |
16 |
0.5～3.2 |
| LB4P-1T04Y |
Rectangular |
Yellow |
AC/DC24 |
Rectangular with 3-Side Barrier (18×24) |
Solder/Tab Terminal Type |
Yellow |
LED |
16 |
0.5～3.2 |
Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
