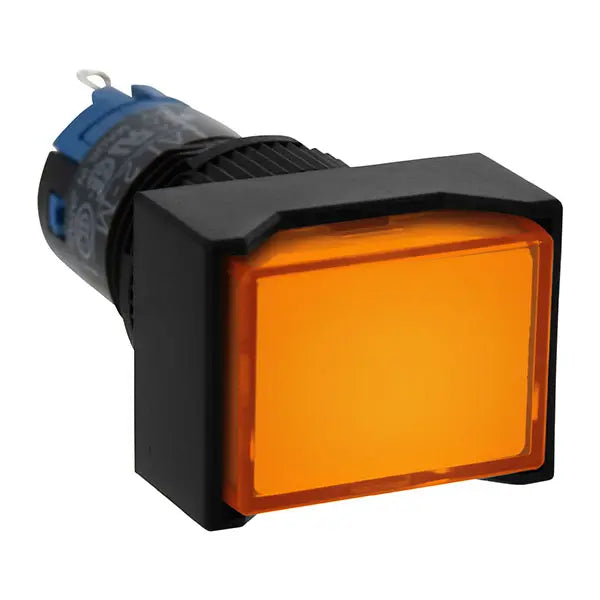

IDEC Ø12 A2 Series Illuminated Pushbutton (Rectangular), AL2H - AL2H-A11A

Description

IDEC AL2H — Ø12 A2 Series Illuminated Pushbutton (Rectangular), genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

  • Genuine IDEC control and signaling device
  • Select by mounting hole size, shape, color, contacts and LED voltage
  • Full range of guards, nameplates and replacement parts

Specifications

Part No. Type Protection Rating Contact Configuration Button Shape Terminal Type Operation Illumination Type Mounting Hole Diameter (Ømm) Rated Operational Voltage (V) Illumination Color
AL2H-A11A Illuminated IP40 1c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Amber
AL2H-A11PA Illuminated IP65 1c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Amber
AL2H-A11PG Illuminated IP65 1c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Green
AL2H-A11PR Illuminated IP65 1c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Red
AL2H-A11PY Illuminated IP65 1c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Yellow
AL2H-A11R Illuminated IP40 1c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Red
AL2H-A11Y Illuminated IP40 1c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Yellow
AL2H-A21A Illuminated IP40 2c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Amber
AL2H-A21G Illuminated IP40 2c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Green
AL2H-A21PA Illuminated IP65 2c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Amber
AL2H-A21PG Illuminated IP65 2c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Green
AL2H-A21PR Illuminated IP65 2c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Red
AL2H-A21PY Illuminated IP65 2c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Yellow
AL2H-A21R Illuminated IP40 2c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Red
AL2H-A21Y Illuminated IP40 2c Rectangular Solder Terminal Maintained LED 12 DC5/6/12/24 Yellow
AL2H-M11A Illuminated IP40 1c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Amber
AL2H-M11PA Illuminated IP65 1c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Amber
AL2H-M11PG Illuminated IP65 1c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Green
AL2H-M11PR Illuminated IP65 1c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Red
AL2H-M11PY Illuminated IP65 1c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Yellow
AL2H-M21A Illuminated IP40 2c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Amber
AL2H-M21G Illuminated IP40 2c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Green
AL2H-M21PA Illuminated IP65 2c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Amber
AL2H-M21PG Illuminated IP65 2c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Green
AL2H-M21PR Illuminated IP65 2c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Red
AL2H-M21PY Illuminated IP65 2c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Yellow
AL2H-M21R Illuminated IP40 2c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Red
AL2H-M21Y Illuminated IP40 2c Rectangular Solder Terminal Momentary LED 12 DC5/6/12/24 Yellow

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

  • Genuine IDEC product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

IDEC AL2H — Ø12 A2 Series Illuminated Pushbutton (Rectangular), genuine IDEC product.OverviewIDEC control and signaling devices, including pushbuttons, illuminated pushbuttons,... Read more

SKU: AL2H-A11A

$14.61 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
